Two-Way Radio Microphone

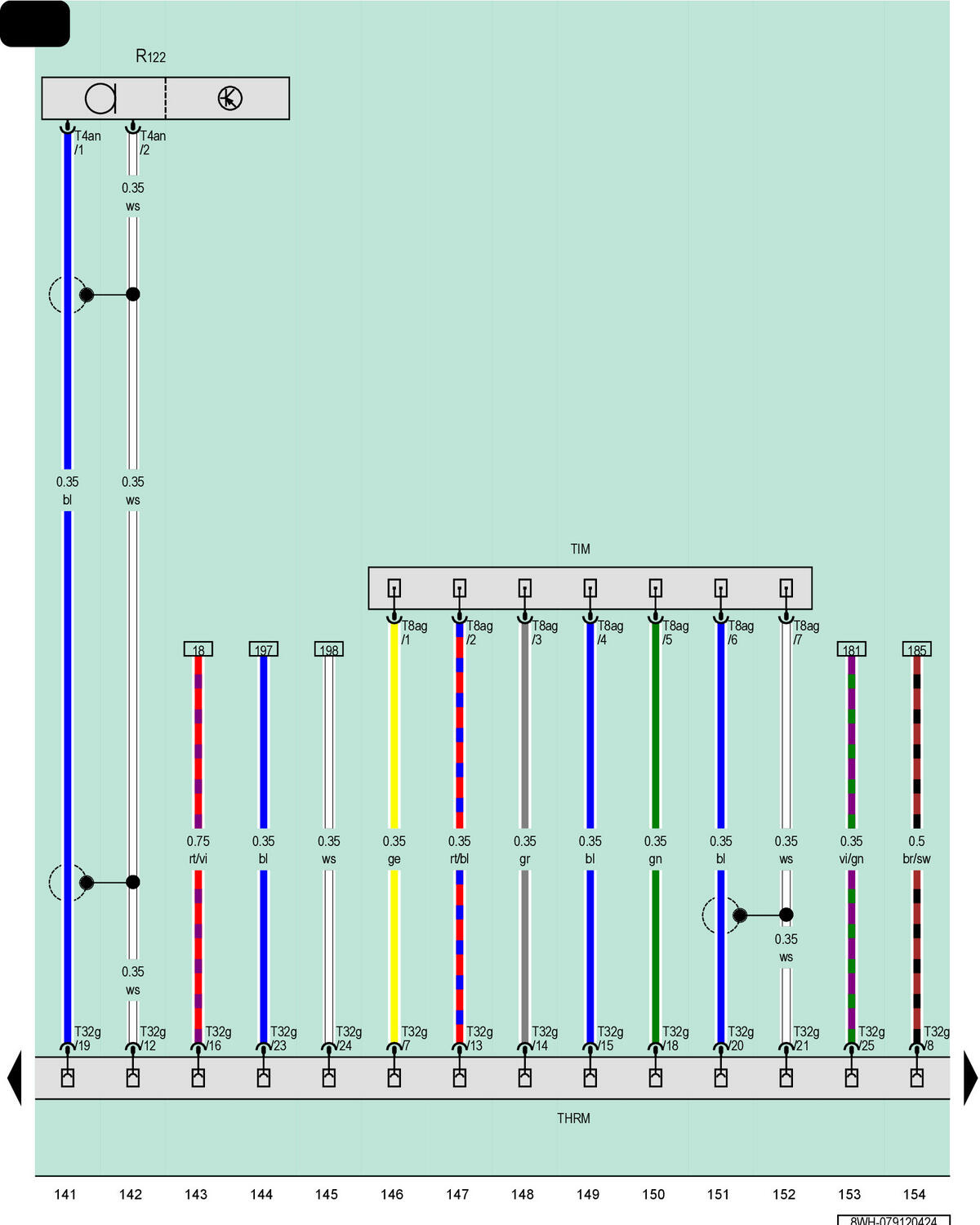

GWW8WH-079120424Courtesy of AUDI OF AMERICA, LLC

R122

Two-Way Radio Microphone

T4an

4-Pin Connector, Black

T8ag

8-Pin Connector, Black

T32g

32-Pin Connector, Black

THRM

Coupling Point in Luggage Compartment, Center

TIM

Coupling Point in Interior, Center
