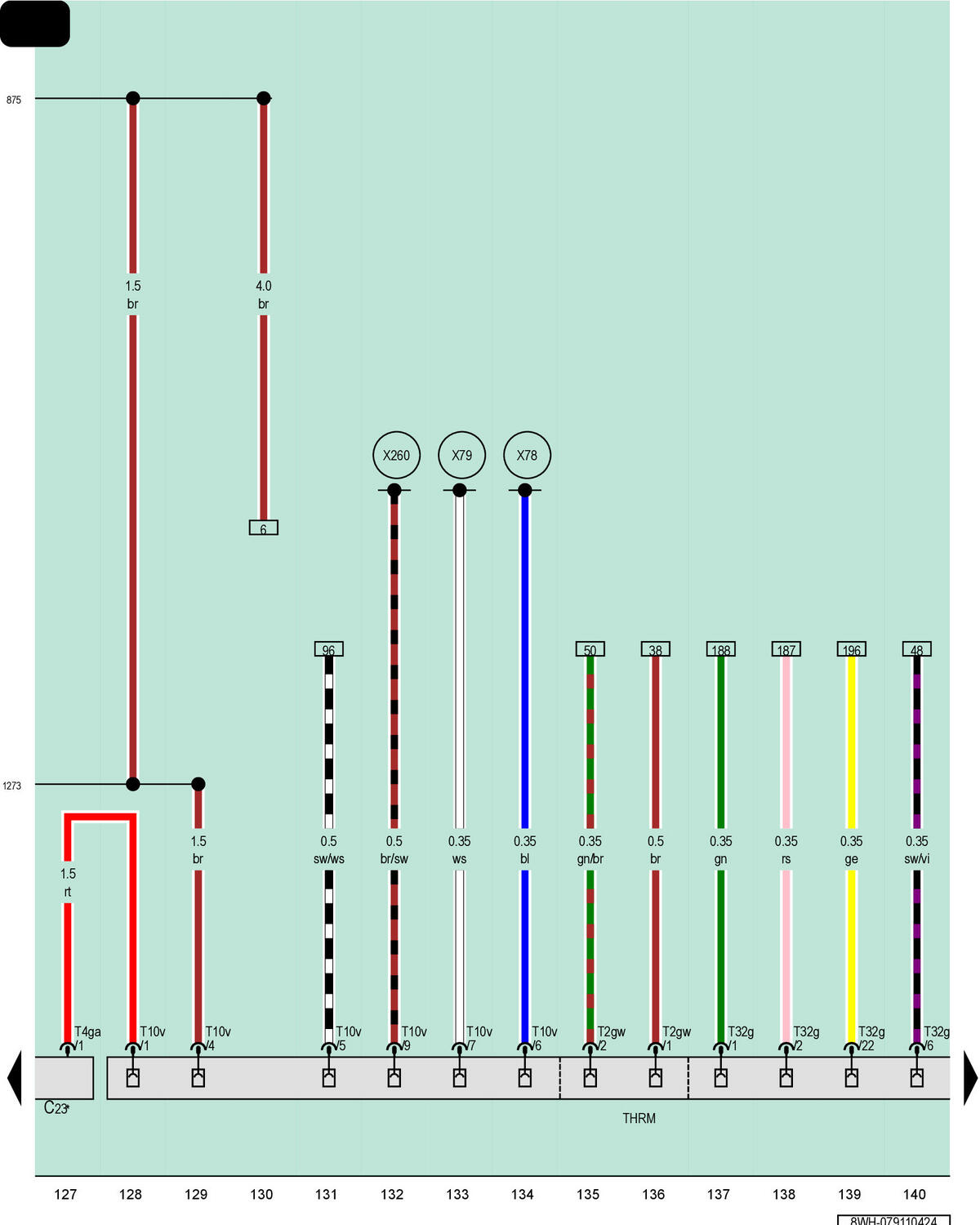

Two-Way Radio Cut-Off Relay 2 (2 Of 2)
C23
Signal/Radio System Suppression Choke
T2gw
2-Pin Connector, Brown
T4ga
4-Pin Connector, Black
T10v
10-Pin Connector, Black
T32g
32-Pin Connector, Black
THRM
Coupling Point in Luggage Compartment, Center
875
Ground Connection 12 (in Special Purpose Vehicle Wiring Harness)
1273
Ground Connection 10 (in Special Purpose Vehicle Wiring Harness)
X78
Connection 1 (in Optional Equipment Wiring Harness)
X79
Connection 2 (in Optional Equipment Wiring Harness)
X260
Positive Connection 16 (in Special Purpose Vehicle Wiring Harness)
*
Two-Way Radio 1
