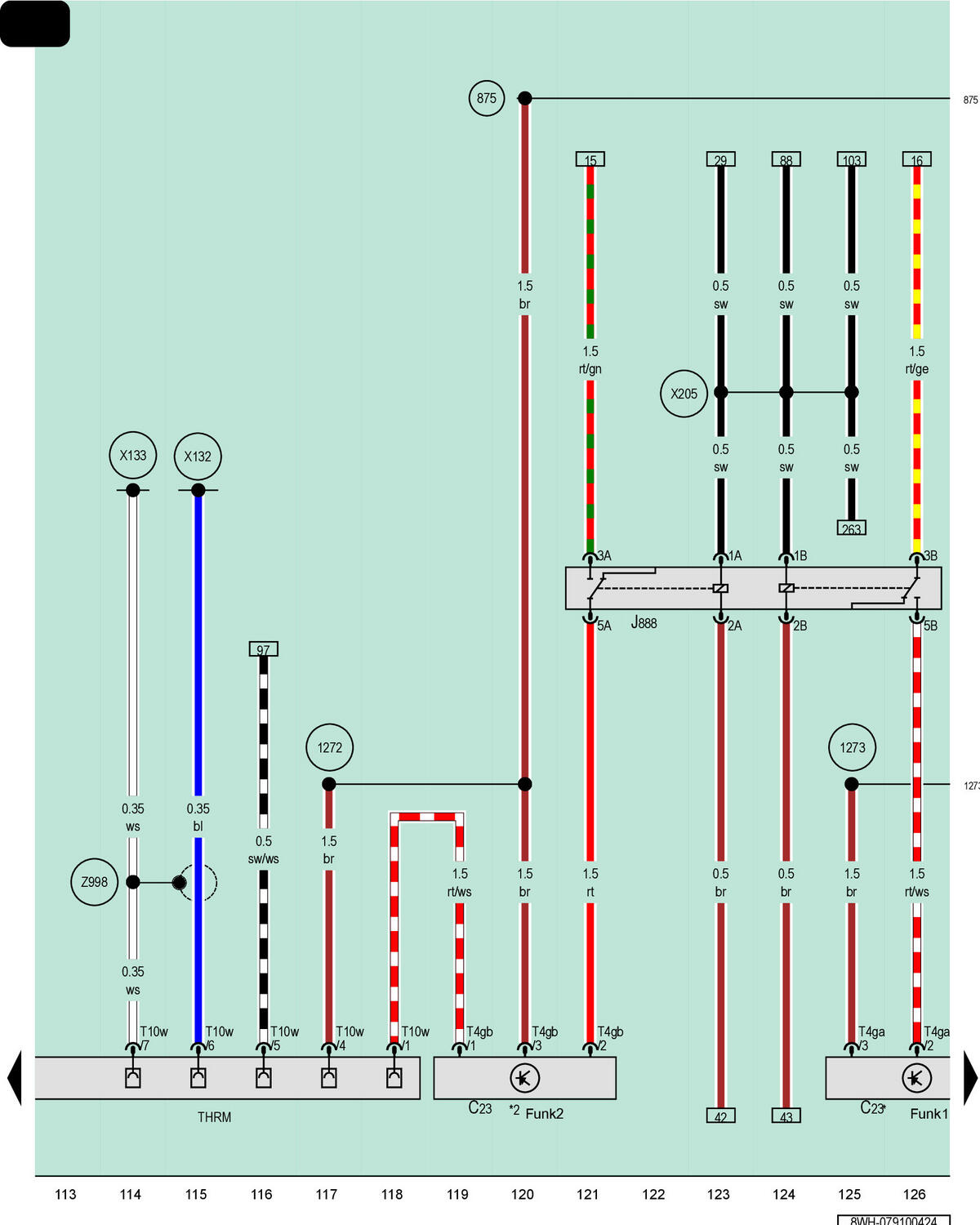

Two-Way Radio Cut-Off Relay 2 (1 Of 2)
C23
Signal/Radio System Suppression Choke
J888
Two-Way Radio Cut-Off Relay 2
T4ga
4-Pin Connector, Black
T4gb
4-Pin Connector, Black
T10w
10-Pin Connector, Black
THRM
Coupling Point in Luggage Compartment, Center
875
Ground Connection 12 (in Special Purpose Vehicle Wiring Harness)
1272
Ground Connection 9 (in Special Purpose Vehicle Wiring Harness)
1273
Ground Connection 10 (in Special Purpose Vehicle Wiring Harness)
X132
Connection 5 (in Optional Equipment Wiring Harness)
X133
Connection 6 (in Optional Equipment Wiring Harness)
X205
Connection 1 (15a) (in Special Purpose Vehicle Wiring Harness)
Z998
Cable Shield
*
Two-Way Radio 1
*2
Two-Way Radio 2
