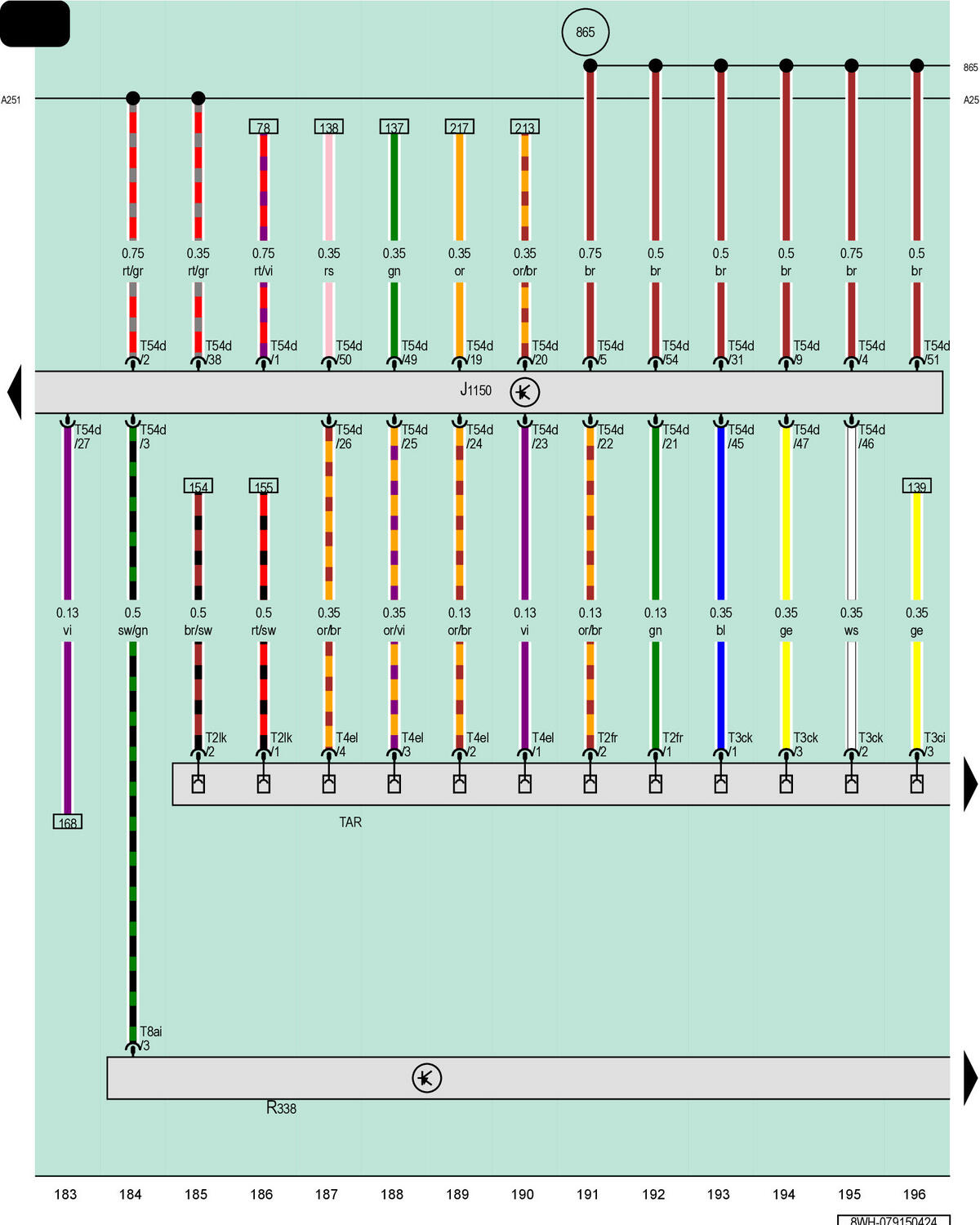

Special Purpose Vehicle Resource Assistant, Special Purpose Vehicle Resource Assistant Connection
J1150
Special Purpose Vehicle Resource Assistant
R338
Special Purpose Vehicle Resource Assistant Connection
T2fr
2-Pin Connector, Brown
T2lk
2-Pin Connector, Brown
T3ci
3-Pin Connector, Black
T3ck
3-Pin Connector, Black
T4el
4-Pin Connector, Black
T8ai
8-Pin Connector, Black
T54d
54-Pin Connector, Black
TAR
Coupling Point on Right A-Pillar
865
Ground Connection 2 (in Special Purpose Vehicle Wiring Harness)
A251
Positive Connection 2 (58) (in Special Purpose Vehicle Wiring Harness)
