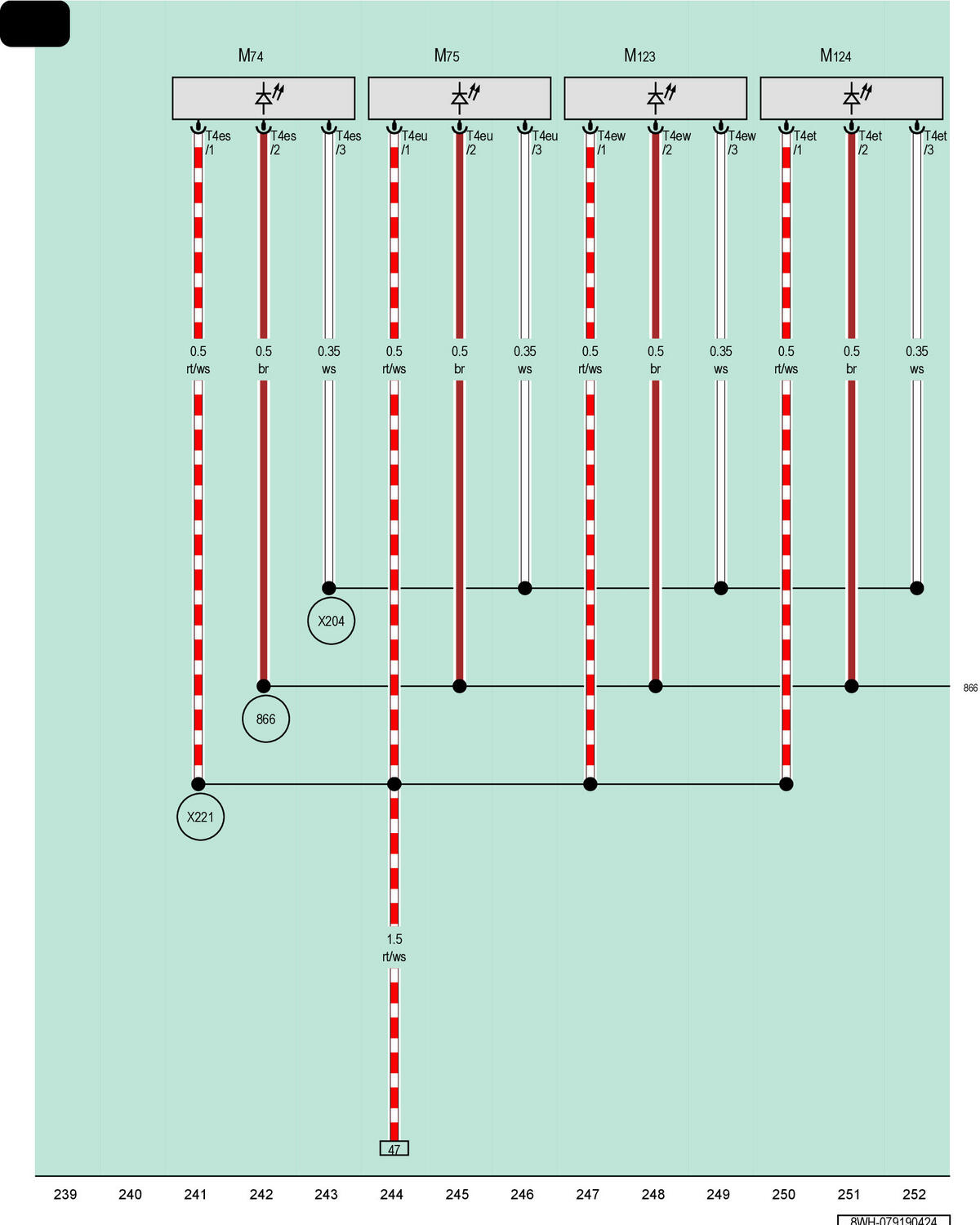

Right Flashing Lamp In Rear Lid

Courtesy of AUDI OF AMERICA, LLC

M74

Right Flashing Lamp in Rear Lid

M75

Left Flashing Lamp in Rear Lid

M123

Left Rear Flashing Lamp

M124

Right Rear Flashing Lamp

T4es

4-Pin Connector, Black

T4et

4-Pin Connector, Black

T4eu

4-Pin Connector, Black

T4ew

4-Pin Connector, Black

866

Ground Connection 3 (in Special Purpose Vehicle Wiring Harness)

X204

Connection 11 (in Optional Equipment Wiring Harness)

X221

Positive Connection 2 (30a) (in Special Purpose Vehicle Wiring Harness)
