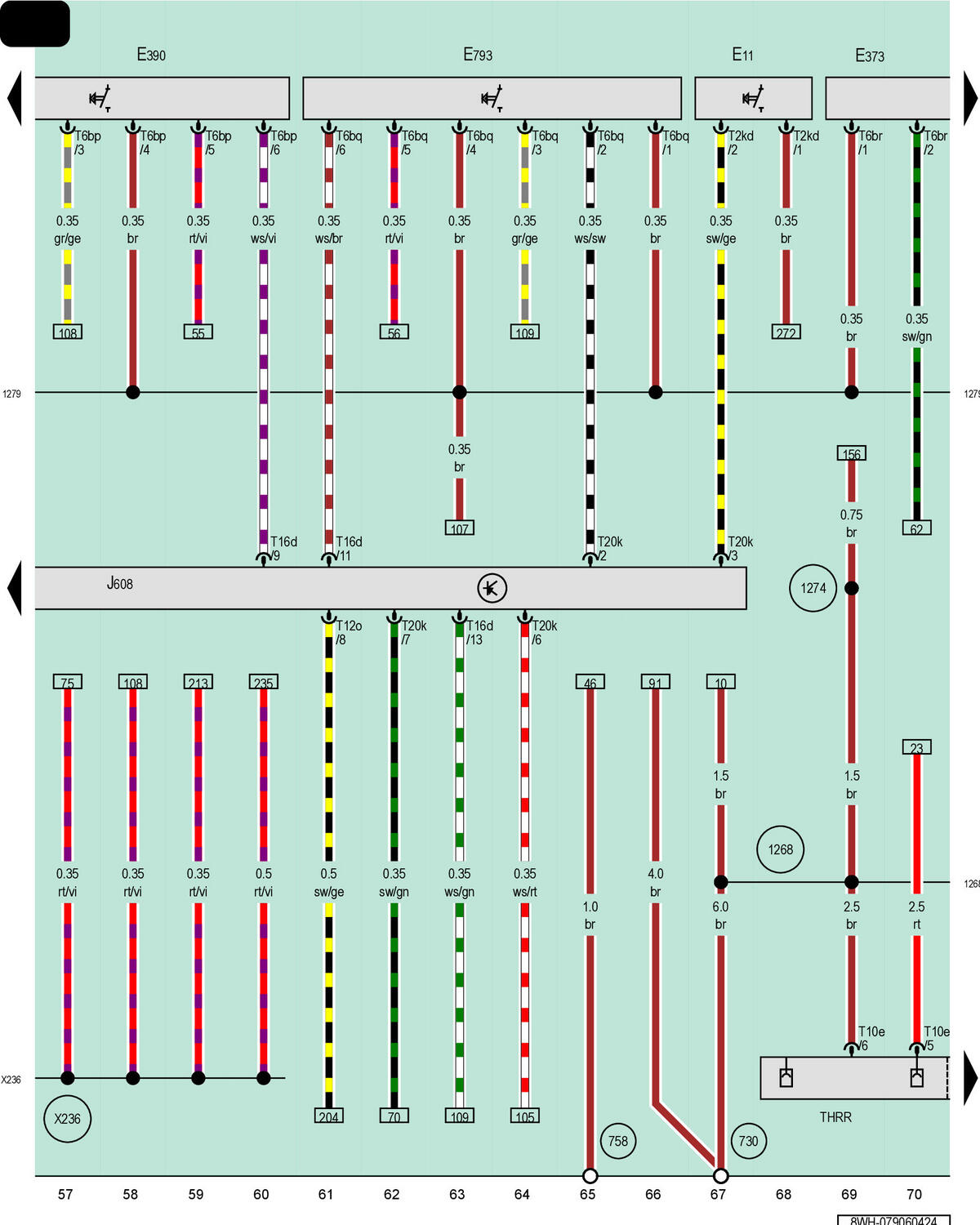

Revolving Roof Lamp And Siren Switch, Flashing Lamp Switch, Central Interior Lighting Switch-Off Button, Two-Way Radio Main Switch, Special Purpose Vehicle Control Module
E11
Revolving Roof Lamp and Siren Switch
E373
Flashing Lamp Switch
E390
Central Interior Lighting Switch-Off Button
E793
Two-Way Radio Main Switch
J608
Special Purpose Vehicle Control Module
T2kd
2-Pin Connector, Green
T6bp
6-Pin Connector, Black
T6bq
6-Pin Connector, Black
T6br
6-Pin Connector, Black
T10e
10-Pin Connector, Black
T12o
12-Pin Connector, Black
T16d
16-Pin Connector, Black
T20k
20-Pin Connector, Black
THRR
Coupling Point in Luggage Compartment, Right
730
Ground Connection 1 on Right Rear Wheel Housing
758
Ground Connection 3 on Center Tunnel
1268
Ground Connection 5 (in Special Purpose Vehicle Wiring Harness)
1274
Ground Connection 11 (in Special Purpose Vehicle Wiring Harness)
1279
Ground Connection 16 (in Special Purpose Vehicle Wiring Harness)
X236
Positive Connection 17 (30a) (in Special Purpose Vehicle Wiring Harness)
