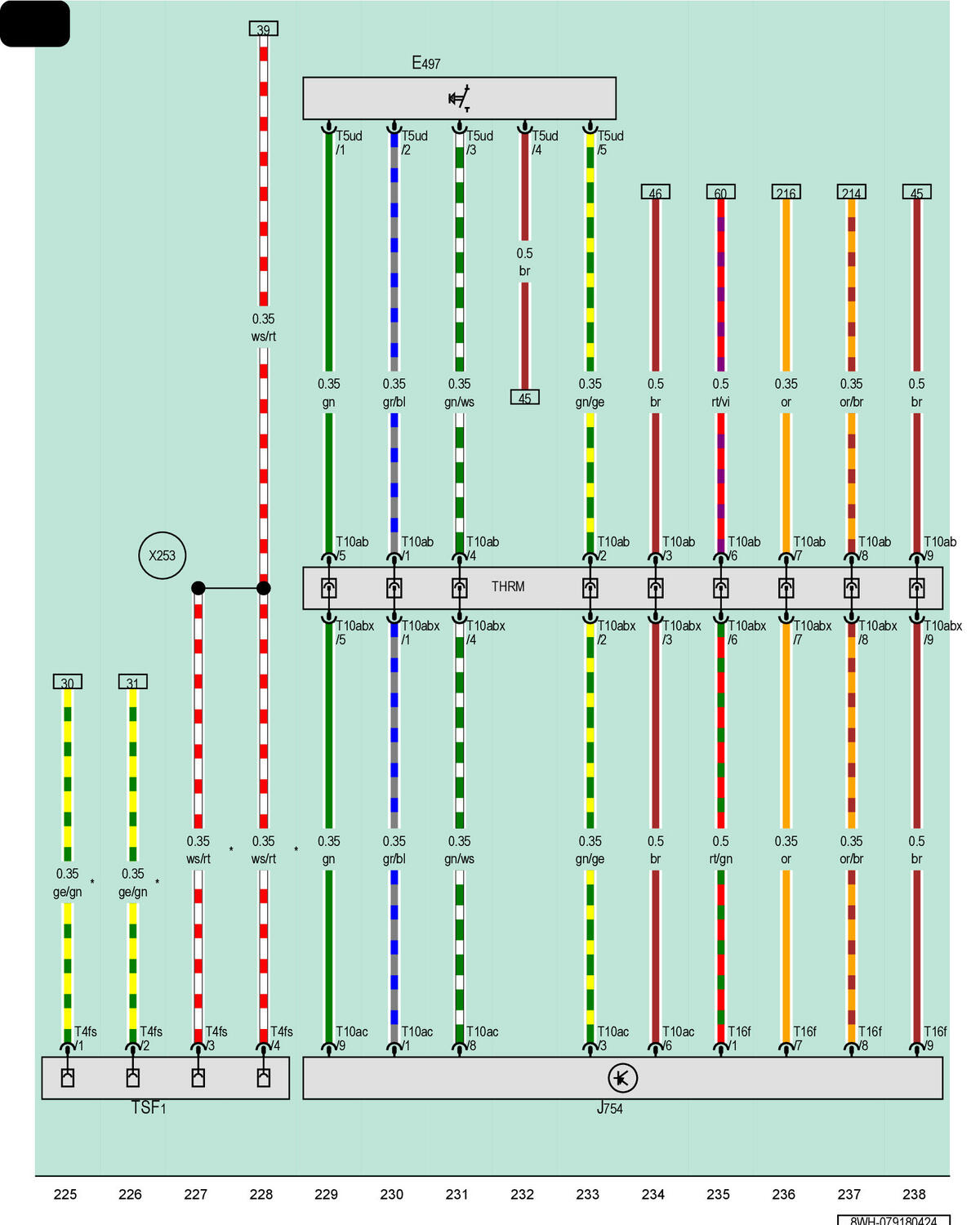

Event Data Recorder Button, Event Data Recorder, Special Purpose Vehicle Coupling Point

Courtesy of AUDI OF AMERICA, LLC

E497

Event Data Recorder Button

J754

Event Data Recorder

T4fs

4-Pin Connector, Black

T5ud

5-Pin Connector, Black

T10ab

10-Pin Connector, Black

T10abx

10-Pin Connector, Black

T10ac

10-Pin Connector, Black

T16f

16-Pin Connector, Black

THRM

Coupling Point in Luggage Compartment, Center

TSF1

Special Purpose Vehicle Coupling Point, In the Center Console

X253

Positive Connection 9 (in Special Purpose Vehicle Wiring Harness)

*

Depending on Equipment
