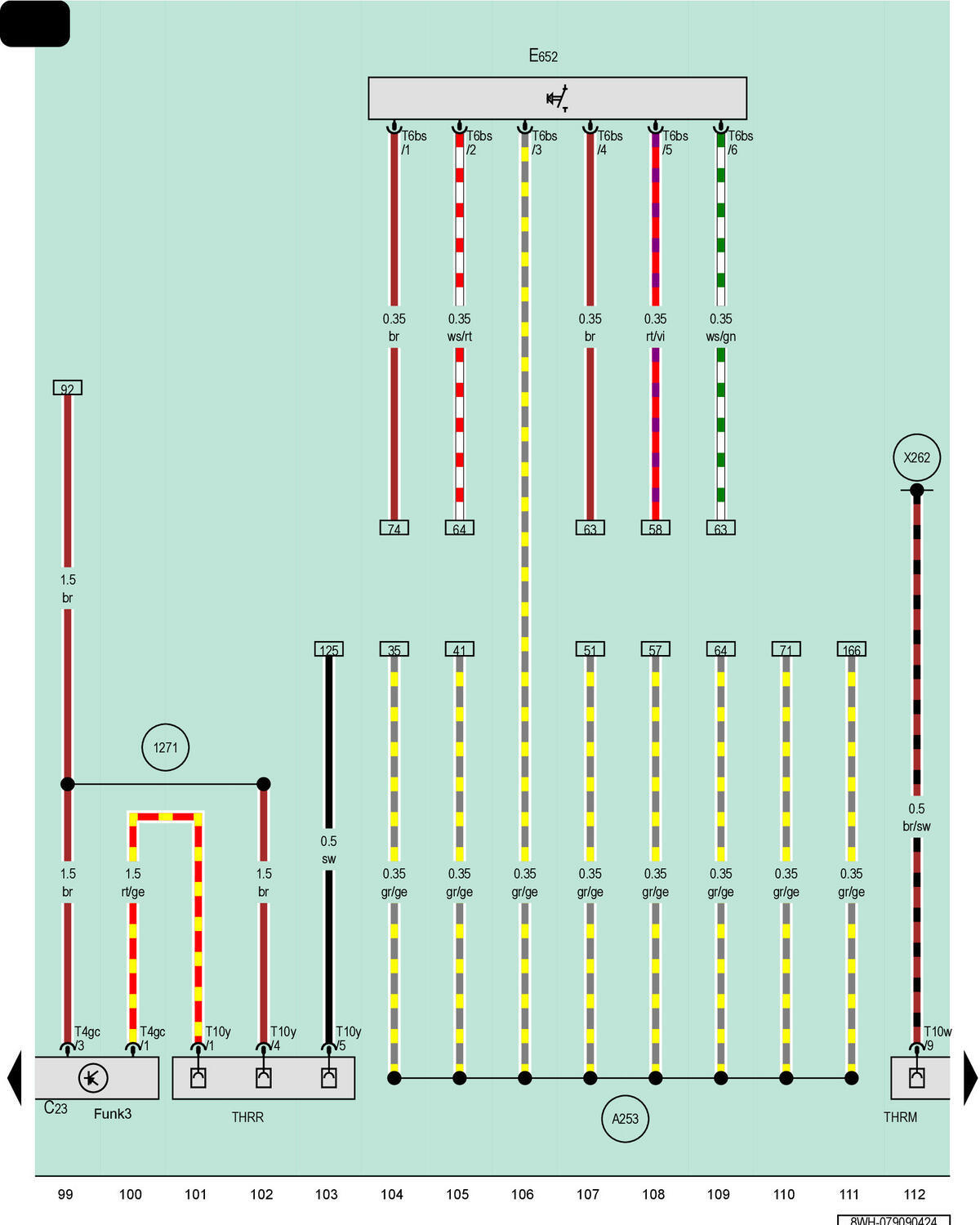

Daytime Running Lamp Deactivation Button

Courtesy of AUDI OF AMERICA, LLC

C23

Signal/Radio System Suppression Choke

E652

Daytime Running Lamp Deactivation Button

T4gc

4-Pin Connector, Black

T6bs

6-Pin Connector, Black

T10w

10-Pin Connector, Black

T10y

10-Pin Connector, Black

THRM

Coupling Point in Luggage Compartment, Center

THRR

Coupling Point in Luggage Compartment, Right

1271

Ground Connection 8 (in Special Purpose Vehicle Wiring Harness)

A253

Positive Connection 4 (58) (in Special Purpose Vehicle Wiring Harness)

X262

Positive Connection 18 (in Special Purpose Vehicle Wiring Harness)
