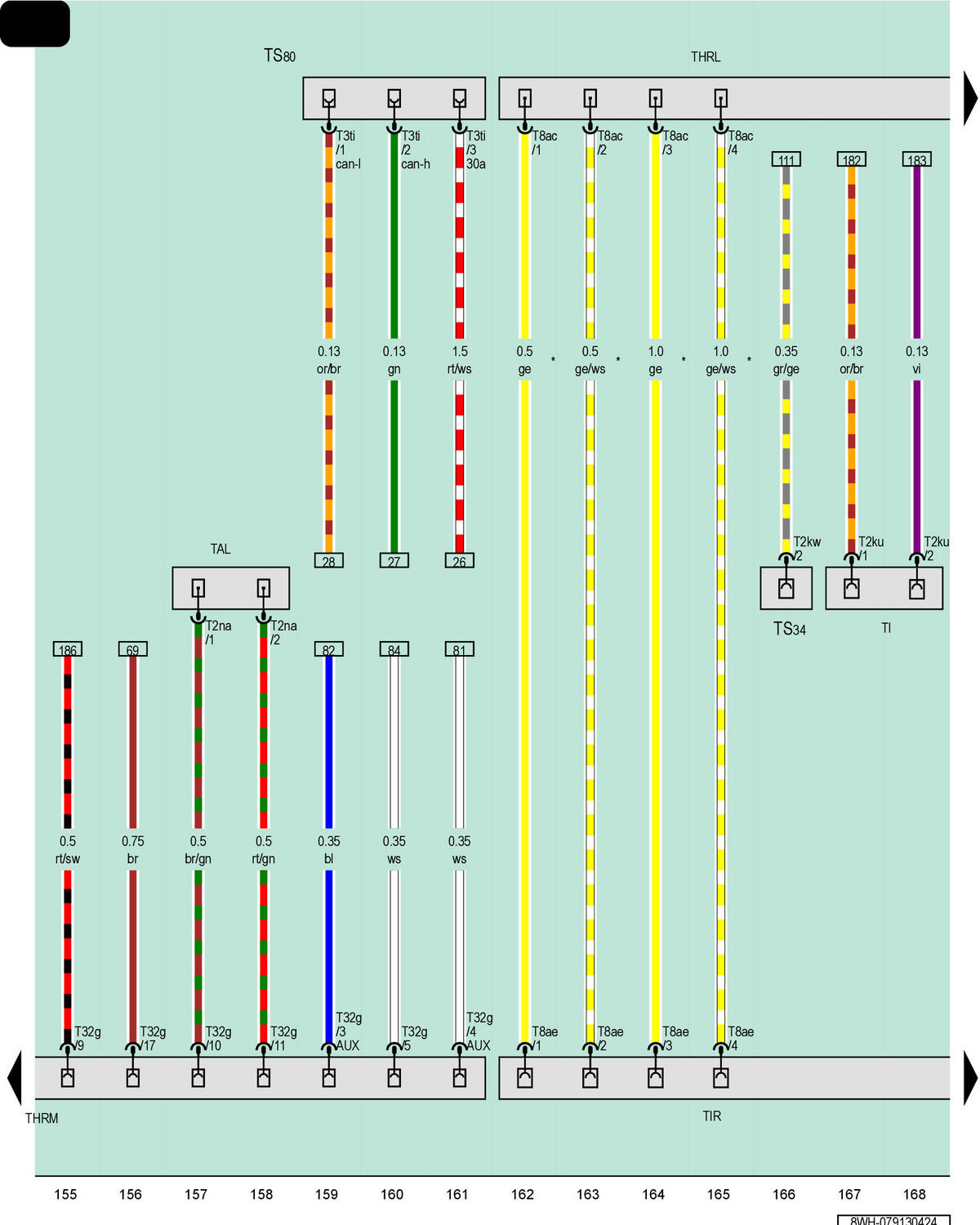

Coupling Point In Interior, Coupling Point In Interior, Right, Coupling Point 1 In Center Console

GWW8WH-079130424Courtesy of AUDI OF AMERICA, LLC

T2ku

2-Pin Connector, Brown

T2kw

2-Pin Connector, Black

T2na

2-Pin Connector, Brown

T3ti

3-Pin Connector, Black

T8ac

8-Pin Connector, Black

T8ae

8-Pin Connector, Black

T32g

32-Pin Connector, Black

TAL

Coupling Point on Left A-Pillar

THRL

Coupling Point in Luggage Compartment, Left

THRM

Coupling Point in Luggage Compartment, Center

TI

Coupling Point in Interior, Near the Rear Bench Seat, Center

TIR

Coupling Point in Interior, Right

TS34

Coupling Point 1 in Center Console

TS80

Coupling Point 1 in Luggage Compartment for Special Purpose Vehicles, On the Relay and Fuse Panel in the Luggage Compartment, Left

*

Rear Spare Line
