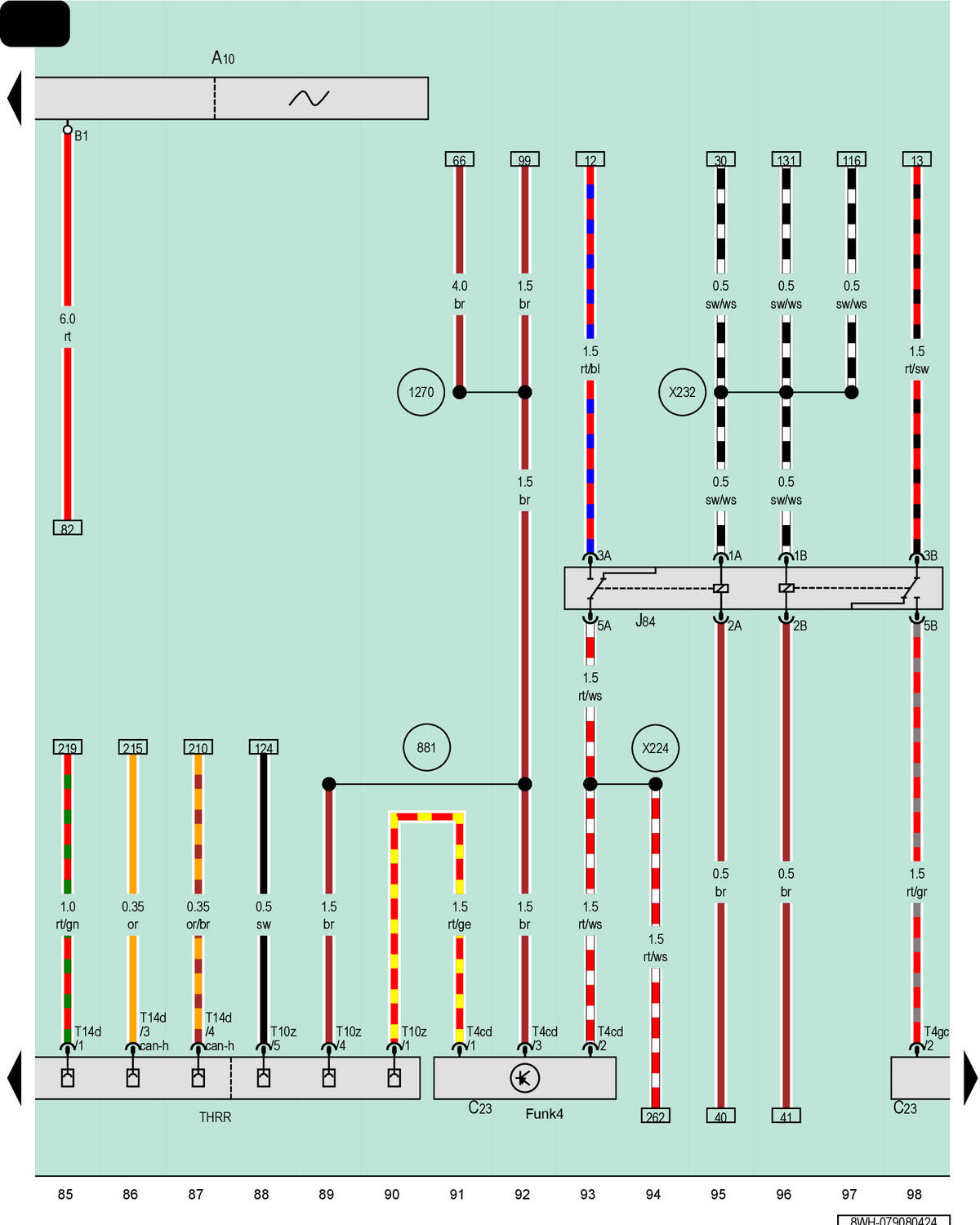

Charger, 230 V Or 110 V/12 V, Two-Way Radio Cut-Off Relay
A10
Charger, 230 V or 110 V/12 V
C23
Signal/Radio System Suppression Choke
J84
Two-Way Radio Cut-Off Relay
T4cd
4-Pin Connector, Black
T4gc
4-Pin Connector, Black
T10z
10-Pin Connector, Black
T14d
14-Pin Connector, Black
THRR
Coupling Point in Luggage Compartment, Right
881
Ground Connection 18 (in Special Purpose Vehicle Wiring Harness)
1270
Ground Connection 7 (in Special Purpose Vehicle Wiring Harness)
X224
Positive Connection 5 (30a) (in Special Purpose Vehicle Wiring Harness)
X232
Positive Connection 13 (30a) (in Special Purpose Vehicle Wiring Harness)
