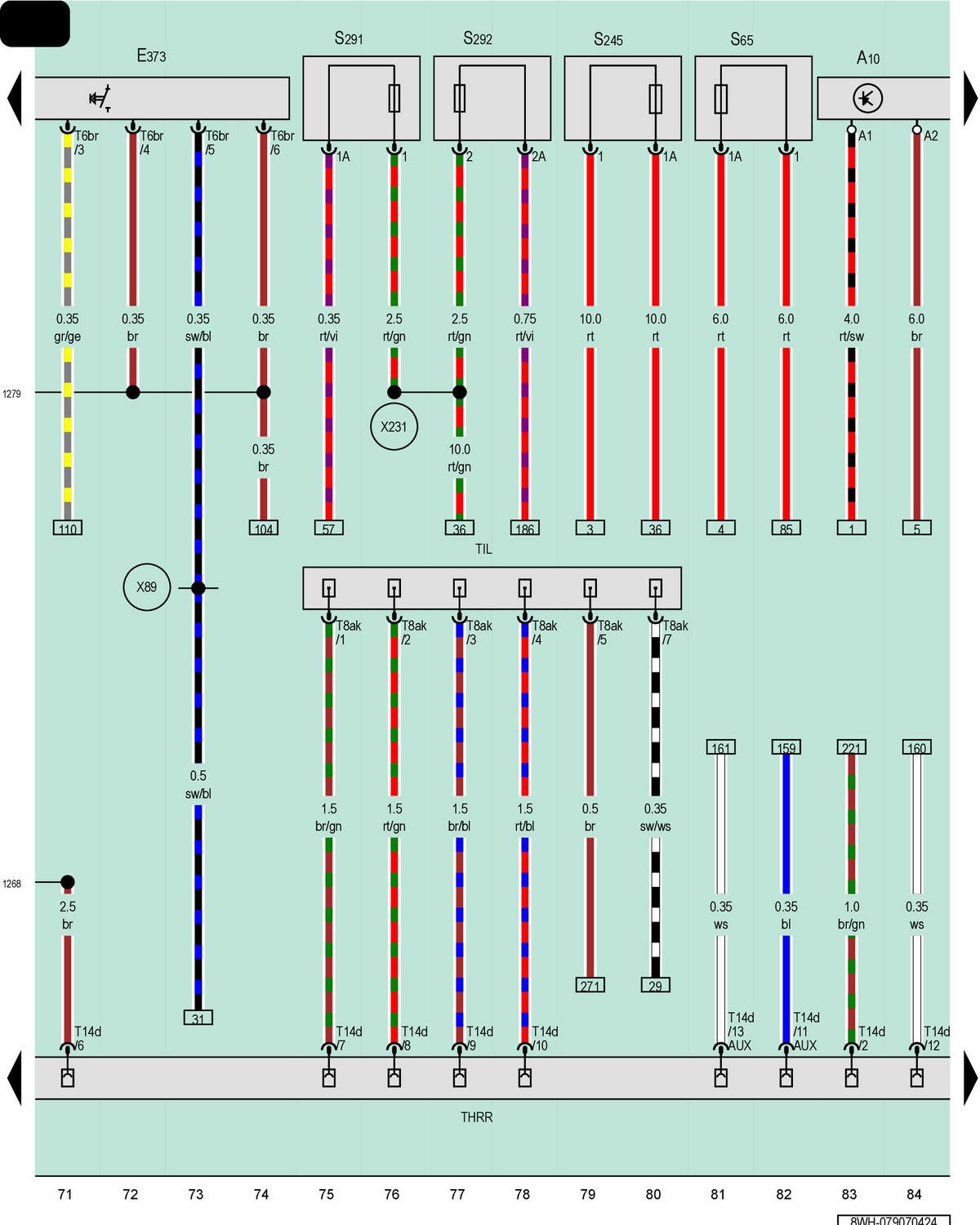

Charger, 230 V Or 110 V/12 V, Flashing Lamp Switch, Special Purpose Vehicle Fuse 1, Special Purpose Vehicle Fuse 2
A10
Charger, 230 V or 110 V/12 V
E373
Flashing Lamp Switch
S65
Auxiliary Battery Fuse
S245
Optional Equipment Main Fuse
S291
Special Purpose Vehicle Fuse 1, On the Relay and Fuse Panel in the Luggage Compartment, Left
S292
Special Purpose Vehicle Fuse 2, On the Relay and Fuse Panel in the Luggage Compartment, Left
T6br
6-Pin Connector, Black
T8ak
8-Pin Connector, Black
T14d
14-Pin Connector, Black
THRR
Coupling Point in Luggage Compartment, Right
TIL
Coupling Point in Interior, Left
1268
Ground Connection 5 (in Special Purpose Vehicle Wiring Harness)
1279
Ground Connection 16 (in Special Purpose Vehicle Wiring Harness)
X89
Blue Lamp Connection 1 (in Optional Equipment Wiring Harness)
X231
Positive Connection 12 (30a) (in Special Purpose Vehicle Wiring Harness)
