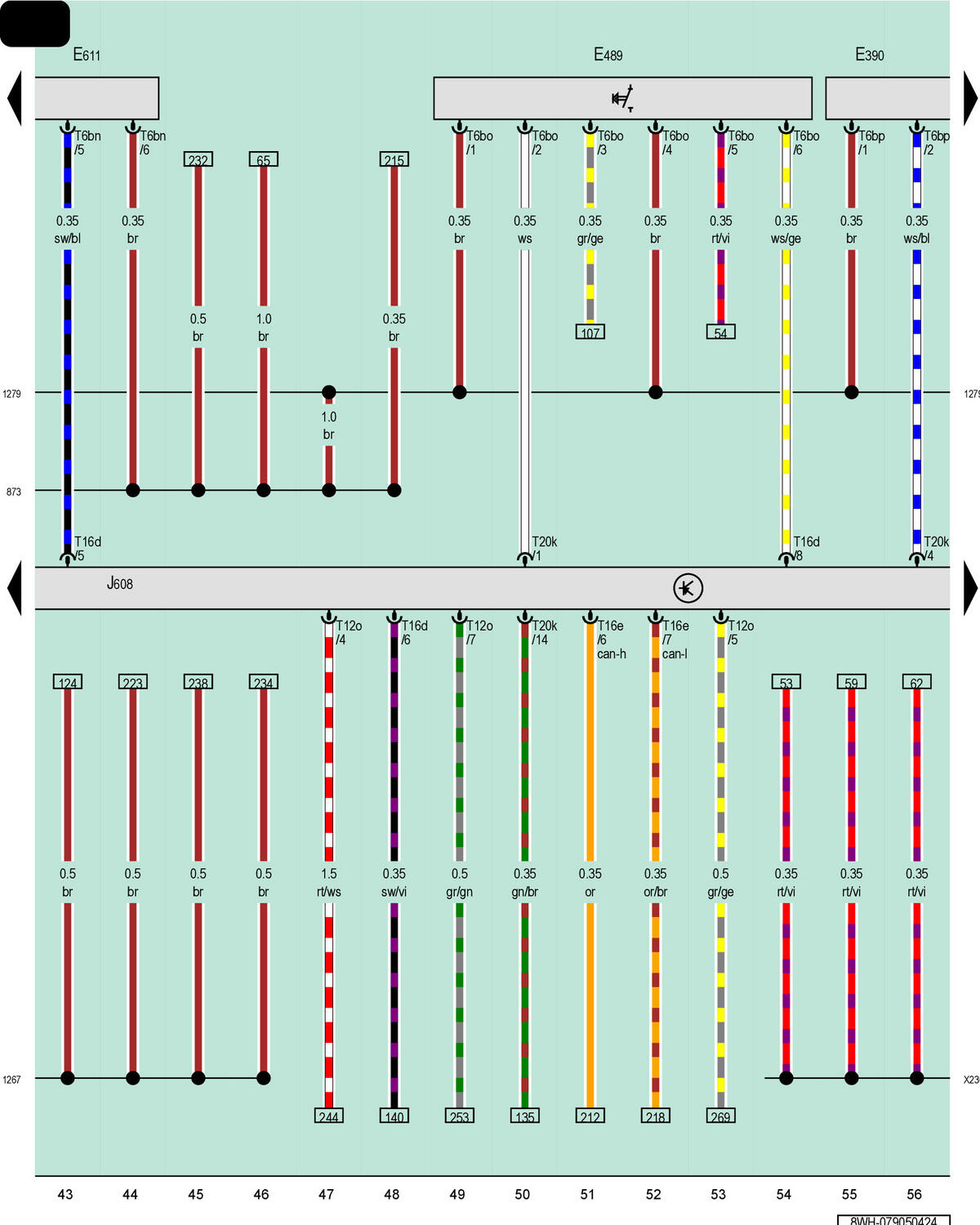

Central Interior Lighting Switch-Off Button, Engine -Run- Button, Video Self-Monitoring Button 2, Special Purpose Vehicle Control Module
E390
Central Interior Lighting Switch-Off Button
E489
Engine -Run- Button
E611
Video Self-Monitoring Button 2
J608
Special Purpose Vehicle Control Module
T6bn
6-Pin Connector, Black
T6bo
6-Pin Connector, Black
T6bp
6-Pin Connector, Black
T12o
12-Pin Connector, Black
T16d
16-Pin Connector, Black
T16e
16-Pin Connector, Black
T20k
20-Pin Connector, Black
873
Ground Connection 10 (in Special Purpose Vehicle Wiring Harness)
1267
Ground Connection 4 (in Special Purpose Vehicle Wiring Harness)
1279
Ground Connection 16 (in Special Purpose Vehicle Wiring Harness)
X236
Positive Connection 17 (30a) (in Special Purpose Vehicle Wiring Harness)
