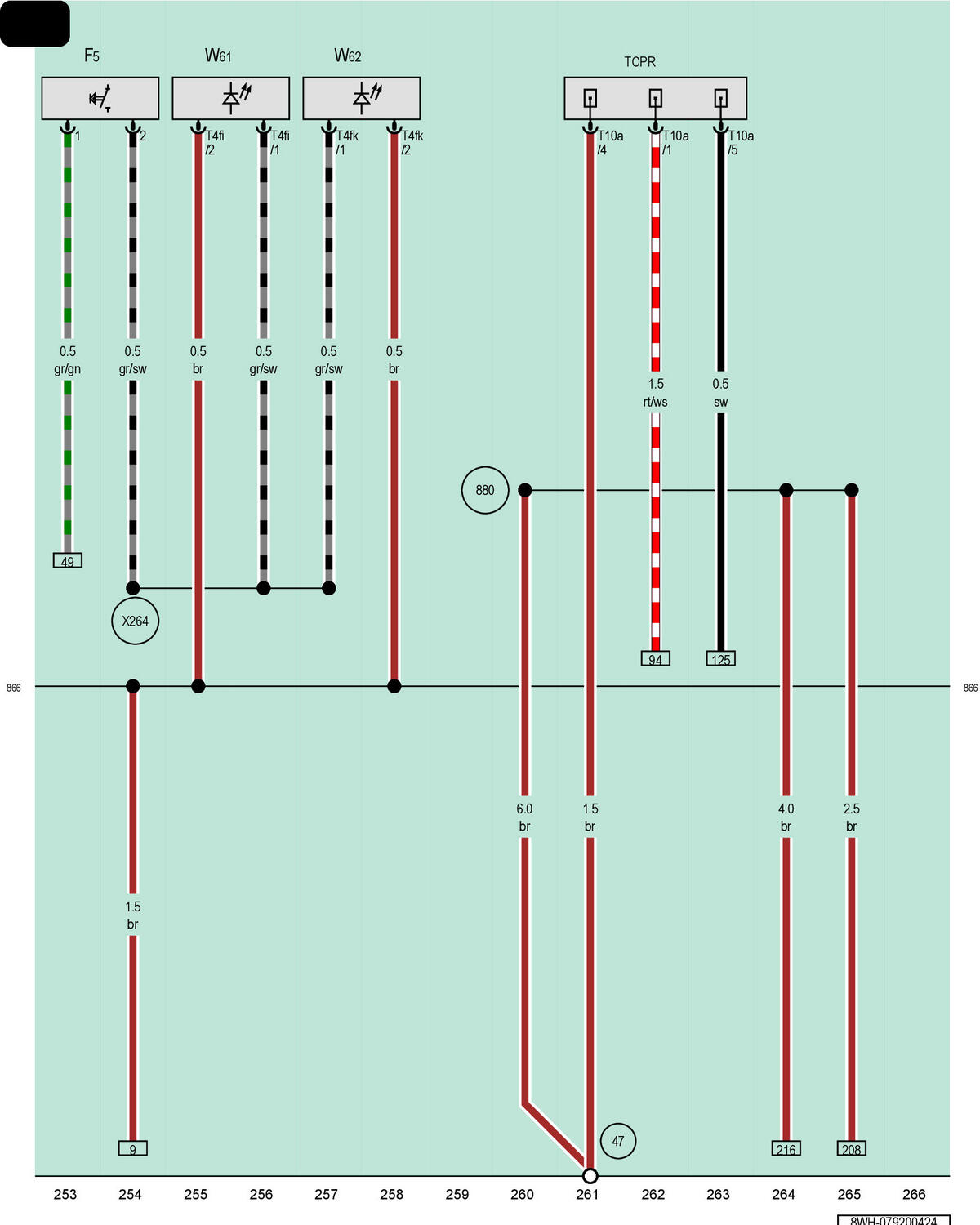

Ambient Lamp 1 In Rear Lid, Ambient Lamp 2 In Rear Lid

Courtesy of AUDI OF AMERICA, LLC

F5

Luggage Compartment Lamp Switch

T4fi

4-Pin Connector, Black

T4fk

4-Pin Connector, Black

T10a

10-Pin Connector, Black

TCPR

Coupling Point on Instrument Panel, Right

W61

Ambient Lamp 1 in Rear Lid

W62

Ambient Lamp 2 in Rear Lid

47

Ground Connection in Right Front Footwell

866

Ground Connection 3 (in Special Purpose Vehicle Wiring Harness)

880

Ground Connection 17 (in Special Purpose Vehicle Wiring Harness)

X264

Positive Connection 20 (in Special Purpose Vehicle Wiring Harness)
