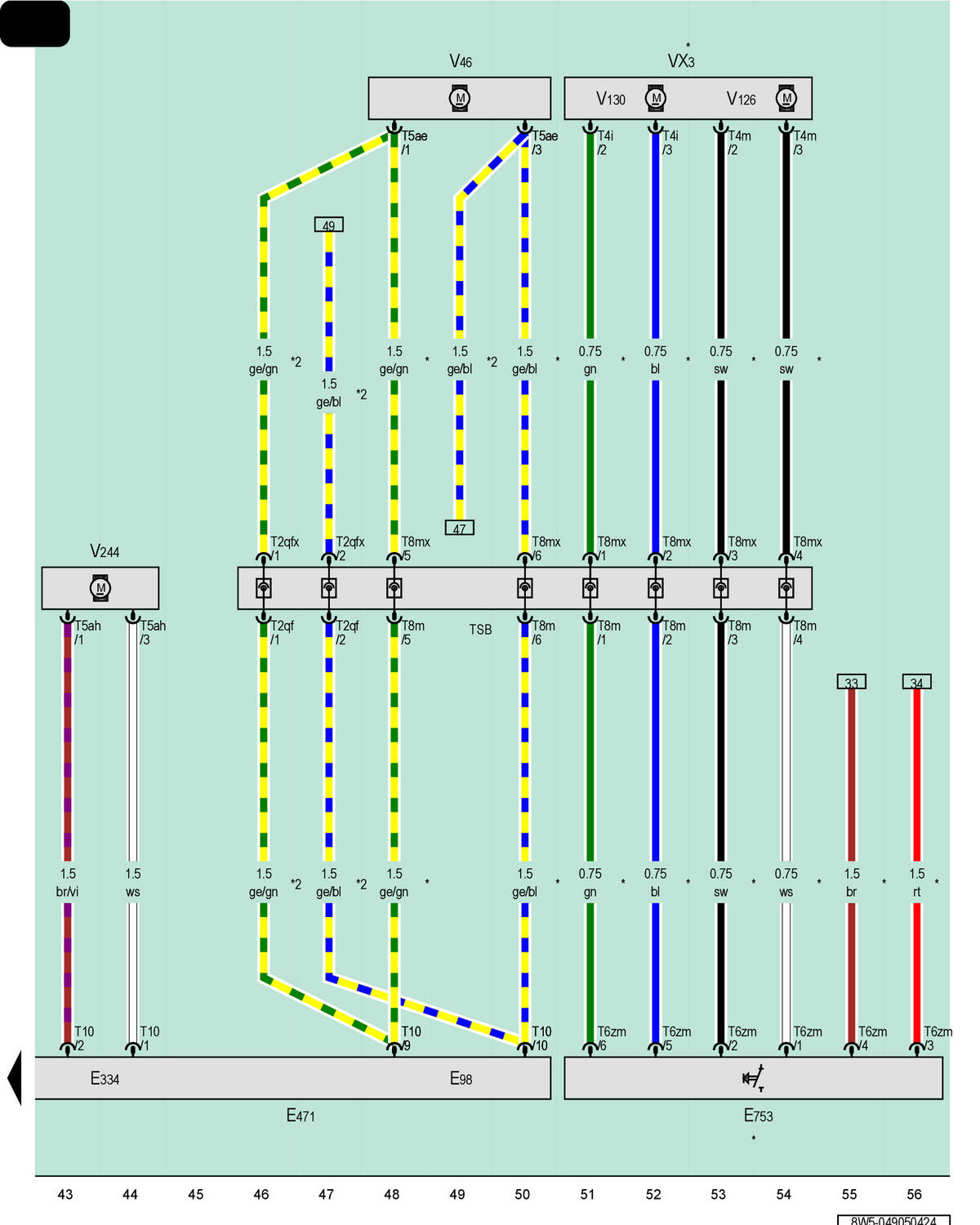

Front Passenger Seat Adjustment Control Head, Right Front Lumbar Support Adjustment Switch, Front Passenger Seat Lumbar Support, Front Passenger Backrest Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E98

Front Passenger Backrest Adjustment Switch

E334

Front Passenger Seat Angle Adjustment Button

E471

Front Passenger Seat Adjustment Control Head

E753

Right Front Lumbar Support Adjustment Switch

T2qf

2-Pin Connector, Black

T2qfx

2-Pin Connector, Black

T4i

4-Pin Connector, Black

T4m

4-Pin Connector, Black

T5ae

5-Pin Connector, Brown

T5ah

5-Pin Connector, Brown

T6zm

6-Pin Connector, White

T8m

8-Pin Connector, Black

T8mx

8-Pin Connector, Black

T10

10-Pin Connector, Black

TSB

Front Passenger Seat Backrest Coupling Point

VX3

Front Passenger Seat Lumbar Support

V46

Front Passenger Backrest Adjustment Motor

V126

Front Passenger Seat Lumbar Support Curvature Adjustment Motor

V130

Front Passenger Seat Lumbar Support Height Adjustment Motor

V244

Front Passenger Seat Angle Adjustment Motor

For Vehicles with Lumbar Support Adjustment

For Vehicles Without Lumbar Support
