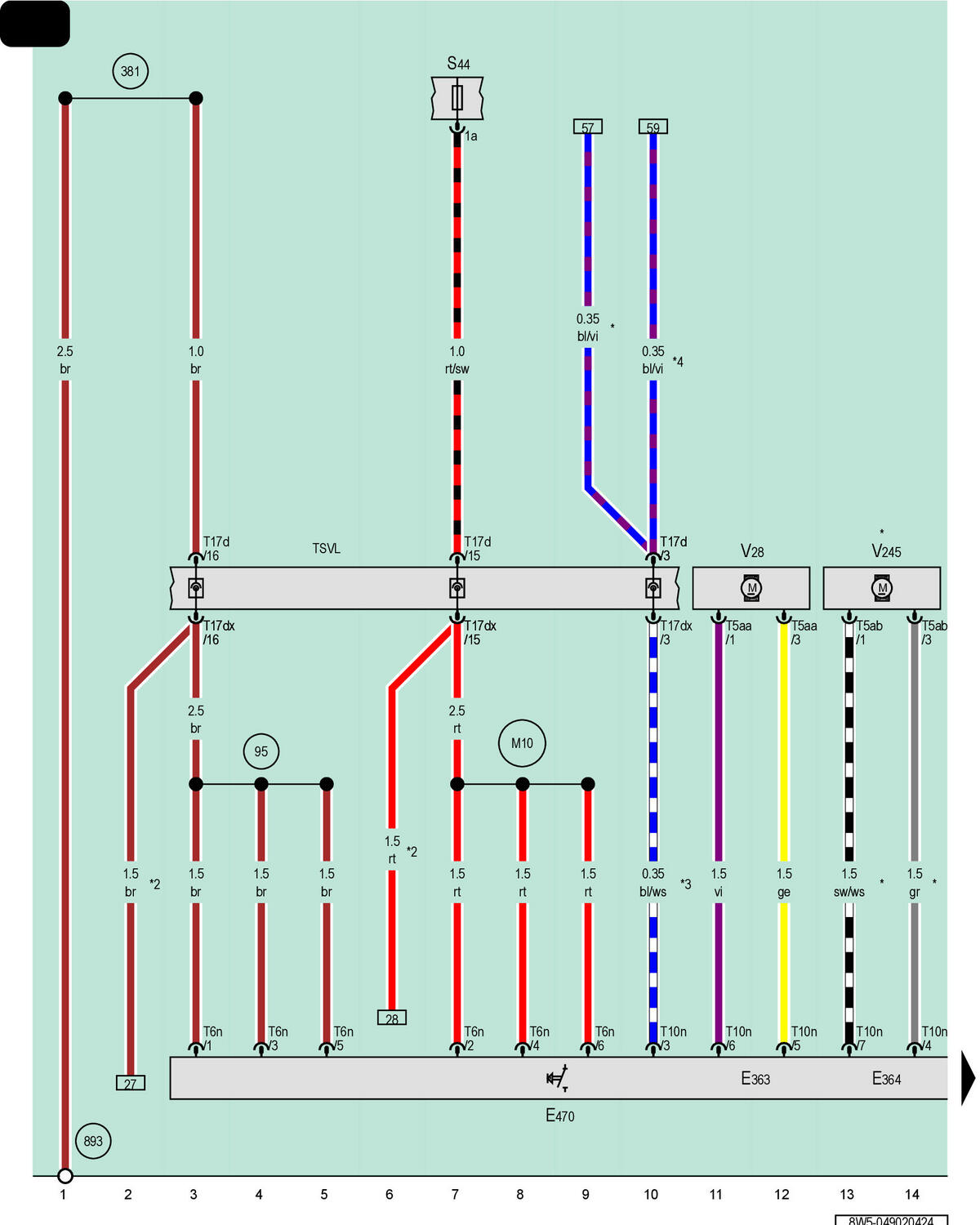

Driver Seat Adjustment Control Head, Driver Power Seat Adjustment Circuit Breaker 1, Left Front Seat Coupling Station
E363
Driver Seat Forward/Back Adjustment Switch
E364
Driver Seat Height Adjustment Switch
E470
Driver Seat Adjustment Control Head
S44
Driver Power Seat Adjustment Circuit Breaker 1
T5aa
5-Pin Connector, Brown
T5ab
5-Pin Connector, Brown
T6n
6-Pin Connector, Black
T10n
10-Pin Connector, Black
T17d
17-Pin Connector, Red
T17dx
17-Pin Connector, Red
TSVL
Left Front Seat Coupling Station
V28
Driver Seat Forward/Back Adjustment Motor
V245
Driver Seat Height Adjustment Motor
95
Ground Connection 1 (in Seat Adjustment Wiring Harness)
381
Ground Connection 16 (in Main Wiring Harness)
893
Ground Connection 2 on Left B-Pillar
M10
Connection 1 (in Driver Seat Adjustment Wiring Harness)
*
Depending on Equipment
*2
For Vehicles with Lumbar Support Adjustment
*3
From November 2016
*4
Power Driver and Front Passenger Seats
