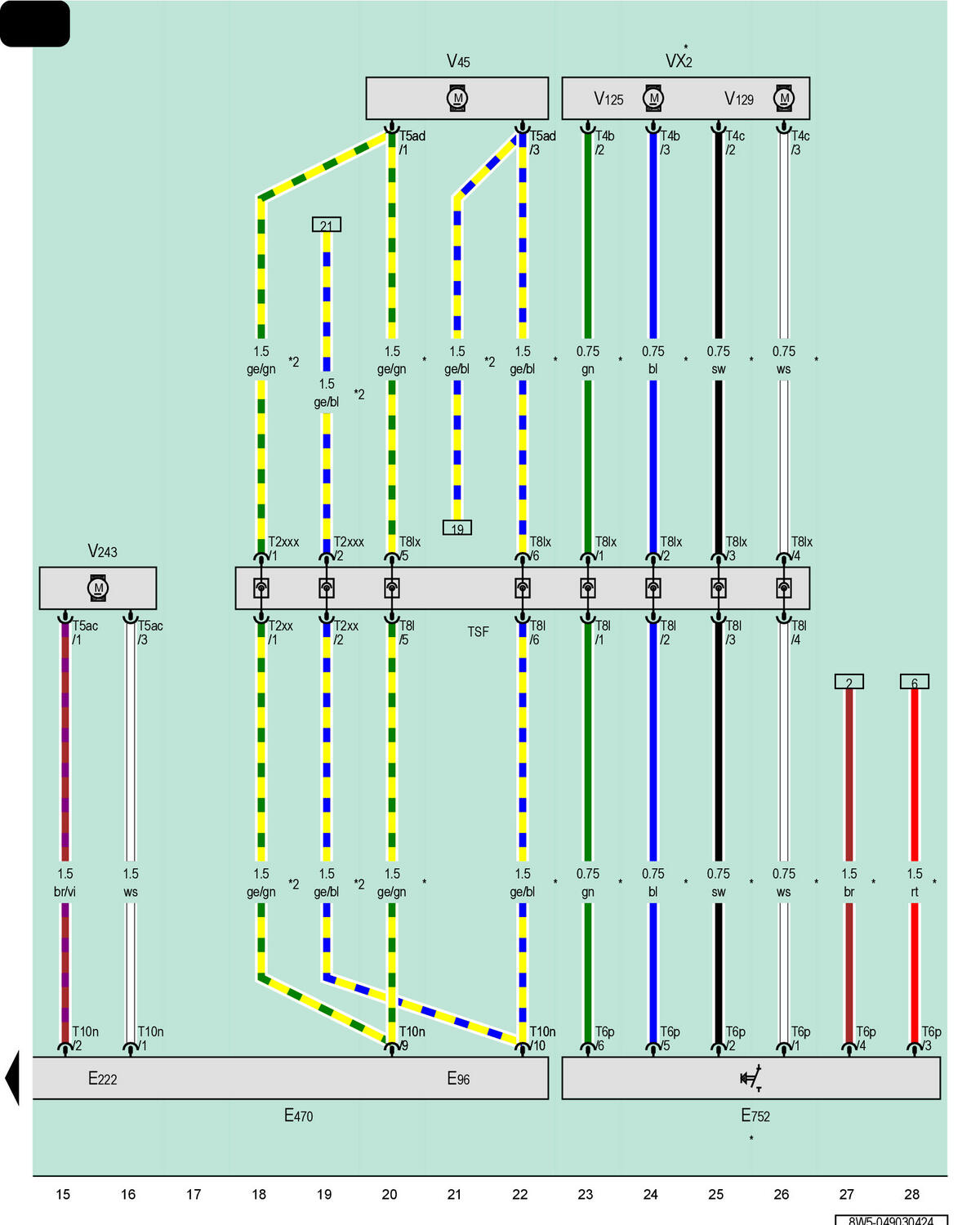

Driver Seat Adjustment Control Head, Driver Backrest Adjustment Motor
E96
Driver Backrest Adjustment Switch
E222
Driver Seat Angle Adjustment Switch
E470
Driver Seat Adjustment Control Head
E752
Left Front Lumbar Support Adjustment Switch
T2xx
2-Pin Connector, Black
T2xxx
2-Pin Connector, Black
T4b
4-Pin Connector, Black
T4c
4-Pin Connector, Black
T5ac
5-Pin Connector, Brown
T5ad
5-Pin Connector, Brown
T6p
6-Pin Connector, White
T8l
8-Pin Connector, Black
T8lx
8-Pin Connector, Black
T10n
10-Pin Connector, Black
TSF
Driver Seat Backrest Coupling Point
VX2
Driver Seat Lumbar Support
V45
Driver Backrest Adjustment Motor
V125
Driver Seat Lumbar Support Curvature Adjustment Motor
V129
Driver Seat Lumbar Support Height Adjustment Motor
V243
Driver Seat Angle Adjustment Motor
*
For Vehicles with Lumbar Support Adjustment
*2
For Vehicles Without Lumbar Support
