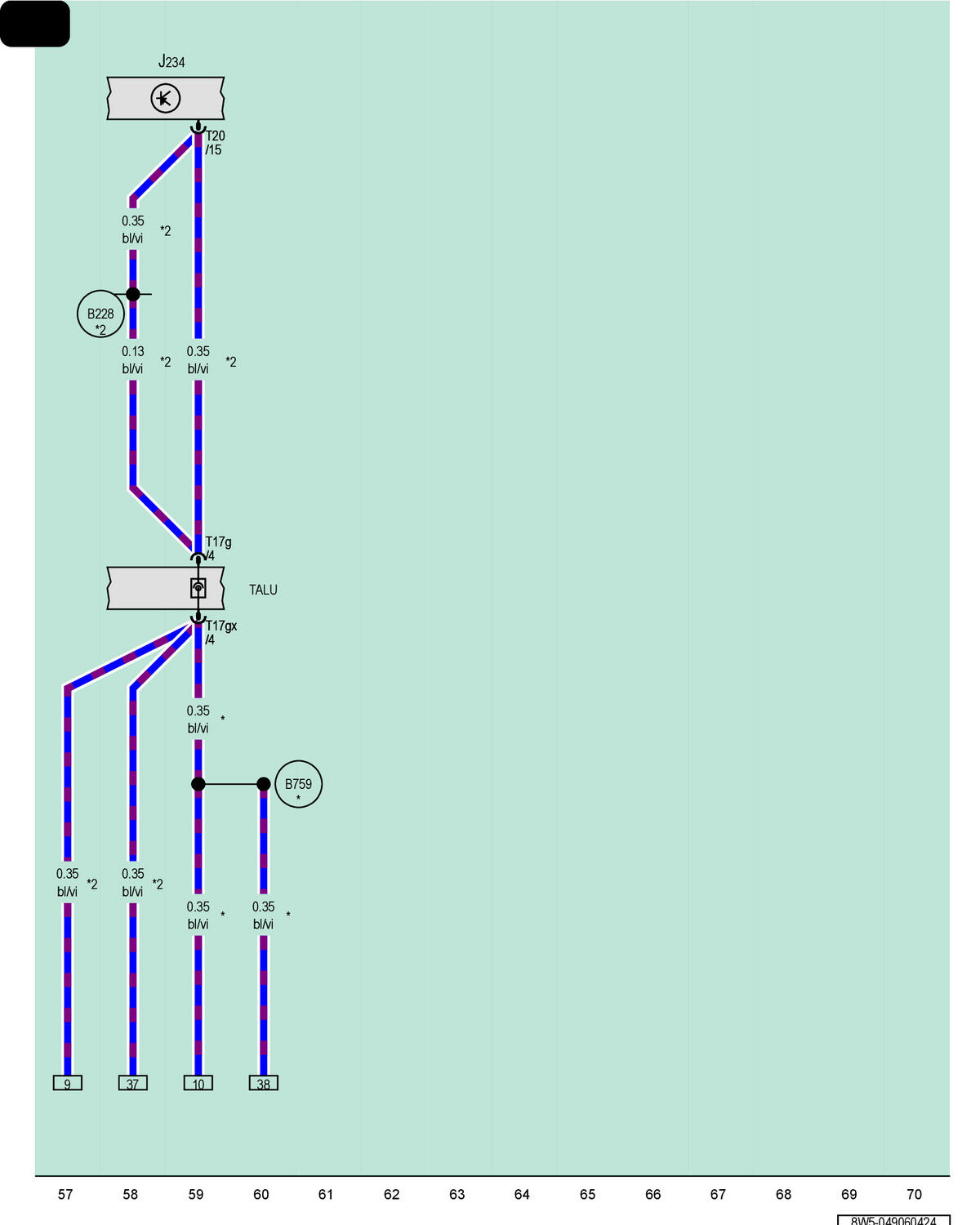

Airbag Control Module

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

T17g

17-Pin Connector, Blue

T17gx

17-Pin Connector, Blue

T20

20-Pin Connector, Yellow

TALU

Coupling Point on Left A-Pillar, Bottom

B228

Crash Signal Connection (in Interior Wiring Harness)

B759

Crash Signal Connection (in Main Wiring Harness)

*

Power Driver and Front Passenger Seats

*2

Depending on Equipment
