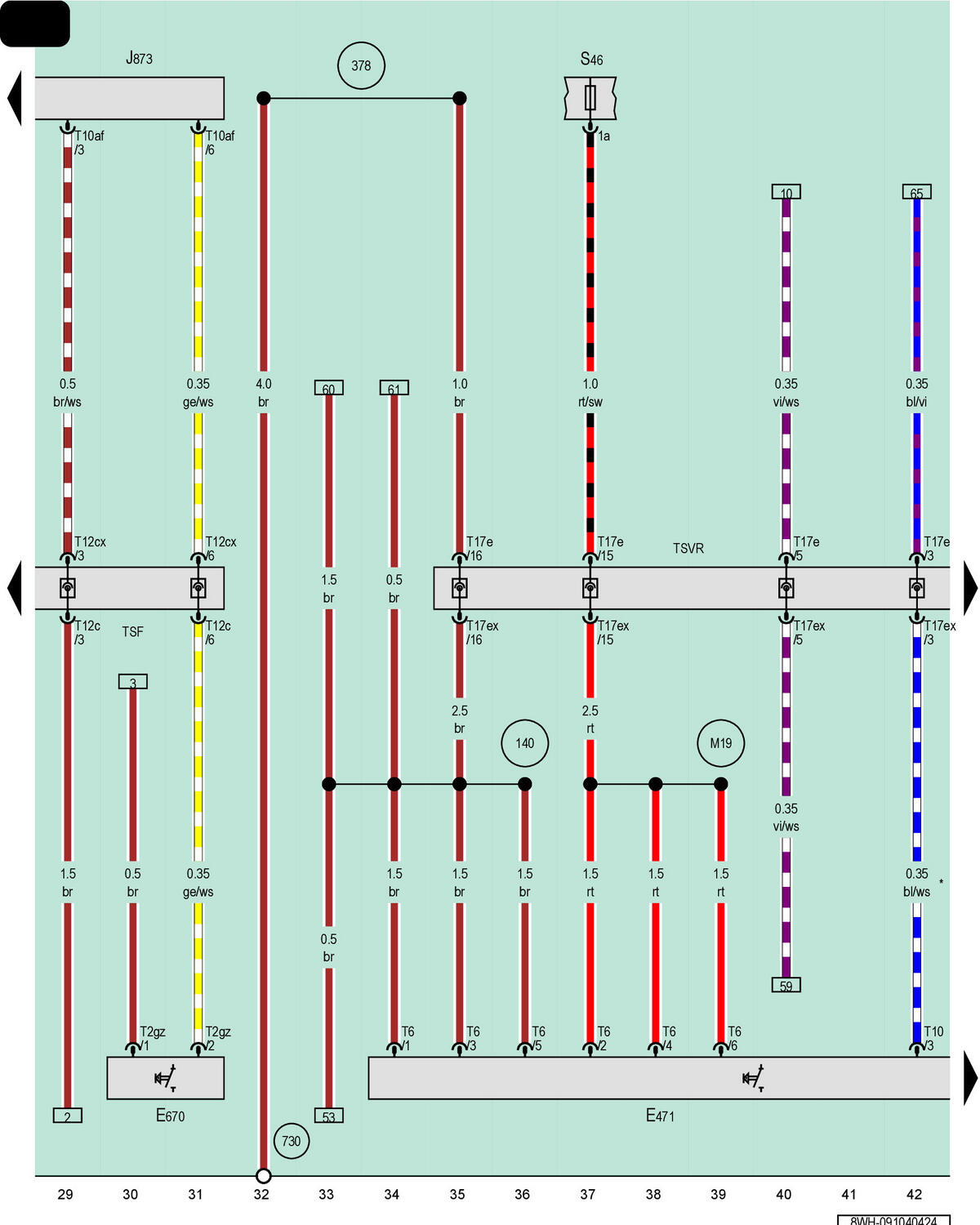

Front Passenger Seat Adjustment Control Head, Right Front Seat Coupling Station
E471
Front Passenger Seat Adjustment Control Head
E670
Driver Side Massage Function Button
J873
Driver Multi-Contour Seat Control Module
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T2gz
2-Pin Connector, Black
T6
6-Pin Connector, Black
T10
10-Pin Connector, Black
T10af
10-Pin Connector, Black
T12c
12-Pin Connector, Black
T12cx
12-Pin Connector, Black
T17e
17-Pin Connector, Red
T17ex
17-Pin Connector, Red
TSF
Driver Seat Backrest Coupling Point
TSVR
Right Front Seat Coupling Station
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
378
Ground Connection 13 (in Main Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
M19
Connection 2 (in Front Passenger Seat Adjustment Wiring Harness)
*
From November 2016
