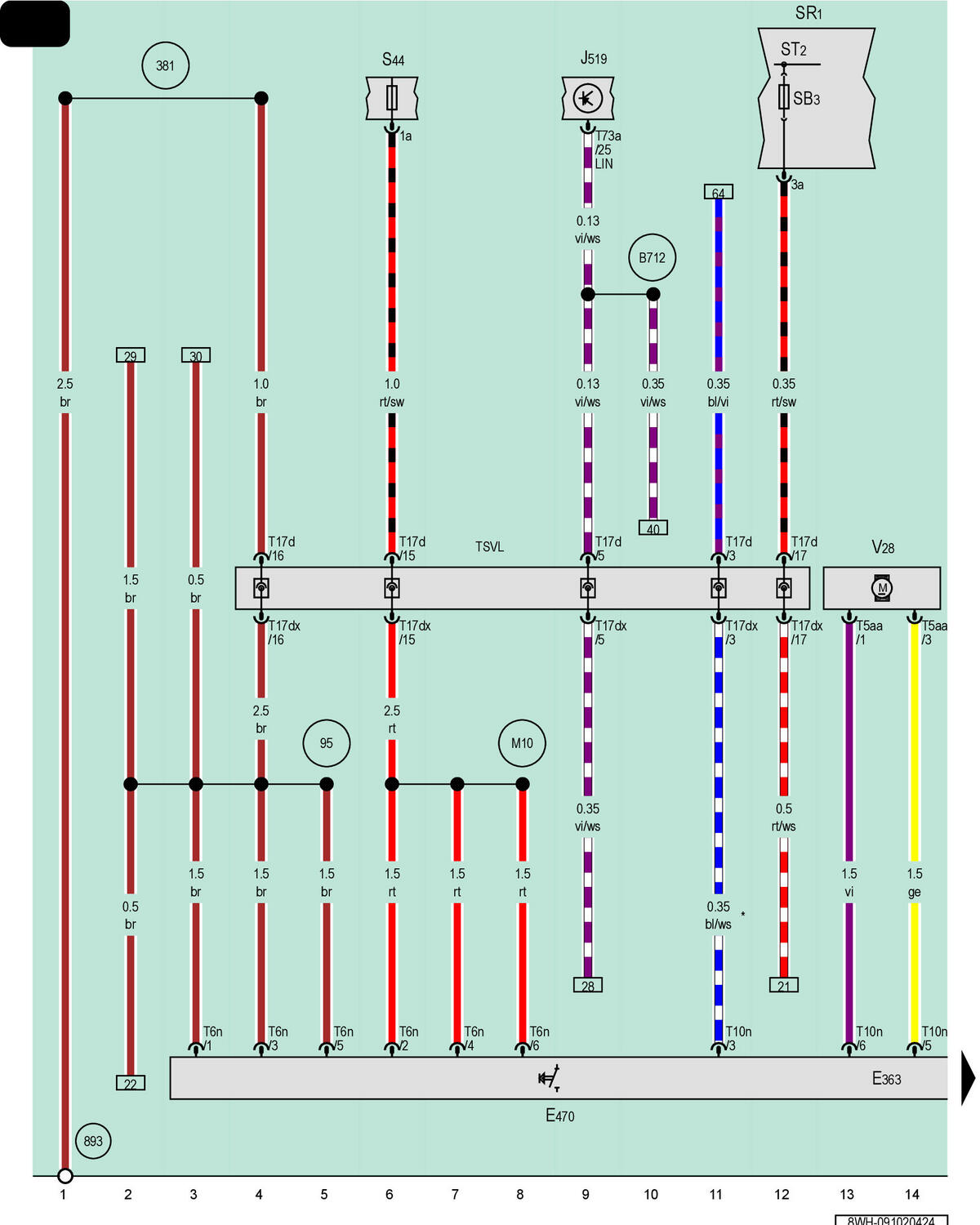

Driver Seat Adjustment Control Head, Driver Power Seat Adjustment Circuit Breaker 1, Left Front Seat Coupling Station
E363
Driver Seat Forward/Back Adjustment Switch
E470
Driver Seat Adjustment Control Head
J519
Vehicle Electrical System Control Module
SR1
Relay and Fuse Panel 1
ST2
Fuse Panel 2, Red
SB3
Fuse 3 (On Fuse Panel B)
S44
Driver Power Seat Adjustment Circuit Breaker 1
T5aa
5-Pin Connector, Brown
T6n
6-Pin Connector, Black
T10n
10-Pin Connector, Black
T17d
17-Pin Connector, Red
T17dx
17-Pin Connector, Red
T73a
73-Pin Connector, Black
TSVL
Left Front Seat Coupling Station
V28
Driver Seat Forward/Back Adjustment Motor
95
Ground Connection 1 (in Seat Adjustment Wiring Harness)
381
Ground Connection 16 (in Main Wiring Harness)
893
Ground Connection 2 on Left B-Pillar
B712
LIN Bus Connection 7 (in Main Wiring Harness)
M10
Connection 1 (in Driver Seat Adjustment Wiring Harness)
*
From November 2016
