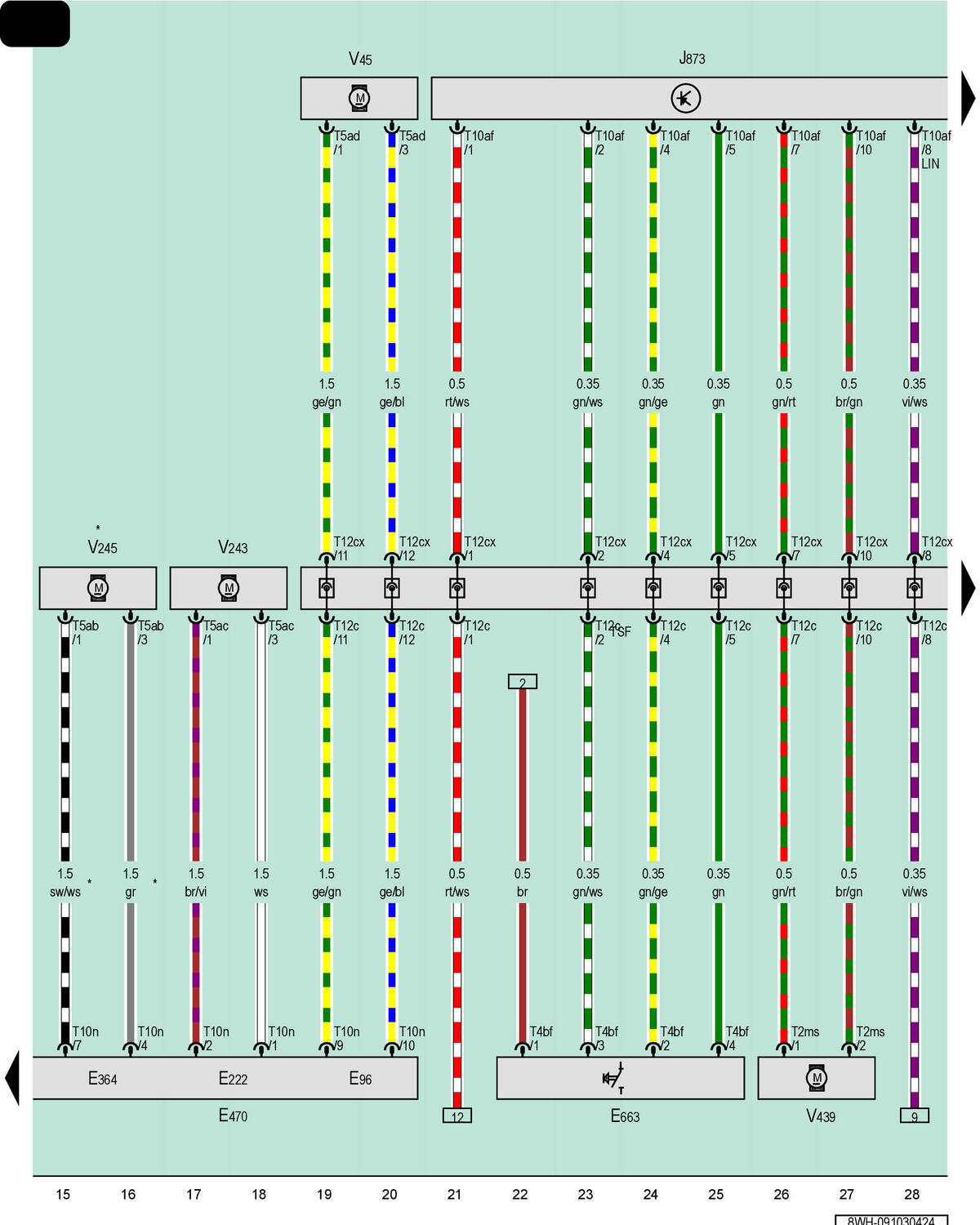

Driver Seat Adjustment Control Head, Driver Backrest Adjustment Motor

GWW8WH-091030424Courtesy of AUDI OF AMERICA, LLC

E96

Driver Backrest Adjustment Switch

E222

Driver Seat Angle Adjustment Switch

E364

Driver Seat Height Adjustment Switch

E470

Driver Seat Adjustment Control Head

E663

Driver Seat Switch Module

J873

Driver Multi-Contour Seat Control Module

T2ms

2-Pin Connector, Black

T4bf

4-Pin Connector, Brown

T5ab

5-Pin Connector, Brown

T5ac

5-Pin Connector, Brown

T5ad

5-Pin Connector, Brown

T10af

10-Pin Connector, Black

T10n

10-Pin Connector, Black

T12c

12-Pin Connector, Black

T12cx

12-Pin Connector, Black

TSF

Driver Seat Backrest Coupling Point

V45

Driver Backrest Adjustment Motor

V243

Driver Seat Angle Adjustment Motor

V245

Driver Seat Height Adjustment Motor

V439

Driver Multi-Contour Seat Compressor

*

Depending on Equipment
