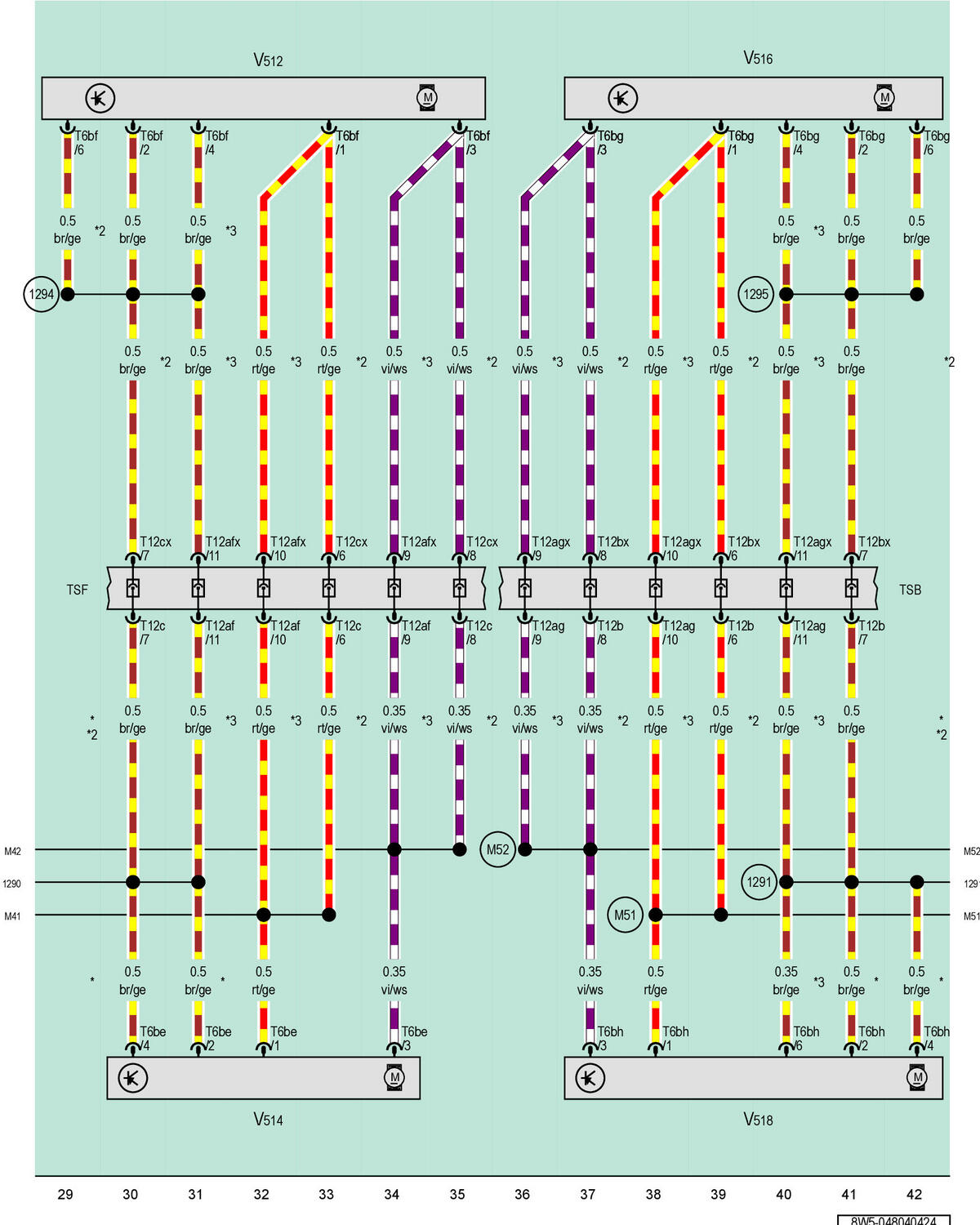

Left Front Seat Backrest Fan 1, Left Front Seat Cushion Fan 1, Right Front Seat Backrest Fan 1, Right Front Seat Cushion Fan 1
T6be
6-Pin Connector, Black
T6bf
6-Pin Connector, Black
T6bg
6-Pin Connector, Black
T6bh
6-Pin Connector, Black
T12af
12-Pin Connector, Black
T12afx
12-Pin Connector, Black
T12ag
12-Pin Connector, Black
T12agx
12-Pin Connector, Black
T12b
12-Pin Connector, Black
T12bx
12-Pin Connector, Black
T12c
12-Pin Connector, Black
T12cx
12-Pin Connector, Black
TSB
Front Passenger Seat Backrest Coupling Point
TSF
Driver Seat Backrest Coupling Point
V512
Left Front Seat Backrest Fan 1
V514
Left Front Seat Cushion Fan 1
V516
Right Front Seat Backrest Fan 1
V518
Right Front Seat Cushion Fan 1
1290
Ground Connection 1 (in Left Front Seat Wiring Harness)
1291
Ground Connection 1 (in Right Front Seat Wiring Harness)
1294
Ground Connection 2 (in Left Front Seat Wiring Harness)
1295
Ground Connection 2 (in Right Front Seat Wiring Harness)
M41
Connection 1 (in Driver Seat Wiring Harness)
M42
Connection 2 (in Driver Seat Wiring Harness)
M51
Connection 1 (in Front Passenger Seat Wiring Harness)
M52
Connection 2 (in Front Passenger Seat Wiring Harness)
*
The Color of the Wires Depends on Vehicle Equipment
*2
For Vehicles Without China Equipment
*3
For Vehicles with China Equipment
