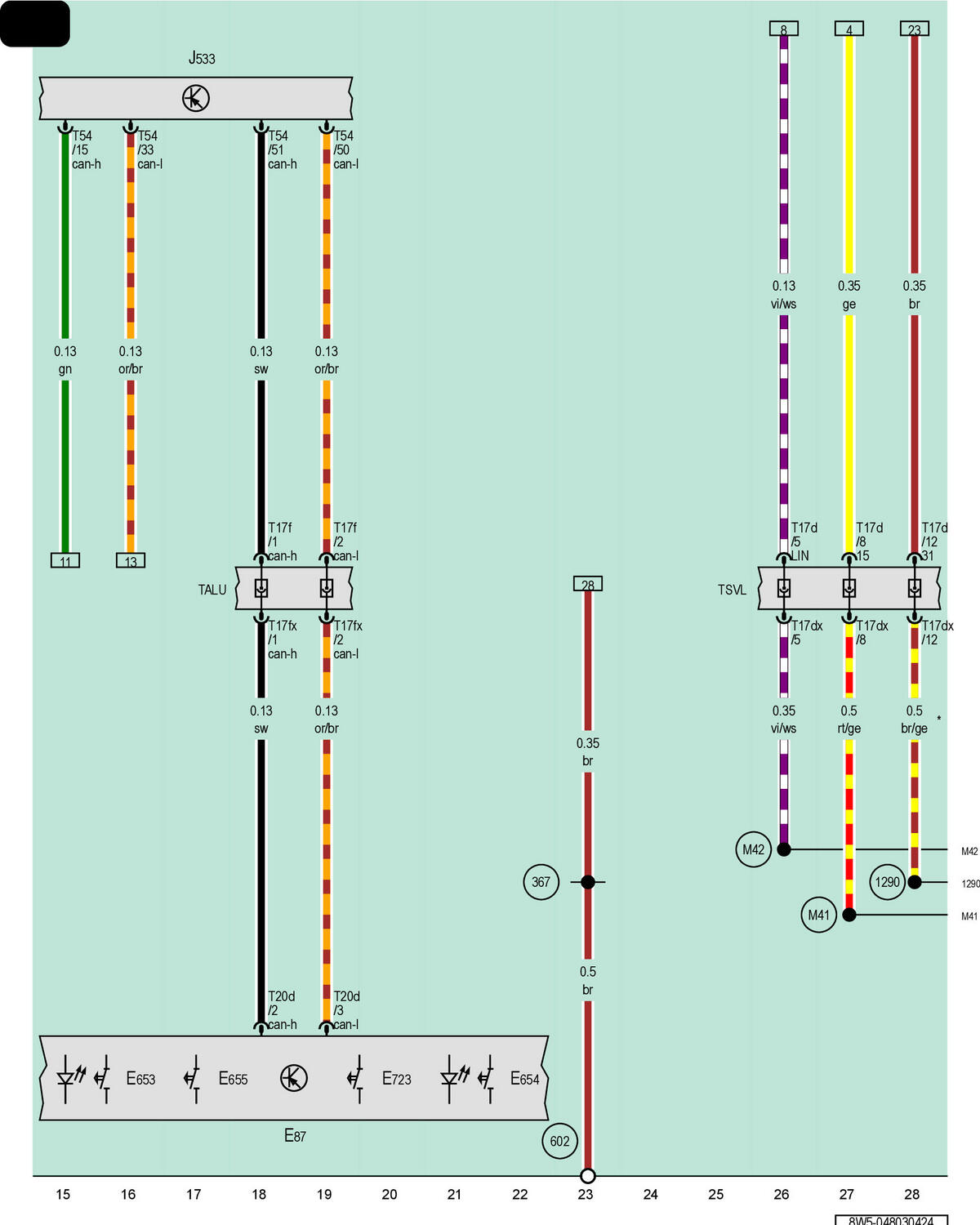

Front A/C Display Control Head, Seat Ventilation Switch, Seat Ventilation Switch 2, Data Bus On Board Diagnostic Interface
E87
Front A/C Display Control Head
E653
Left Seat Heating Button
E654
Right Seat Heating Button
E655
Seat Ventilation Switch, Driver Side
E723
Seat Ventilation Switch 2, Front Passenger Side
J533
Data Bus on Board Diagnostic Interface
T17d
17-Pin Connector, Red
T17dx
17-Pin Connector, Red
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T20d
20-Pin Connector, Black
T54
54-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
TSVL
Left Front Seat Coupling Station
367
Ground Connection 2 (in Main Wiring Harness)
602
Ground Connection in Left Front Footwell
1290
Ground Connection 1 (in Left Front Seat Wiring Harness)
M41
Connection 1 (in Driver Seat Wiring Harness)
M42
Connection 2 (in Driver Seat Wiring Harness)
*
The Color of the Wires Depends on Vehicle Equipment
