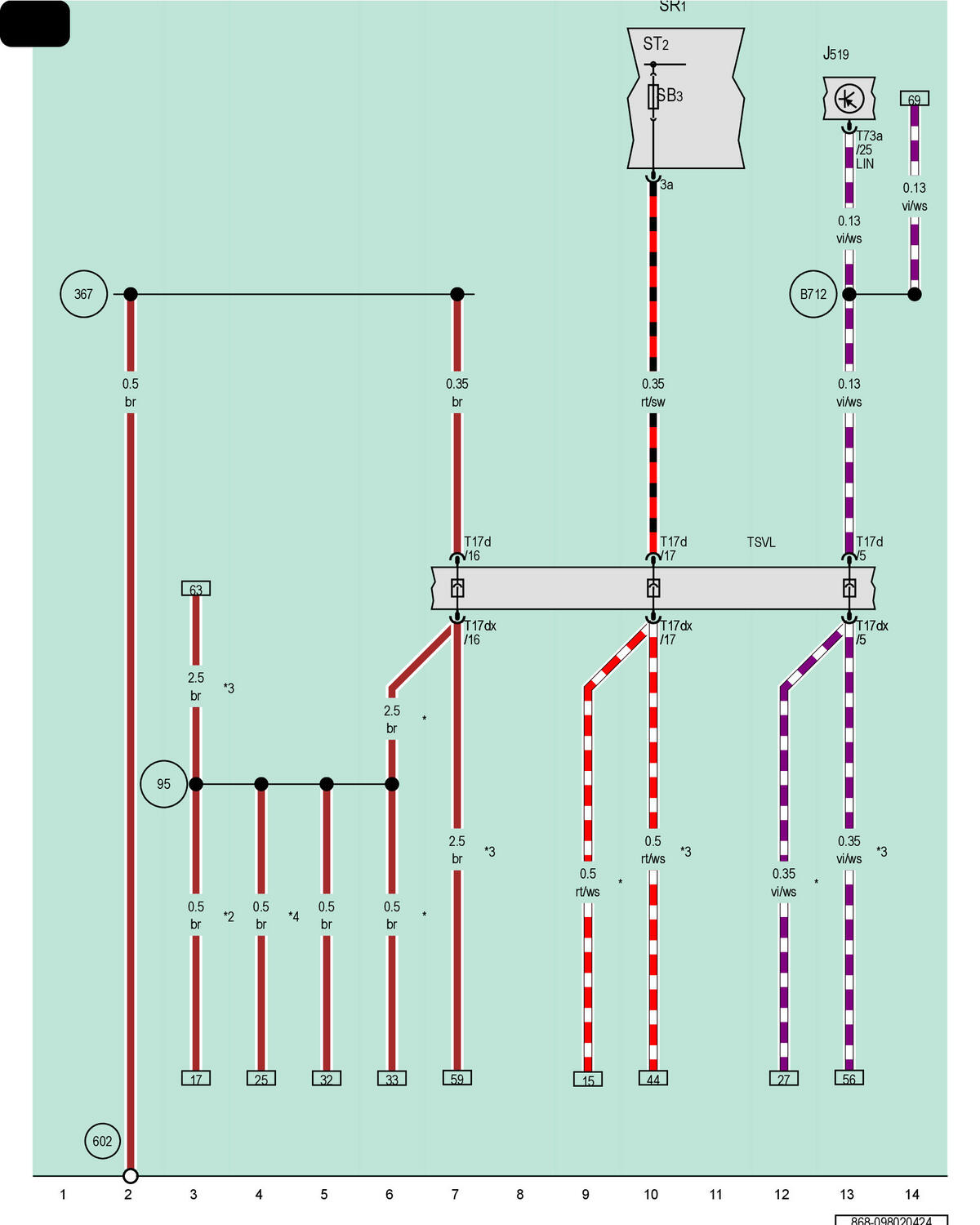

Vehicle Electrical System Control Module, Relay And Fuse Panel 1

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

SR1

Relay and Fuse Panel 1

ST2

Fuse Panel 2, Red

SB3

Fuse 3 (On Fuse Panel B)

T17d

17-Pin Connector, Red

T17dx

17-Pin Connector, Red

T73a

73-Pin Connector, Black

TSVL

Left Front Seat Coupling Station

Ground Connection 1 (in Seat Adjustment Wiring Harness)

367

Ground Connection 2 (in Main Wiring Harness)

602

Ground Connection in Left Front Footwell

B712

LIN Bus Connection 7 (in Main Wiring Harness)

For LHD Vehicles

Version 1

For RHD Vehicles

Version 2
