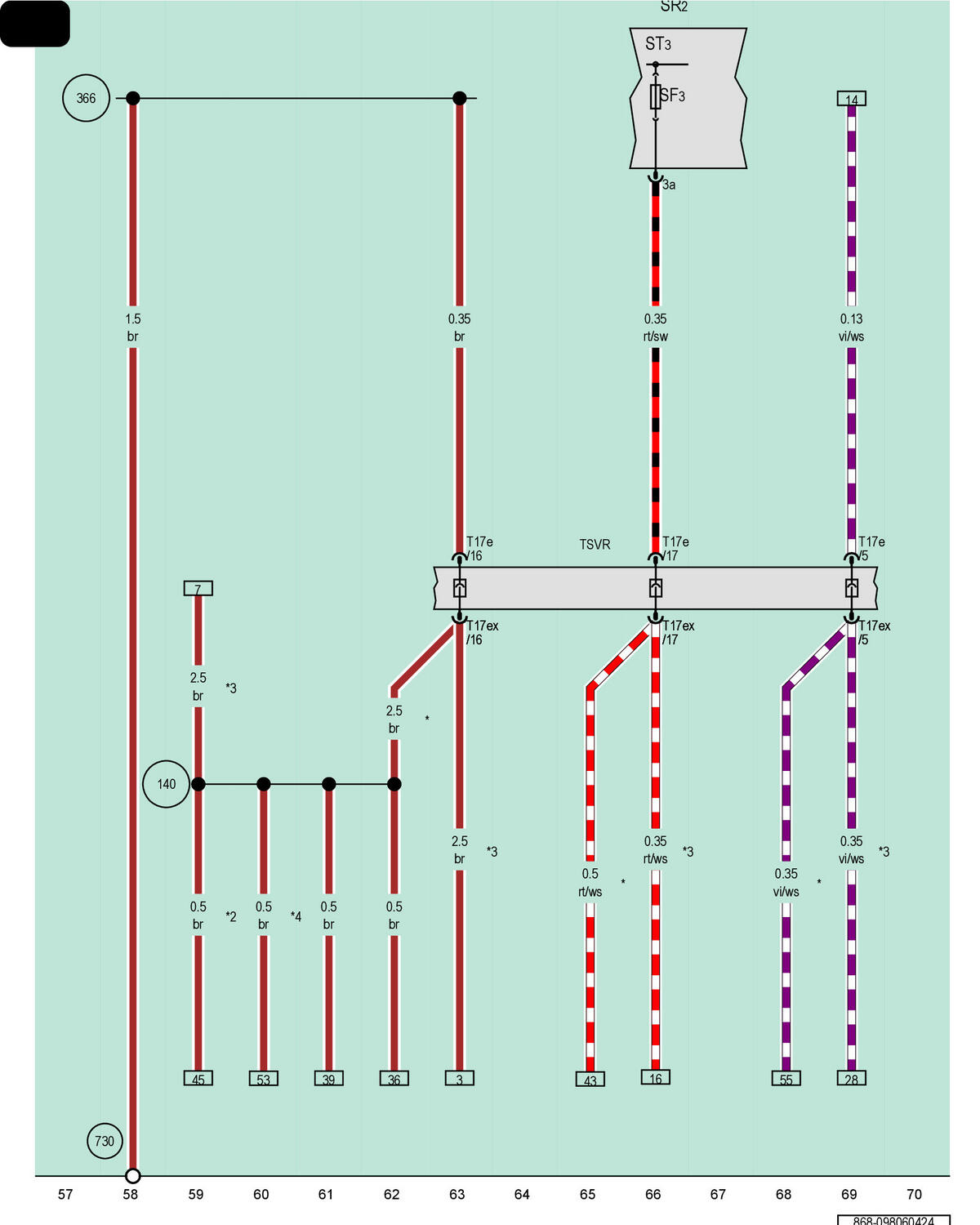

Relay And Fuse Panel 2

Courtesy of AUDI OF AMERICA, LLC

SR2

Relay and Fuse Panel 2

SF3

Fuse 3 (On Fuse Panel F)

ST3

Fuse Panel 3, Brown

T17e

17-Pin Connector, Red

T17ex

17-Pin Connector, Red

TSVR

Right Front Seat Coupling Station

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)

366

Ground Connection 1 (in Main Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

*

For LHD Vehicles

*2

Version 1

*3

For RHD Vehicles

*4

Version 2
