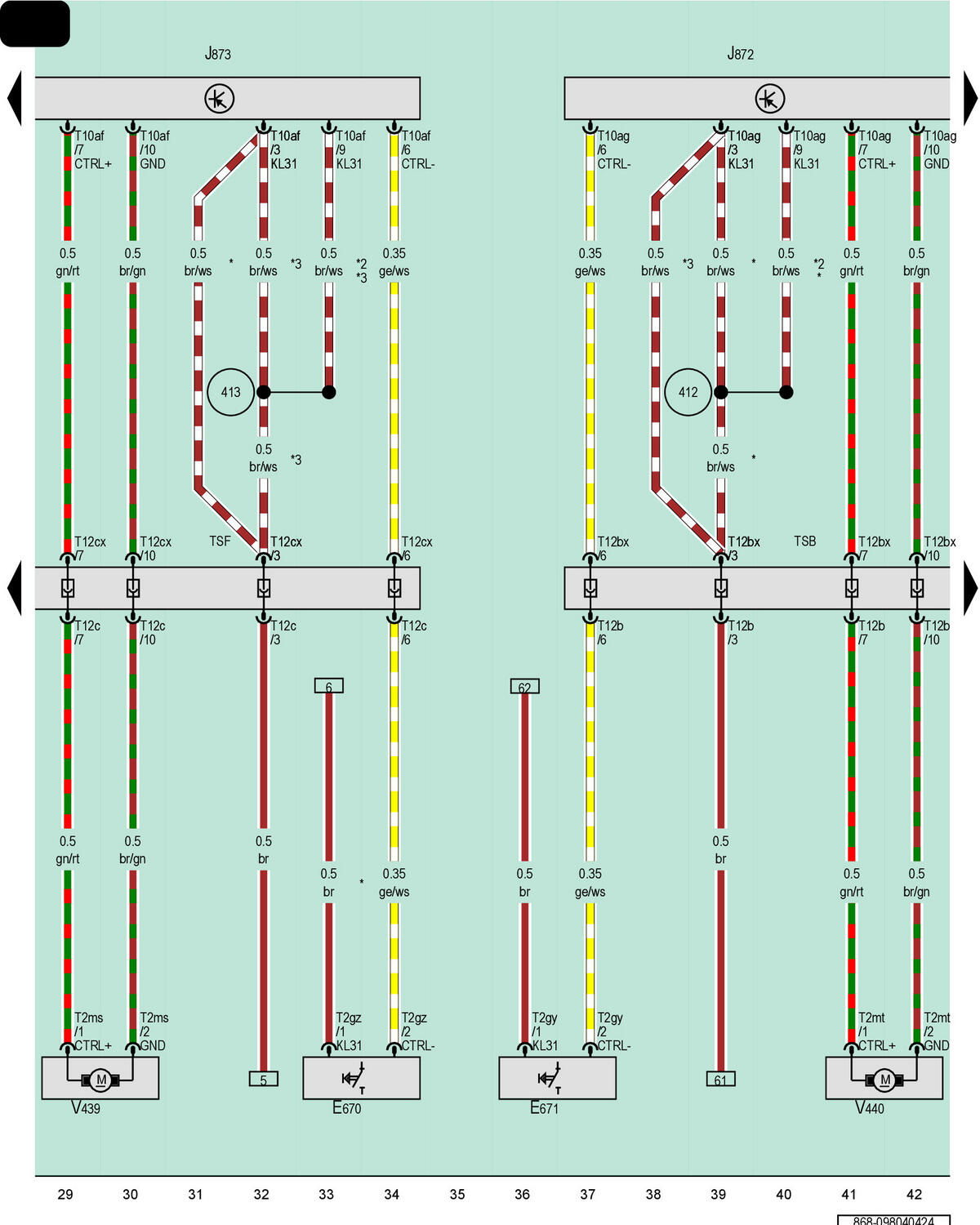

Driver Side Massage Function Button, Front Passenger Massage Function Button, Front Passenger Multi-Contour Seat Control Module, Driver Multi-Contour Seat Control Module, Driver Multi-Contour Seat Compressor, Front Passenger Multi-Contour Seat Compressor
E670
Driver Side Massage Function Button
E671
Front Passenger Massage Function Button
J872
Front Passenger Multi-Contour Seat Control Module
J873
Driver Multi-Contour Seat Control Module
T2gy
2-Pin Connector, Black
T2gz
2-Pin Connector, Black
T2ms
2-Pin Connector, Black
T2mt
2-Pin Connector, Black
T10af
10-Pin Connector, Black
T10ag
10-Pin Connector, Black
T12b
12-Pin Connector, Black
T12bx
12-Pin Connector, Black
T12c
12-Pin Connector, Black
T12cx
12-Pin Connector, Black
TSB
Front Passenger Seat Backrest Coupling Point
TSF
Driver Seat Backrest Coupling Point
V439
Driver Multi-Contour Seat Compressor
V440
Front Passenger Multi-Contour Seat Compressor
412
Ground Connection 3 (in Seat Adjustment Wiring Harness)
413
Ground Connection 4 (in Seat Adjustment Wiring Harness)
*
For LHD Vehicles
*2
Coding Wire
*3
For RHD Vehicles
