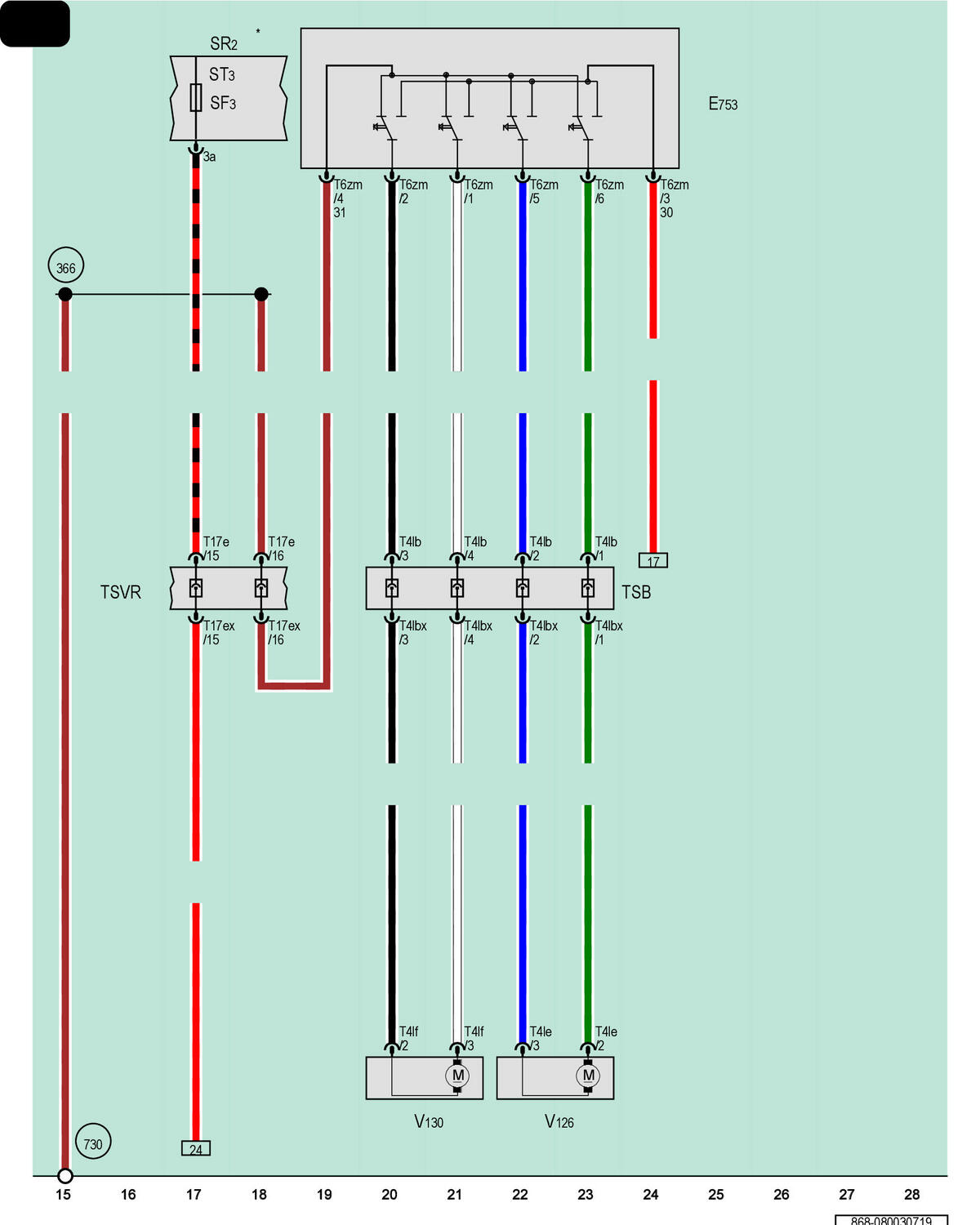

Right Front Lumbar Support Adjustment Switch

Courtesy of AUDI OF AMERICA, LLC

E753

SR2

Relay and Fuse Panel 2

ST3

Fuse Panel 3, Brown

SF3

Fuse 3 (On Fuse Panel F)

T4lb

4-Pin Connector, Black

T4lbx

4-Pin Connector, Black

T4le

4-Pin Connector, Black

T4lf

4-Pin Connector, Black

T6zm

6-Pin Connector, White

T17e

17-Pin Connector, Red

T17ex

17-Pin Connector, Red

TSB

Front Passenger Seat Backrest Coupling Point

TSVR

Right Front Seat Coupling Station

V126

Front Passenger Seat Lumbar Support Curvature Adjustment Motor

V130

Front Passenger Seat Lumbar Support Height Adjustment Motor

366

Ground Connection 1 (in Main Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

Refer to Applicable Wiring Diagram for Fuse Positions
