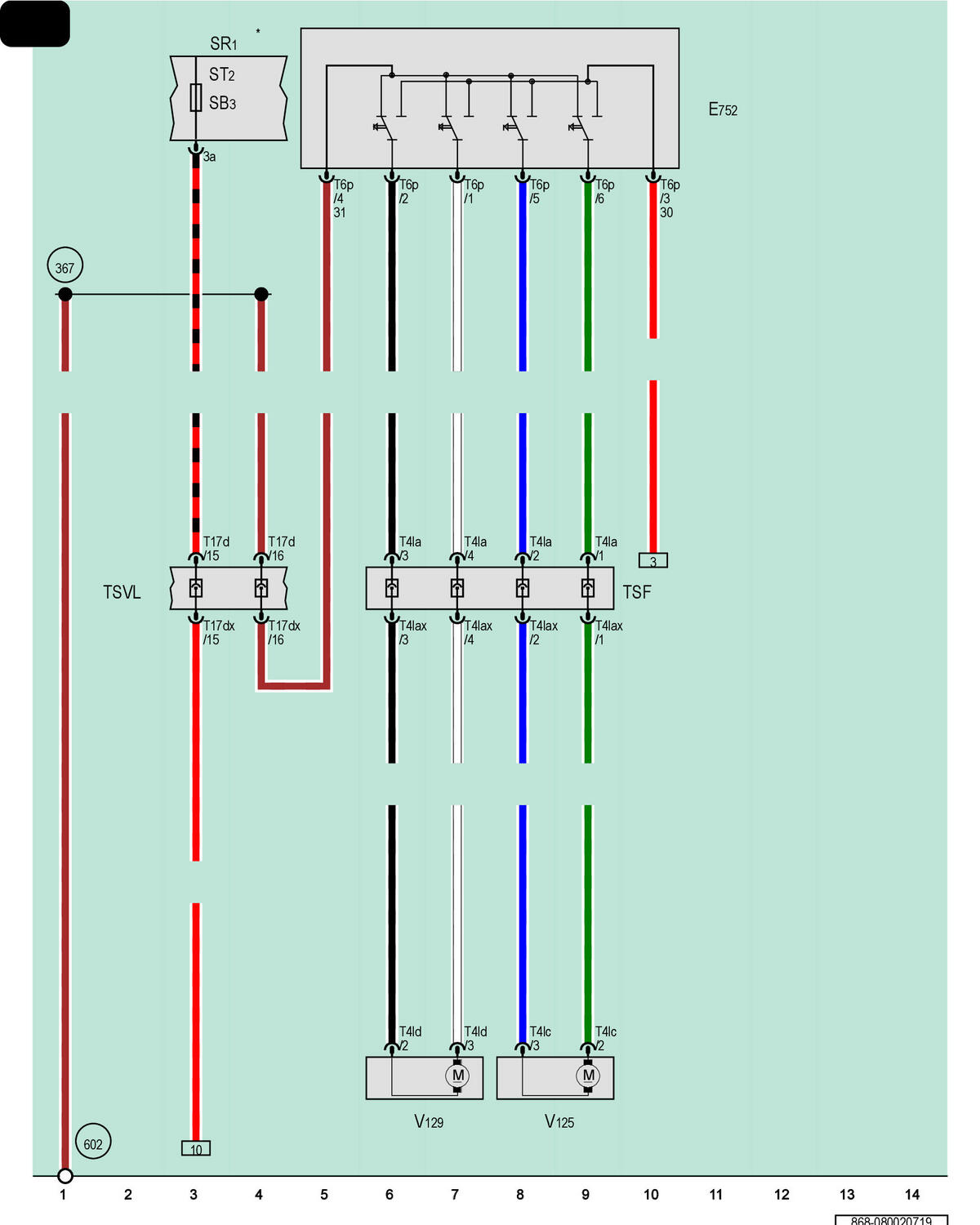

Left Front Lumbar Support Adjustment Switch, Fuse 3 (On Fuse Panel B)
E752
Left Front Lumbar Support Adjustment Switch
SR1
Relay and Fuse Panel 1
ST2
Fuse Panel 2, Red
SB3
Fuse 3 (On Fuse Panel B)
T4la
4-Pin Connector, Black
T4lax
4-Pin Connector, Black
T4lc
4-Pin Connector, Black
T4ld
4-Pin Connector, Black
T6p
6-Pin Connector, White
T17d
17-Pin Connector, Red
T17dx
17-Pin Connector, Red
TSF
Driver Seat Backrest Coupling Point
TSVL
Left Front Seat Coupling Station
V125
Driver Seat Lumbar Support Curvature Adjustment Motor
V129
Driver Seat Lumbar Support Height Adjustment Motor
367
Ground Connection 2 (in Main Wiring Harness)
602
Ground Connection in Left Front Footwell
*
Refer to Applicable Wiring Diagram for Fuse Positions
