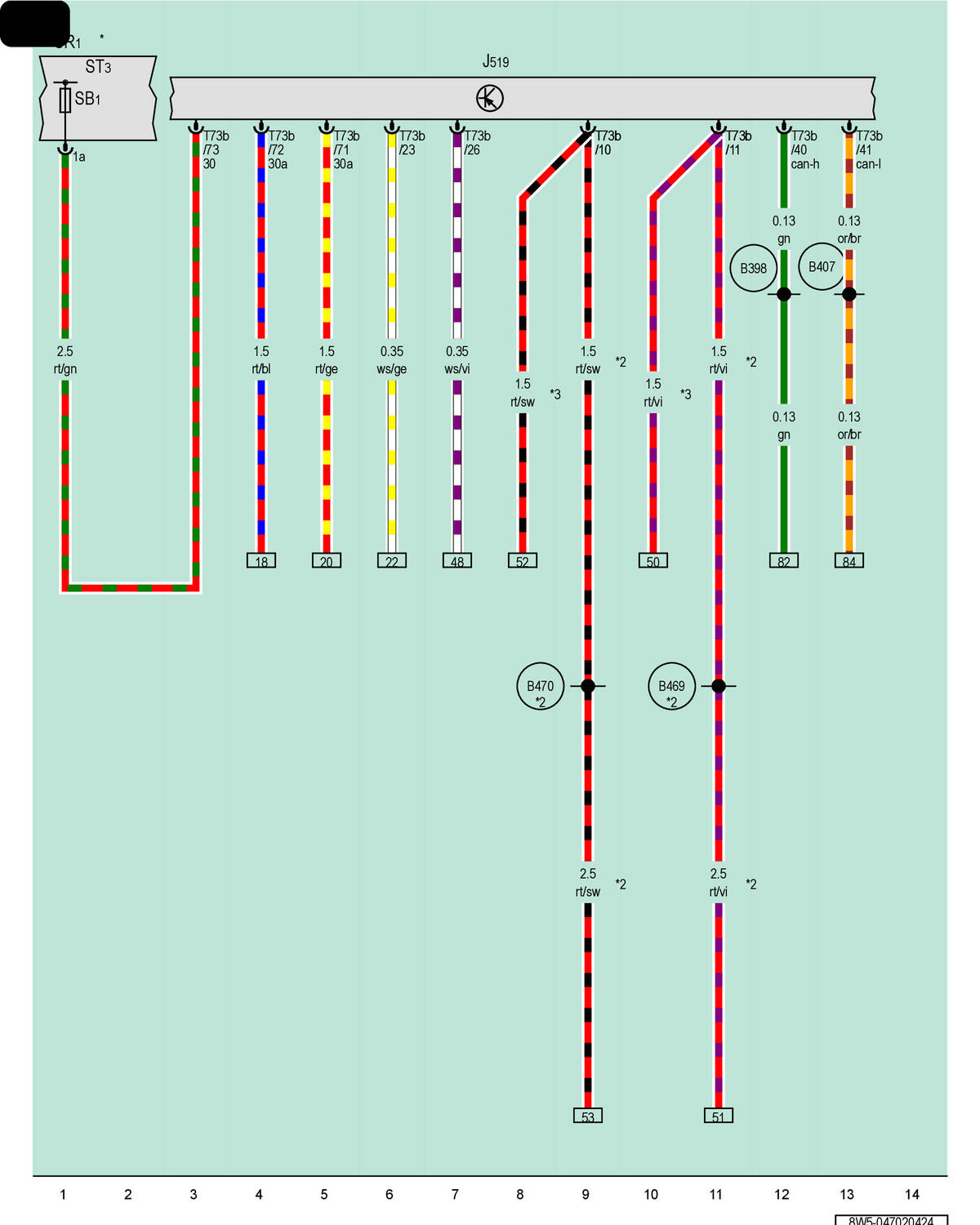

Vehicle Electrical System Control Module, Relay And Fuse Panel 1

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

SR1

Relay and Fuse Panel 1

SB1

Fuse 1 (On Fuse Panel B)

ST3

Fuse Panel 3, Black

T73b

73-Pin Connector, Black

B398

Comfort System CAN Bus, High Connection 2 (in Main Wiring Harness)

B407

Comfort System CAN Bus, Low Connection 2 (in Main Wiring Harness)

B469

Connection 5 (in Main Wiring Harness)

B470

Connection 6 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

Omitted as a Running Change

Running Change
