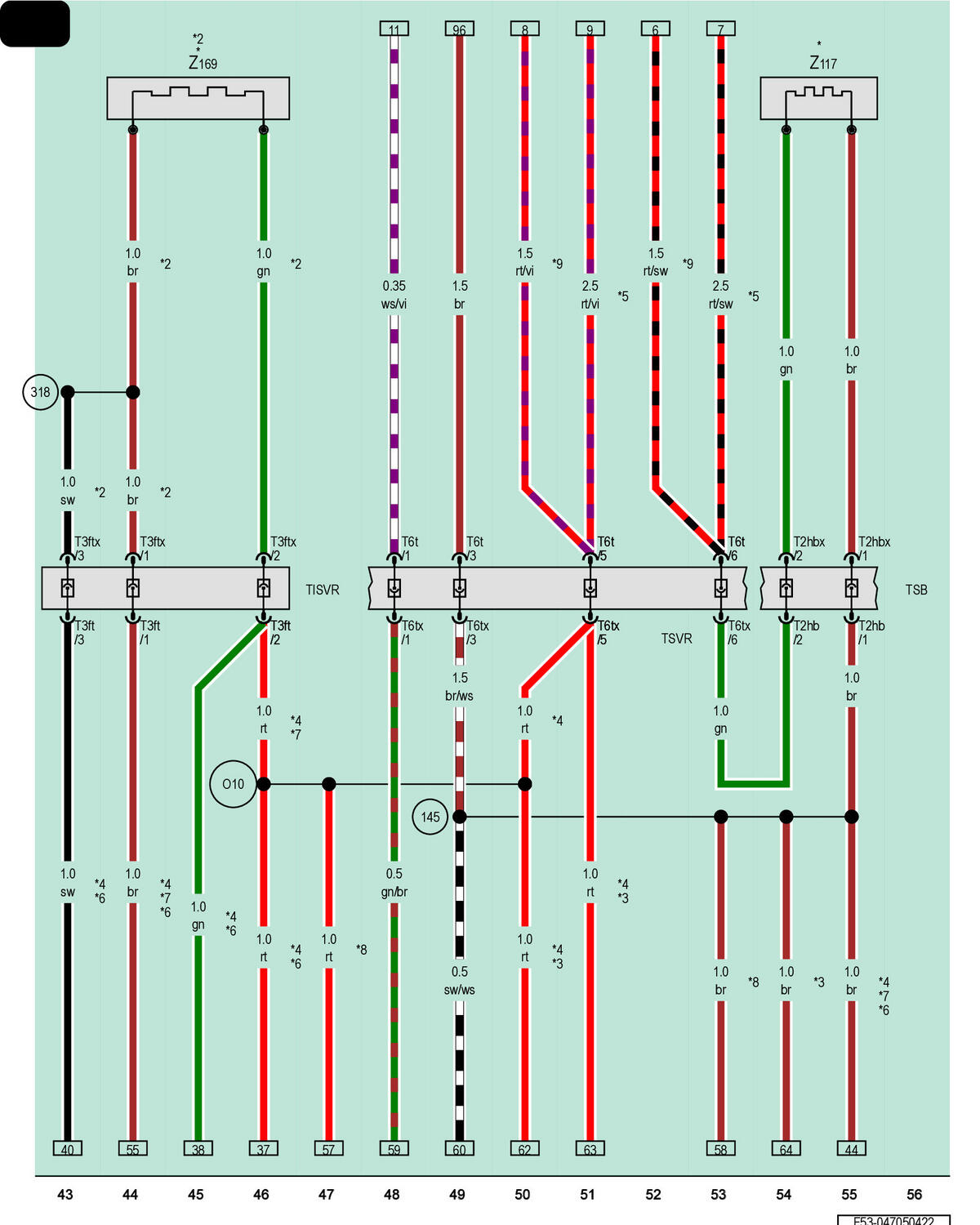

Right Front Seat Heated Backrest, Right Front Seat Extension Heating Element

Courtesy of AUDI OF AMERICA, LLC

T2hb

2-Pin Connector, Black

T2hbx

2-Pin Connector, Black

T3ft

3-Pin Connector

T3ftx

3-Pin Connector

T6t

6-Pin Connector, Green

T6tx

6-Pin Connector, Green

TISVR

Coupling Station in Right Front Seat

TSB

Front Passenger Seat Backrest Coupling Point

TSVR

Right Front Seat Coupling Station

Z117

Right Front Seat Heated Backrest

Z169

Right Front Seat Extension Heating Element

145

Ground Connection 3 (in Heated Seats Wiring Harness)

318

Ground Connection 4 (in Heated Seats Wiring Harness)

O10

Positive Connection 2 (30as) (in Heated Seats Wiring Harness)

*

Pre-Wired Component

*2

For Vehicles with Seat Depth Adjustment

*3

Not for USA

*4

Depending on Equipment

*5

Omitted as a Running Change

*6

Version 2

*7

Version 1

*8

For USA Only

*9

Running Change
