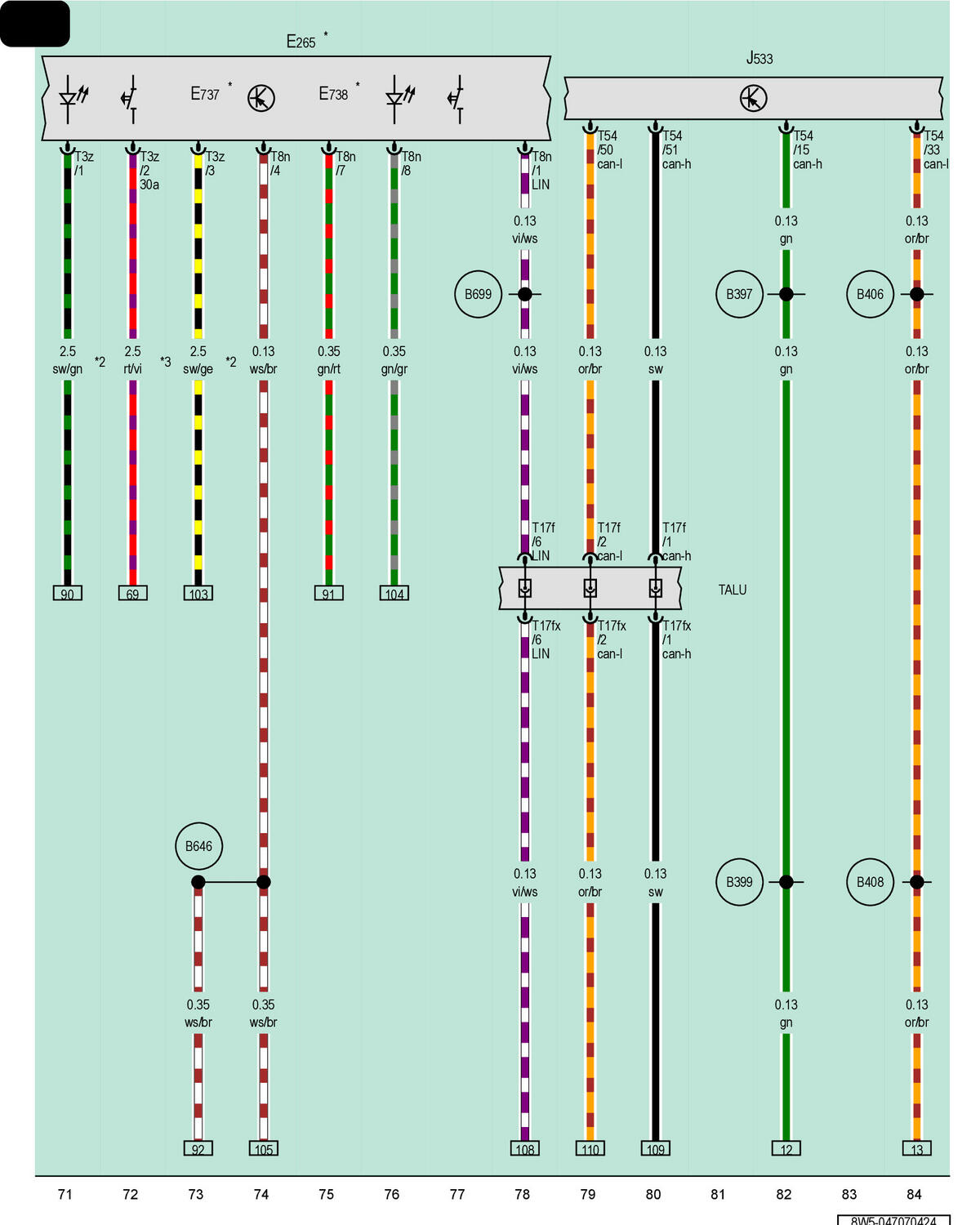

Rear A/C Display Control Head, Left Rear Seat Heating Button, Right Rear Seat Heating Button, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

E265

Rear A/C Display Control Head

E737

Left Rear Seat Heating Button

E738

Right Rear Seat Heating Button

J533

Data Bus on Board Diagnostic Interface

T3z

3-Pin Connector, Black

T8n

8-Pin Connector, Black

T17f

17-Pin Connector, Red

T17fx

17-Pin Connector, Red

T54

54-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

B397

Comfort System CAN Bus, High Connection 1 (in Main Wiring Harness)

B399

Comfort System CAN Bus, High Connection 3 (in Main Wiring Harness)

B406

Comfort System CAN Bus, Low Connection 1 (in Main Wiring Harness)

B408

Comfort System CAN Bus, Low Connection 3 (in Main Wiring Harness)

B646

Heated Seat Connection 3 (in Main Wiring Harness)

B699

LIN Bus Connection 4 (in Main Wiring Harness)

*

Depending on Equipment

*2

1.5 Diameter Possible

*3

4.0 Diameter Possible
