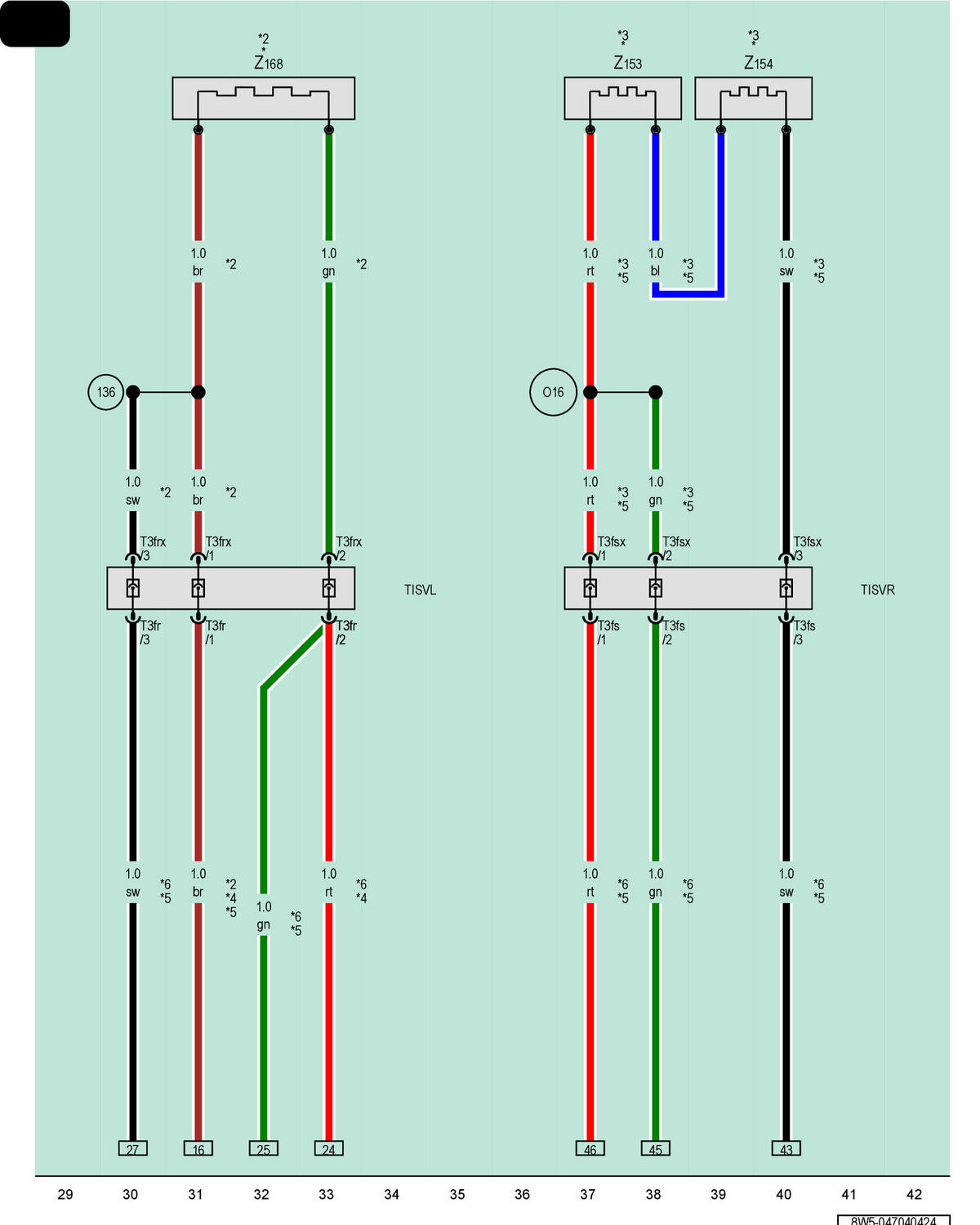

Left Seat Bolster Heating For Right Front Seat, Right Seat Bolster Heating For Right Front Seat, Left Front Seat Extension Heating Element
T3fr
3-Pin Connector
T3frx
3-Pin Connector
T3fs
3-Pin Connector
T3fsx
3-Pin Connector
TISVL
Coupling Station in Left Front Seat
TISVR
Coupling Station in Right Front Seat
Z153
Left Seat Bolster Heating for Right Front Seat
Z154
Right Seat Bolster Heating for Right Front Seat
Z168
Left Front Seat Extension Heating Element
136
Ground Connection 2 (in Heated Seats Wiring Harness)
O16
Connection 5 (in Heated Seats Wiring Harness)
*
Pre-Wired Component
*2
For Vehicles with Seat Depth Adjustment
*3
For Vehicles with Backrest Side Bolster Heating
*4
Version 1
*5
Version 2
*6
Depending on Equipment
