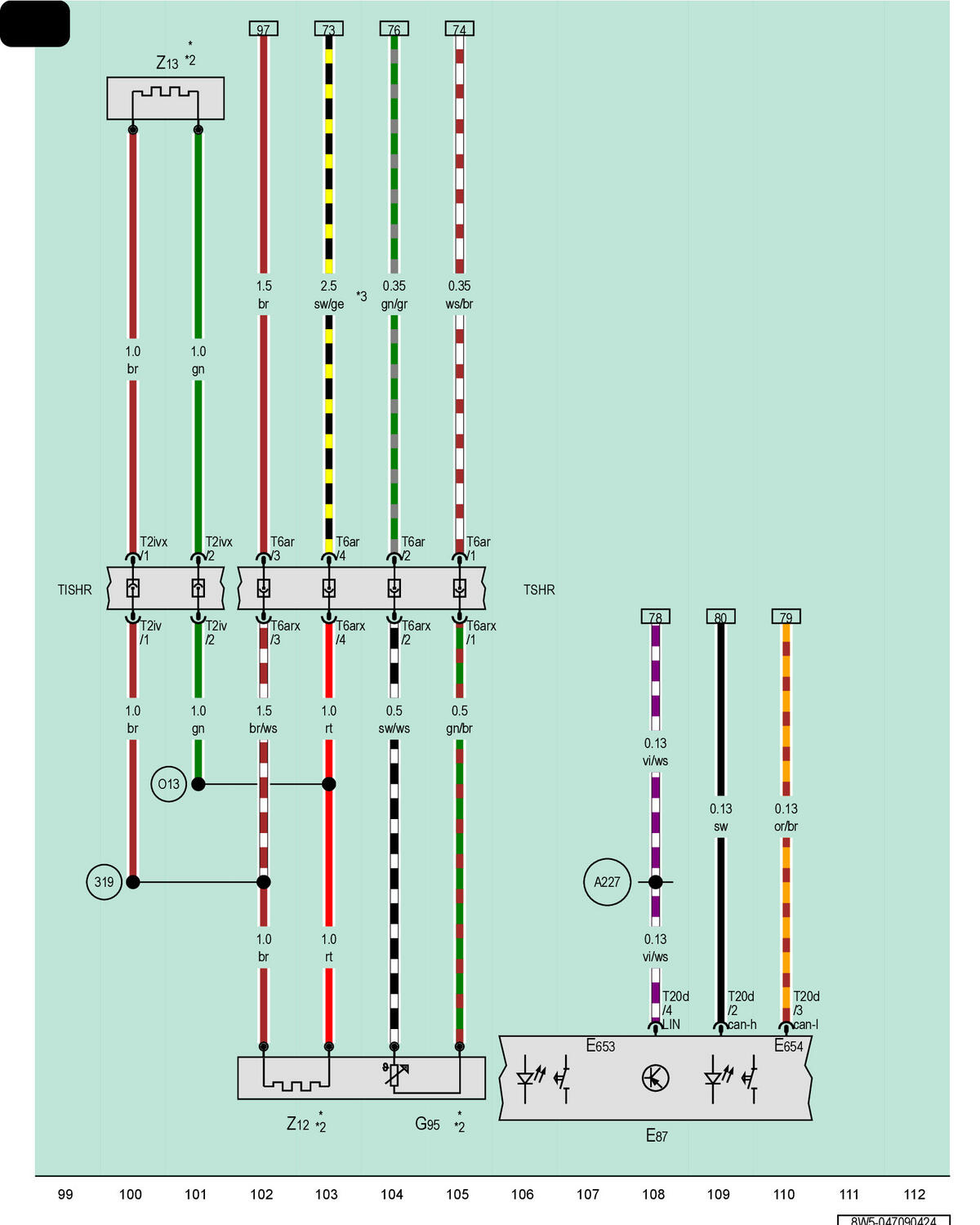

Front A/C Display Control Head, Left Seat Heating Button, Right Rear Heated Seat Temperature Sensor, Right Rear Bench Seat Heating Element, Right Rear Backrest Heating Element

Courtesy of AUDI OF AMERICA, LLC

E87

Front A/C Display Control Head

E653

Left Seat Heating Button

E654

Right Seat Heating Button

G95

Right Rear Heated Seat Temperature Sensor

T2iv

2-Pin Connector, Black

T2ivx

2-Pin Connector, Black

T6ar

6-Pin Connector, Green

T6arx

6-Pin Connector, Green

T20d

20-Pin Connector, Black

TISHR

Coupling Point in Right Rear Seat

TSHR

Right Rear Seat Coupling Station

Z12

Right Rear Bench Seat Heating Element

Z13

Right Rear Backrest Heating Element

319

Ground Connection 5 (in Heated Seats Wiring Harness)

A227

LIN Bus Connection 2 (in Instrument Panel Wiring Harness)

O13

Connection 2 (in Heated Seats Wiring Harness)

*

Pre-Wired Component

*2

Depending on Equipment

*3

1.5 Diameter Possible
