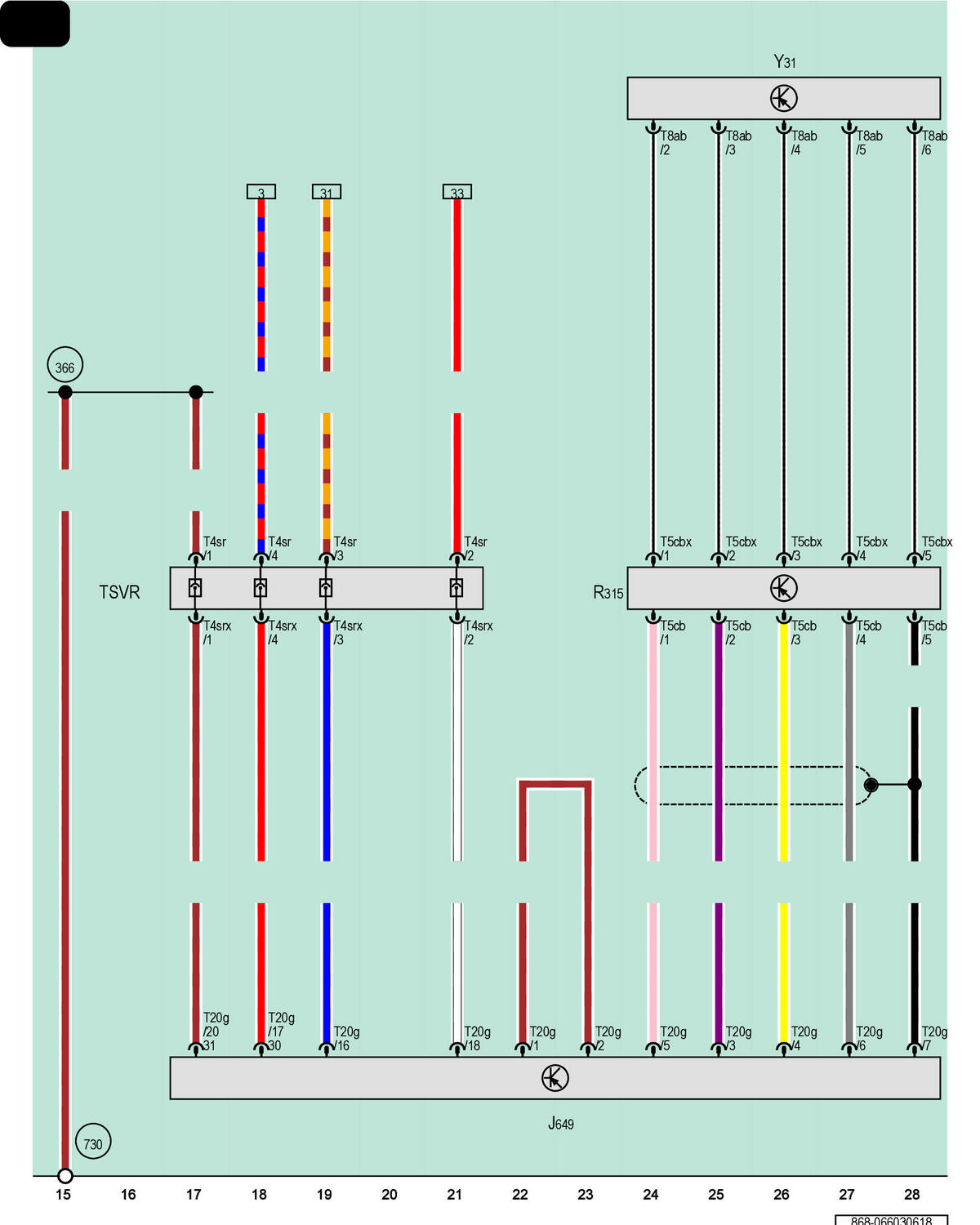

Right Rear Information Display Control Head Control Module, Right Front Seat Coupling Station, Multimedia Display Unit 3

Courtesy of AUDI OF AMERICA, LLC

J649

Right Rear Information Display Control Head Control Module

R315

Multimedia Display Unit 3 Bracket

T4sr

4-Pin Connector, Black

T4srx

4-Pin Connector, Black

T5cb

5-Pin Connector, Black

T5cbx

5-Pin Connector, Black

T8ab

8-Pin Connector, Black

T20g

20-Pin Connector, Black

TSVR

Right Front Seat Coupling Station

Y31

Multimedia Display Unit 3

366

Ground Connection 1 (in Main Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing
