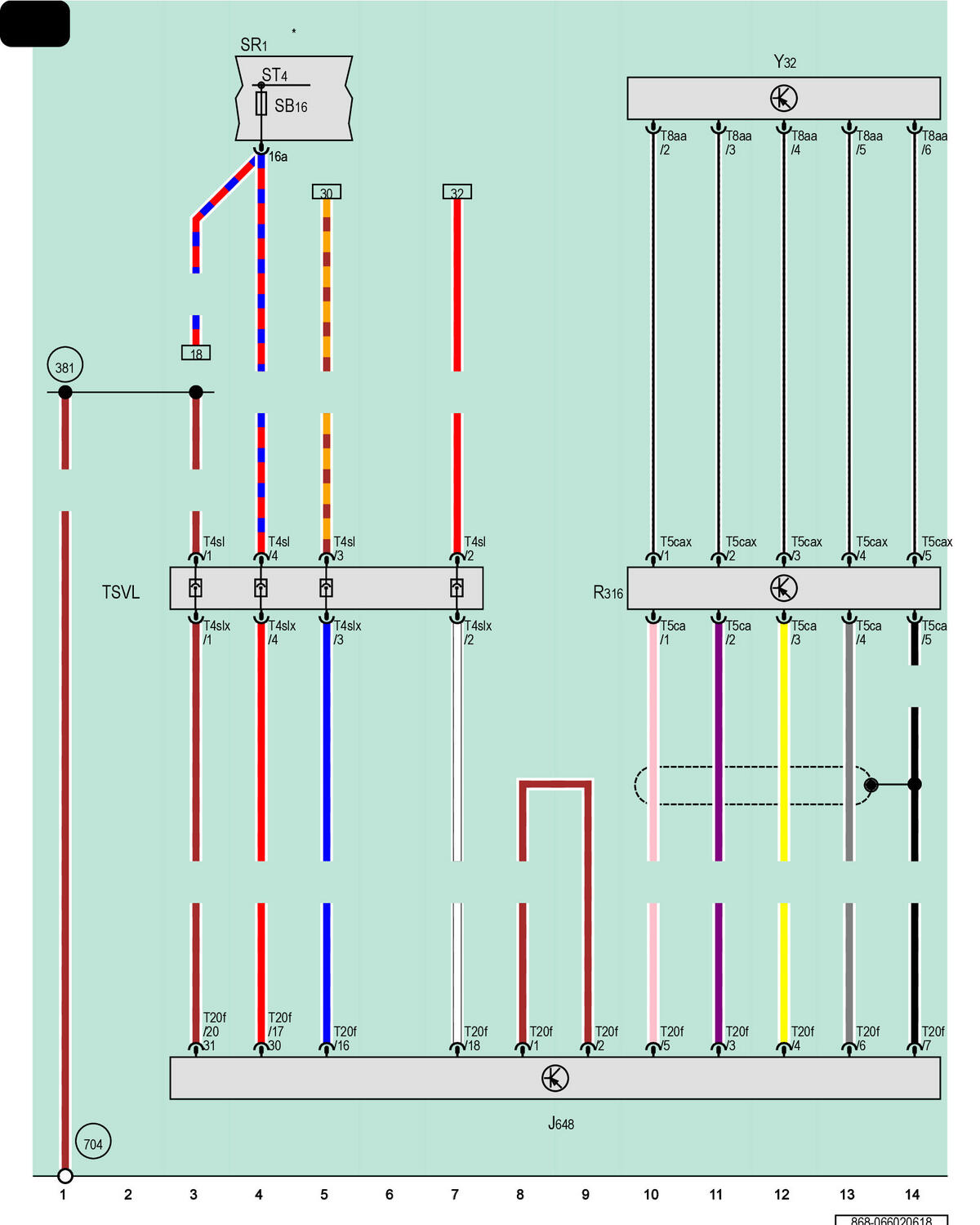

Left Rear Information Display Control Head Control Module, Left Front Seat Coupling Station, Multimedia Display Unit 4
J648
Left Rear Information Display Control Head Control Module
R316
Multimedia Display Unit 4 Bracket
SR1
Relay and Fuse Panel 1
ST4
Fuse Panel 4, Black
SB16
Fuse 16 (On Fuse Panel B)
T4sl
4-Pin Connector, Black
T4slx
4-Pin Connector, Black
T5ca
5-Pin Connector, Black
T5cax
5-Pin Connector, Black
T8aa
8-Pin Connector, Black
T20f
20-Pin Connector, Black
TSVL
Left Front Seat Coupling Station
Y32
Multimedia Display Unit 4
381
Ground Connection 16 (in Main Wiring Harness)
704
Ground Connection 2 Under Driver Seat
*
Refer to Applicable Wiring Diagram for Fuse Positions
