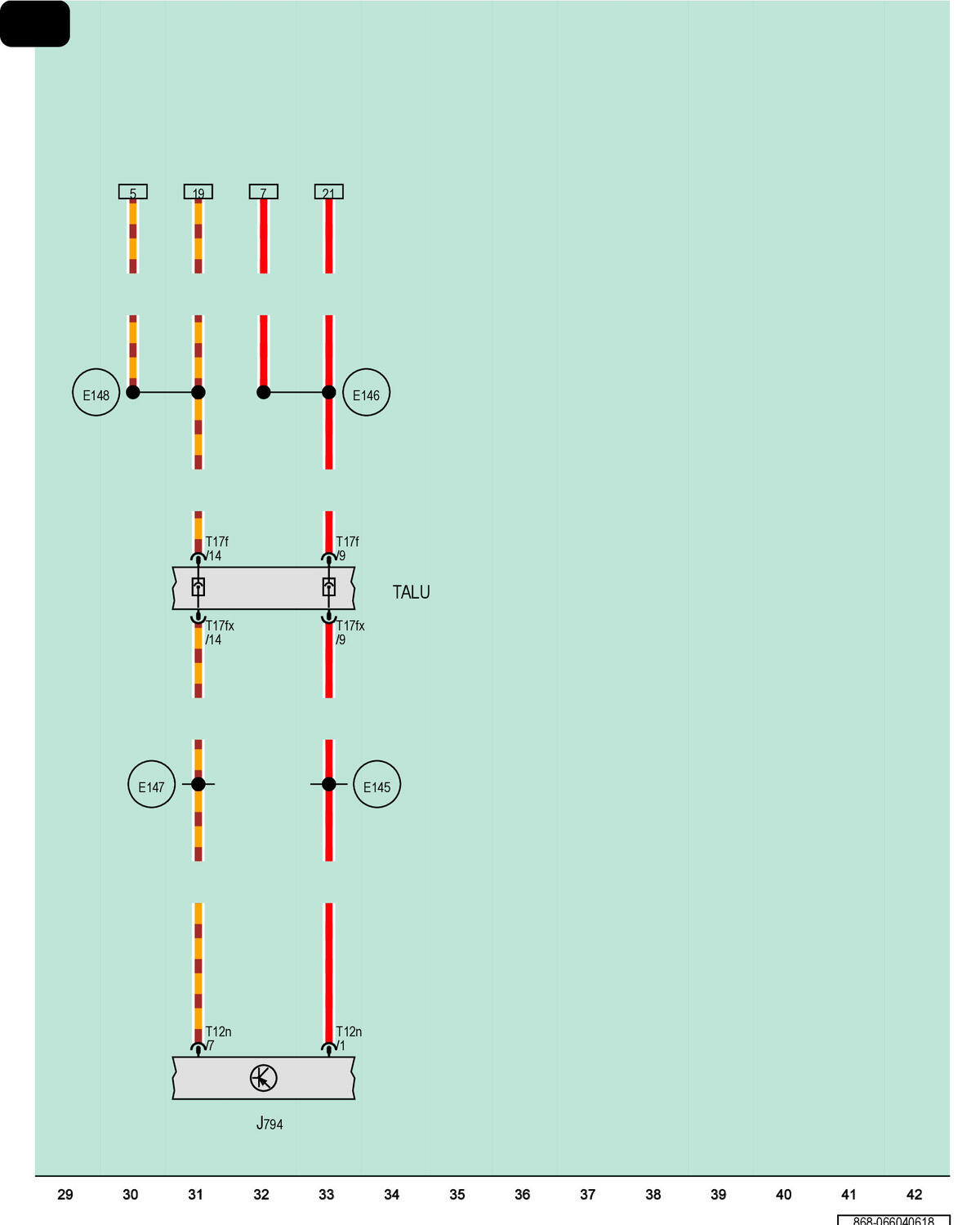

Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

T12n

12-Pin Connector, Gray

T17f

17-Pin Connector, Red

T17fx

17-Pin Connector, Red

TALU

Coupling Point on Left A-Pillar, Bottom

E145

Connection 1 (CAN Bus Information Electronics Control Module 1, High)

E146

Connection 2 (CAN Bus Information Electronics Control Module 1, High)

E147

Connection 1 (CAN Bus Information Electronics Control Module 1, Low)

E148

Connection 2 (CAN Bus Information Electronics Control Module 1, Low)
