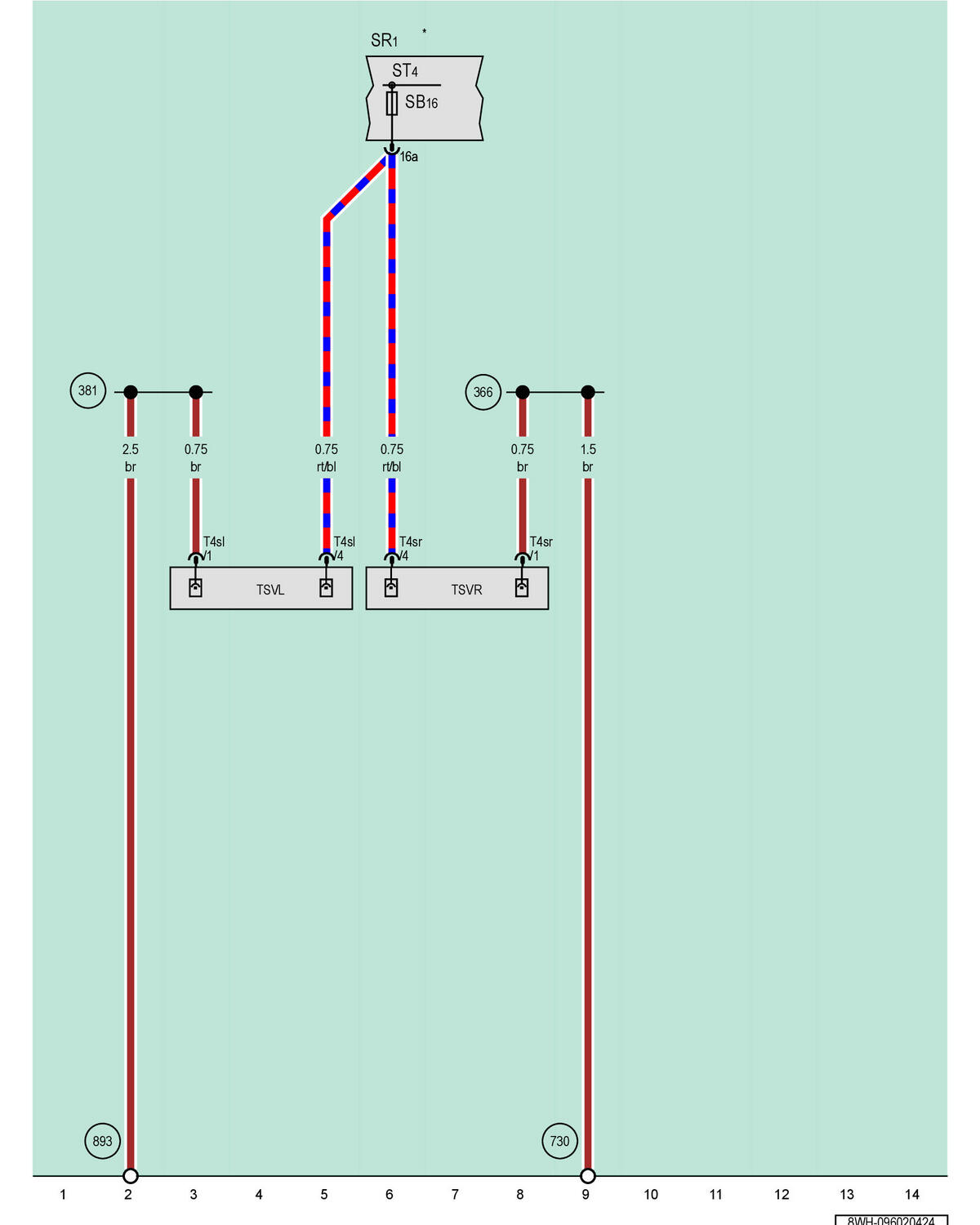

Left Front Seat Coupling Station, Right Front Seat Coupling Station
SR1
Relay and Fuse Panel 1
ST4
Fuse Panel 4, Black
SB16
Fuse 16 (On Fuse Panel B)
T4sl
4-Pin Connector, Black
T4sr
4-Pin Connector, Black
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
366
Ground Connection 1 (in Main Wiring Harness)
381
Ground Connection 16 (in Main Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
893
Ground Connection 2 on Left B-Pillar
*
Refer to Applicable Wiring Diagram for Fuse Positions
