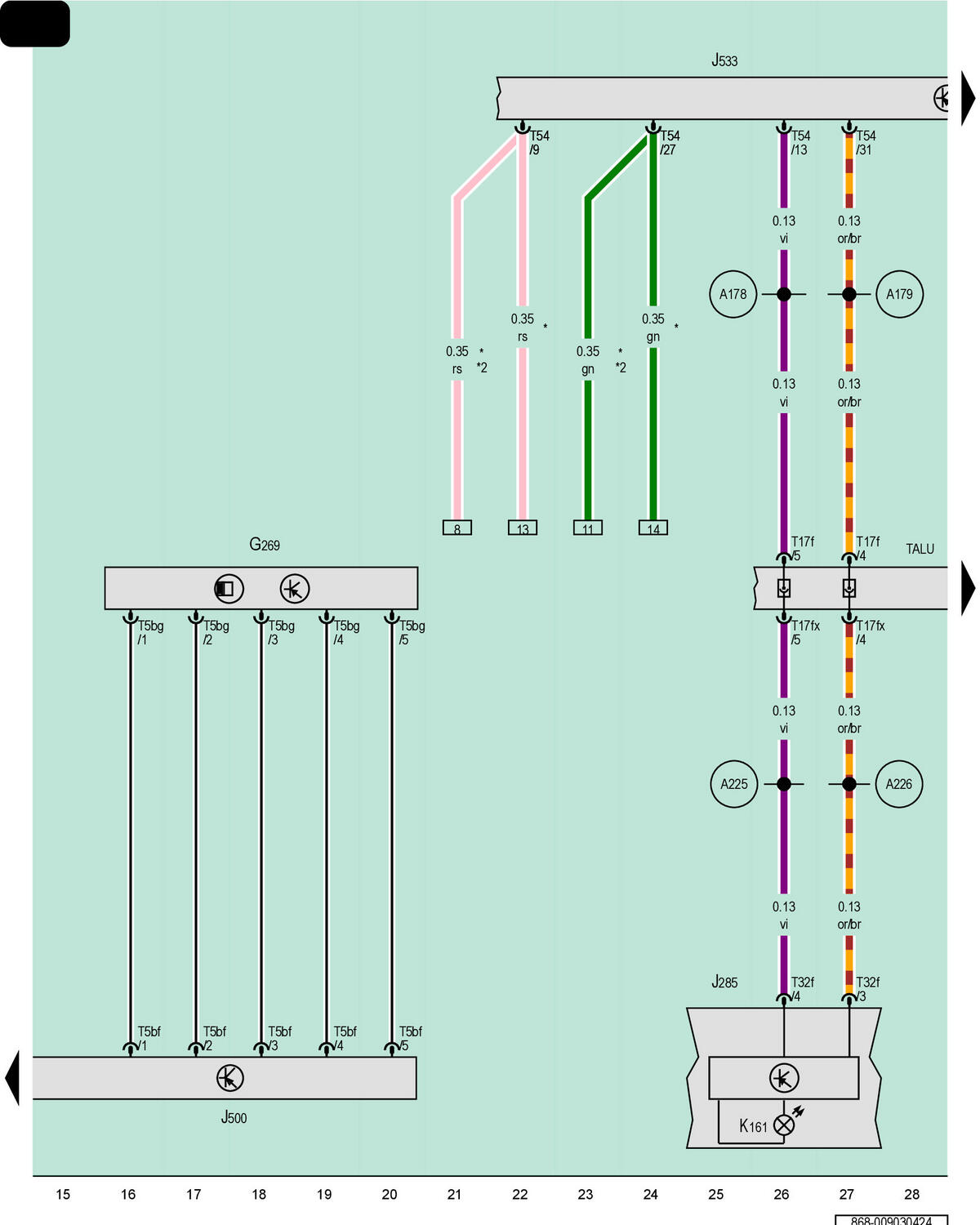

Steering Torque Sensor, Power Steering Control Module, Data Bus On Board Diagnostic Interface, Electromechanical Power Steering Indicator Lamp
G269
Steering Torque Sensor
J285
Instrument Cluster Control Module
J500
Power Steering Control Module
J533
Data Bus on Board Diagnostic Interface
K161
Electromechanical Power Steering Indicator Lamp
T5bf
5-Pin Connector, Black
T5bg
5-Pin Connector, Black
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T32f
32-Pin Connector, Gray
T54
54-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
A225
Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A226
Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
*
Data Bus Wire (Flexray Bus)
*2
For Vehicles with a Manual Transmission
