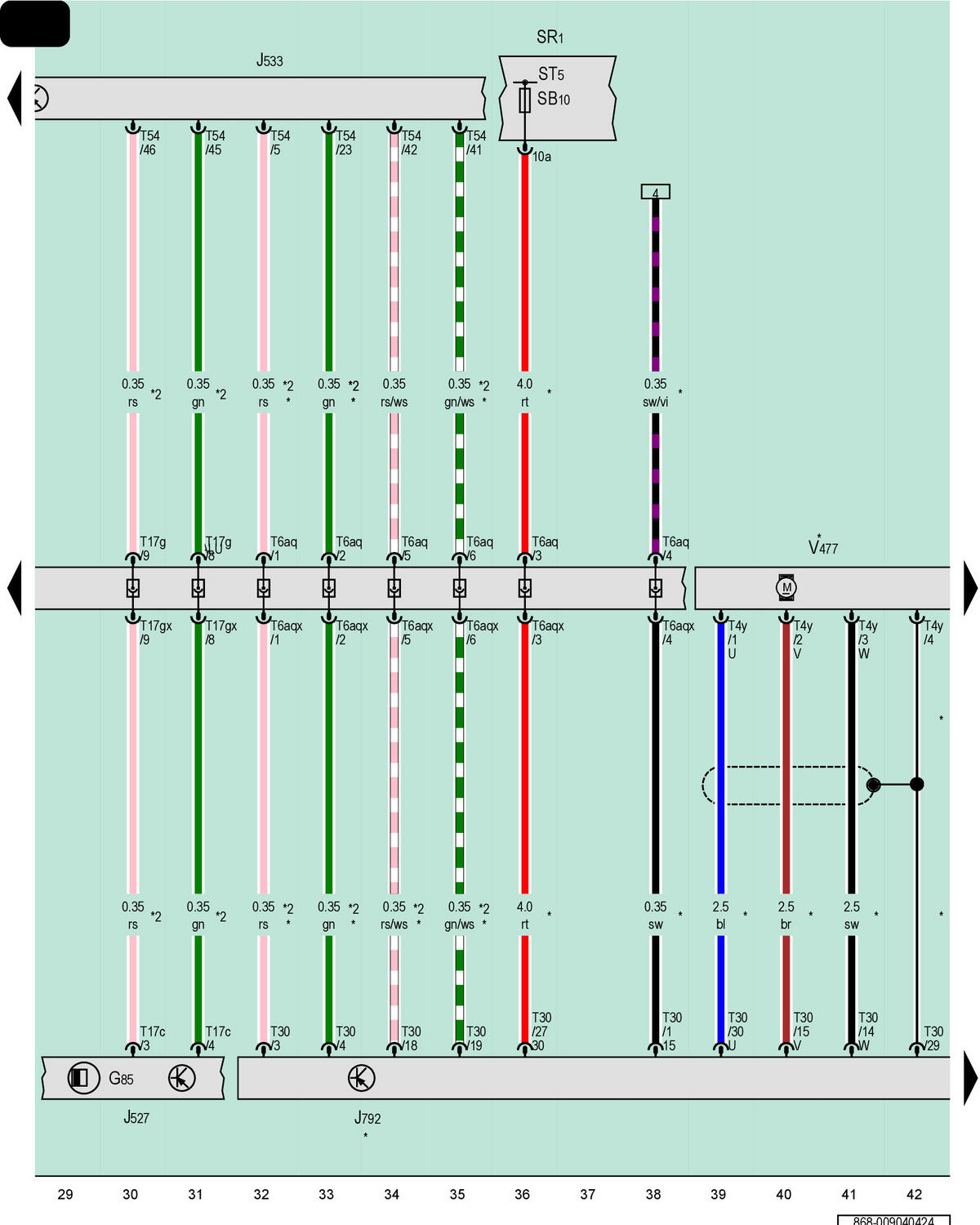

Steering Angle Sensor, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Active Steering Control Module, Active Steering Motor

Courtesy of AUDI OF AMERICA, LLC

G85

Steering Angle Sensor

J527

Steering Column Electronics Control Module

J533

Data Bus on Board Diagnostic Interface

J792

Active Steering Control Module

SR1

Relay and Fuse Panel 1

ST5

Fuse Panel 5, Red

SB10

Fuse 10 (On Fuse Panel B)

T4y

4-Pin Connector, Black

T6aq

6-Pin Connector, Green

T6aqx

6-Pin Connector, Green

T17c

17-Pin Connector, Yellow

T17g

17-Pin Connector, Blue

T17gx

17-Pin Connector, Blue

T30

30-Pin Connector, Black

T54

54-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

V477

Active Steering Motor

*

For Vehicles with Active Steering

*2

Data Bus Wire (Flexray Bus)
