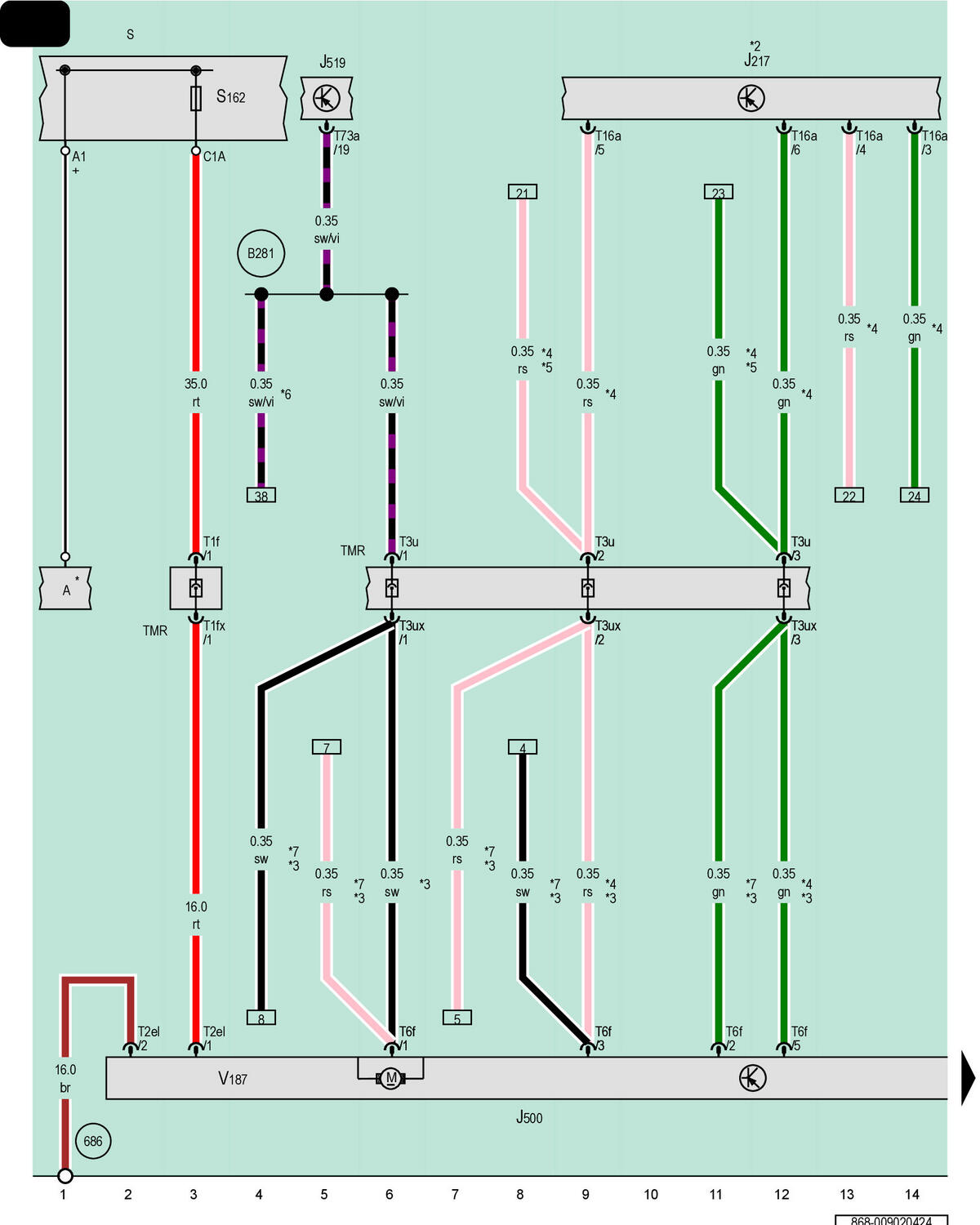

Power Steering Control Module, Electromechanical Power Steering Motor
A
Battery
J217
Transmission Control Module
J500
Power Steering Control Module
J519
Vehicle Electrical System Control Module
S
Fuses (On Fuse Panel)
S162
Fuse 1 (Terminal 30) on Battery Fuse Panel, On the Battery Fuse Panel
T1f
1-Pin Connector, Black
T1fx
1-Pin Connector, Black
T2el
2-Pin Connector, Black
T3u
3-Pin Connector, Black
T3ux
3-Pin Connector, Black
T6f
6-Pin Connector, Black
T16a
16-Pin Connector, Black
T73a
73-Pin Connector, Black
TMR
Coupling Point in Engine/Motor Compartment, Right
V187
Electromechanical Power Steering Motor
686
Ground Connection 2 on Right Front Longitudinal Member
B281
Positive Connection 5 (15a) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Refer to Applicable Wiring Diagram for Automatic Transmission
*3
Depending on Equipment
*4
Data Bus Wire (Flexray Bus)
*5
For Vehicles with a Manual Transmission
*6
For Vehicles with Active Steering
*7
From December 2023
