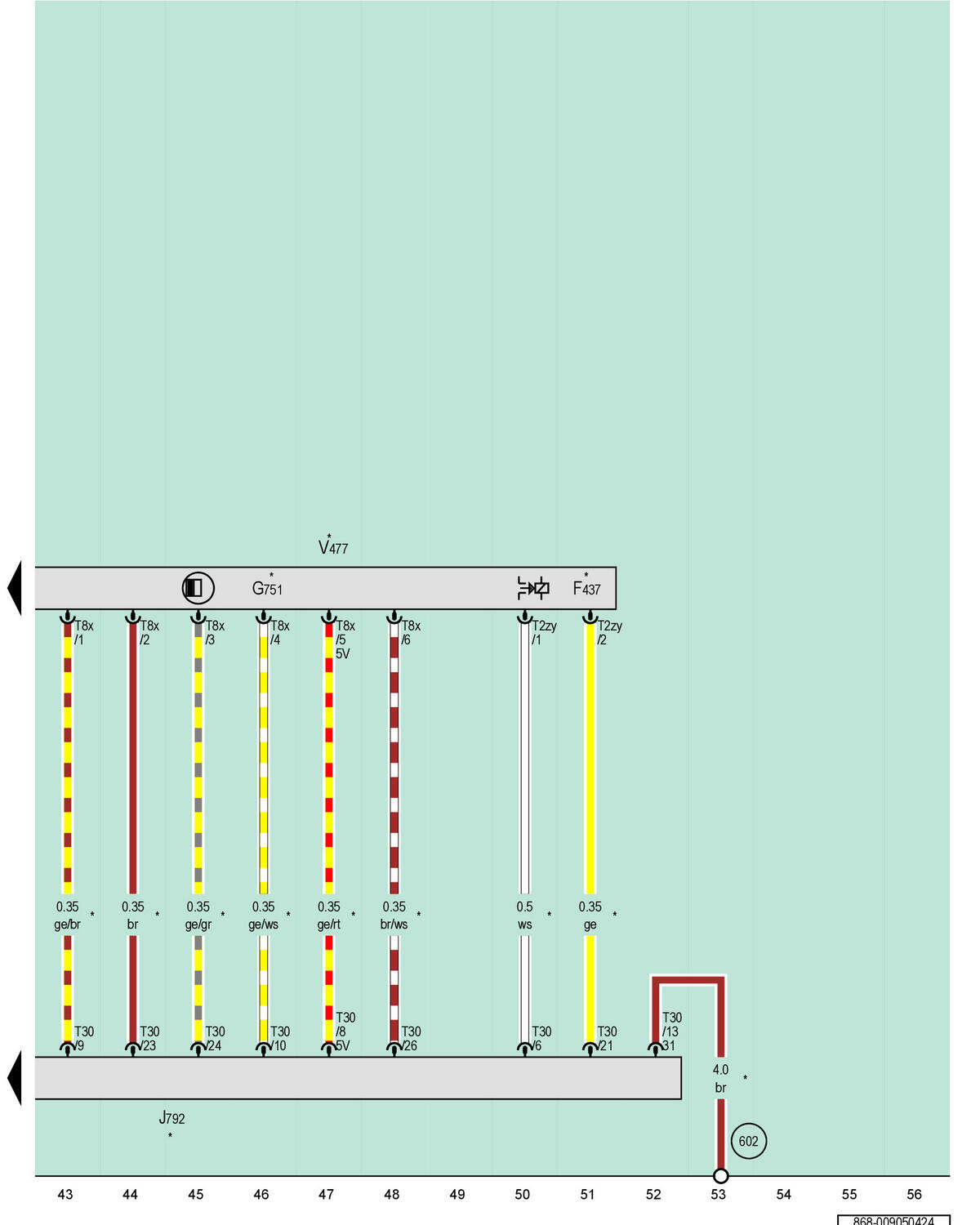

Active Steering Safety Lock Actuator, Active Steering Motor Rotor Position Sensor, Active Steering Control Module, Active Steering Motor

Courtesy of AUDI OF AMERICA, LLC

F437

Active Steering Safety Lock Actuator

G751

Active Steering Motor Rotor Position Sensor

J792

Active Steering Control Module

T2zy

2-Pin Connector, Black

T8x

8-Pin Connector, Black

T30

30-Pin Connector, Black

V477

Active Steering Motor

602

Ground Connection in Left Front Footwell

*

For Vehicles with Active Steering
