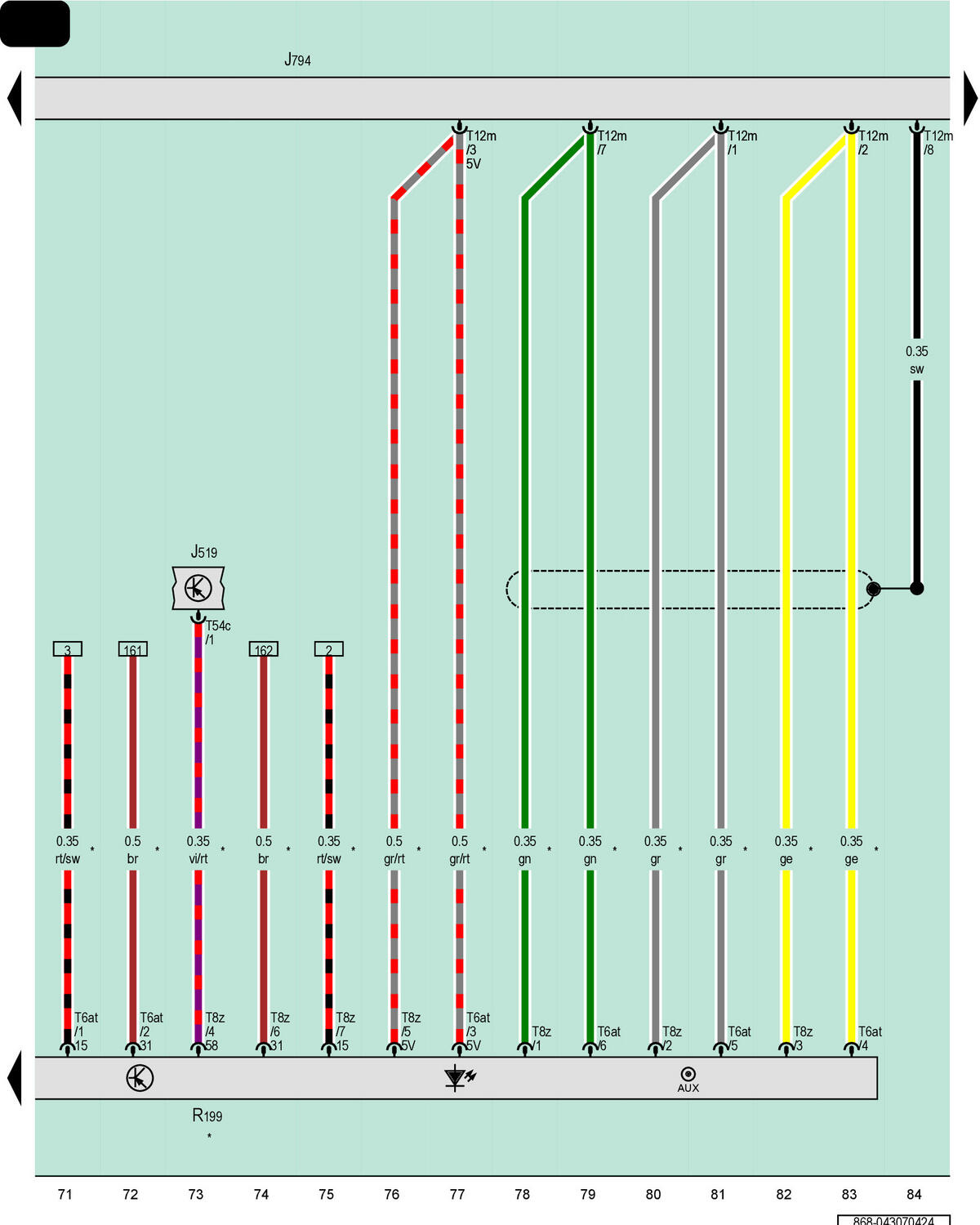

Vehicle Electrical System Control Module, Information Electronics Control Module 1, External Audio Source Connection

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J794

Information Electronics Control Module 1

R199

External Audio Source Connection

T6at

6-Pin Connector, Black

T8z

8-Pin Connector, Black

T12m

12-Pin Connector, Green

T54c

54-Pin Connector, Black

*

Depending on Equipment
