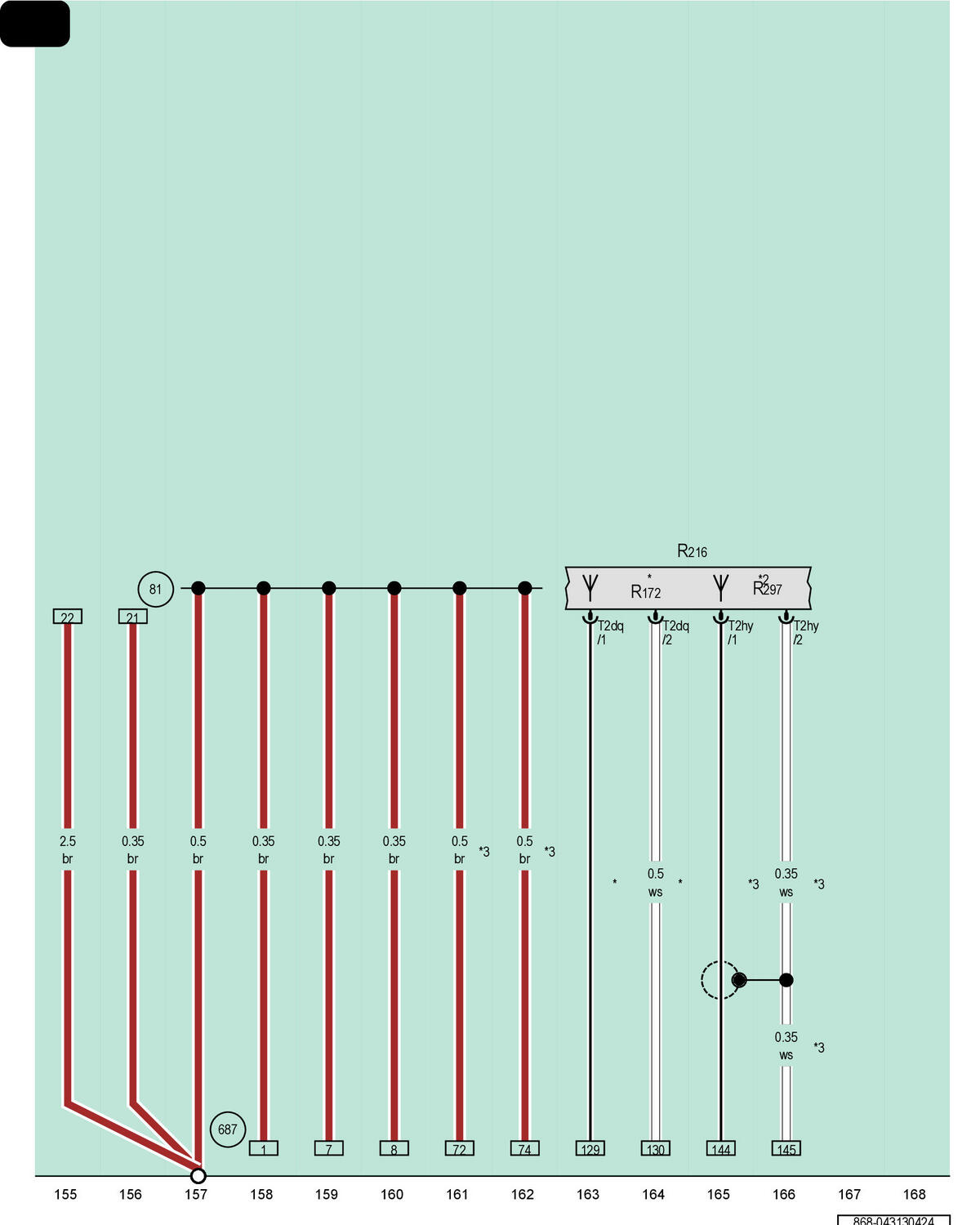

Satellite Tuner Antenna, Roof Antenna

Courtesy of AUDI OF AMERICA, LLC

R172

Satellite Tuner Antenna

R216

Roof Antenna

R297

LTE Antenna 1

T2dq

2-Pin Connector, Green

T2hy

2-Pin Connector, Purple

81

Ground Connection 1 (in Instrument Panel Wiring Harness)

687

Ground Connection 1 on Center Tunnel

*

For Vehicles with Satellite Radio

*2

For Vehicles with Mobile Online Services

*3

Depending on Equipment
