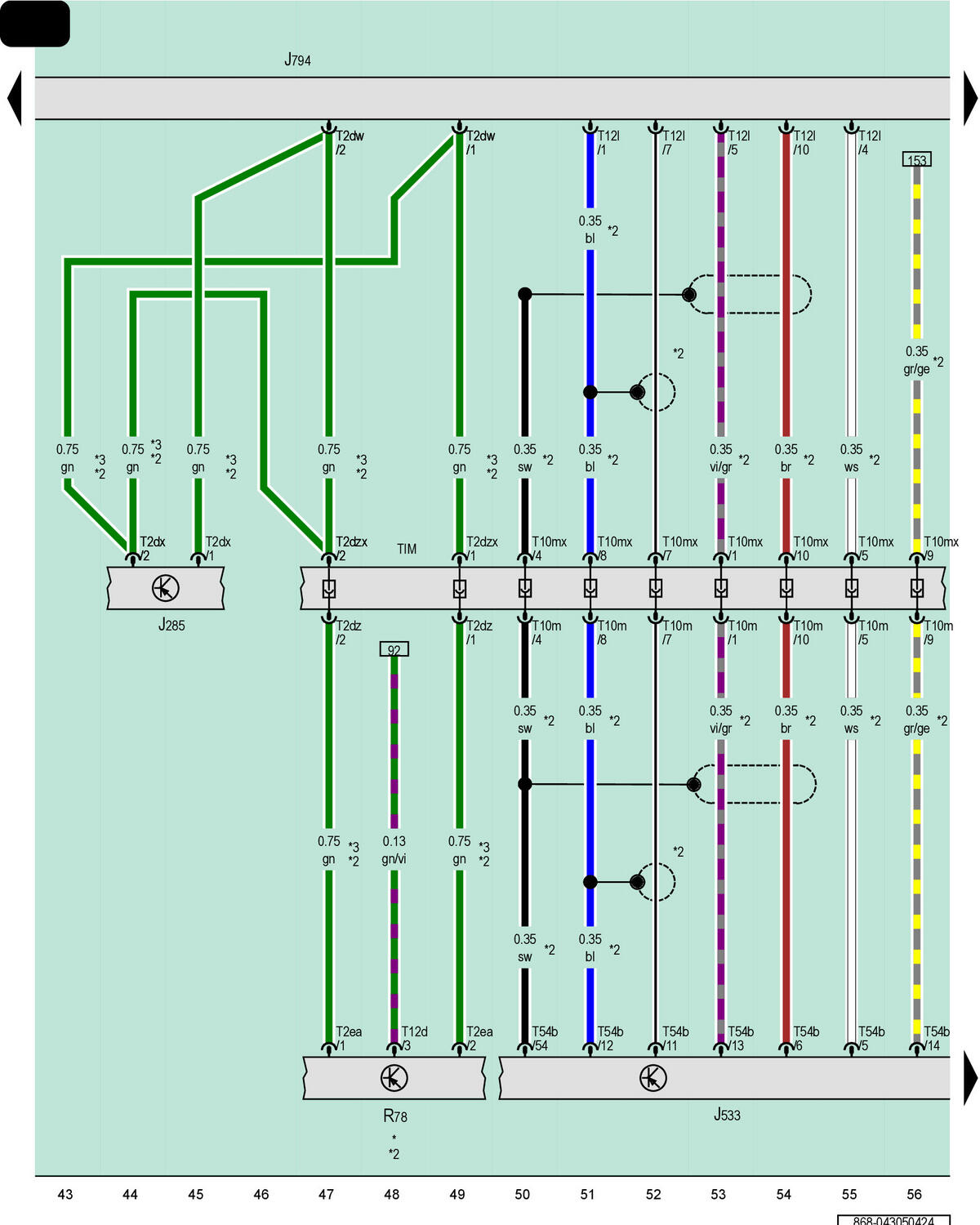

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, TV Tuner

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

R78

TV Tuner

T2dw

2-Pin Connector, Black

T2dx

2-Pin Connector, Black

T2dz

2-Pin Connector, Black

T2dzx

2-Pin Connector, Black

T2ea

2-Pin Connector, Black

T10m

10-Pin Connector, Black

T10mx

10-Pin Connector, Black

T12d

12-Pin Connector, Black

T12l

12-Pin Connector, Blue

T54b

54-Pin Connector, Blue

TIM

Coupling Point in Interior, Center

*

Refer to the Applicable TV Tuner Wiring Diagram

*2

Depending on Equipment

*3

Fiber Optic Cable
