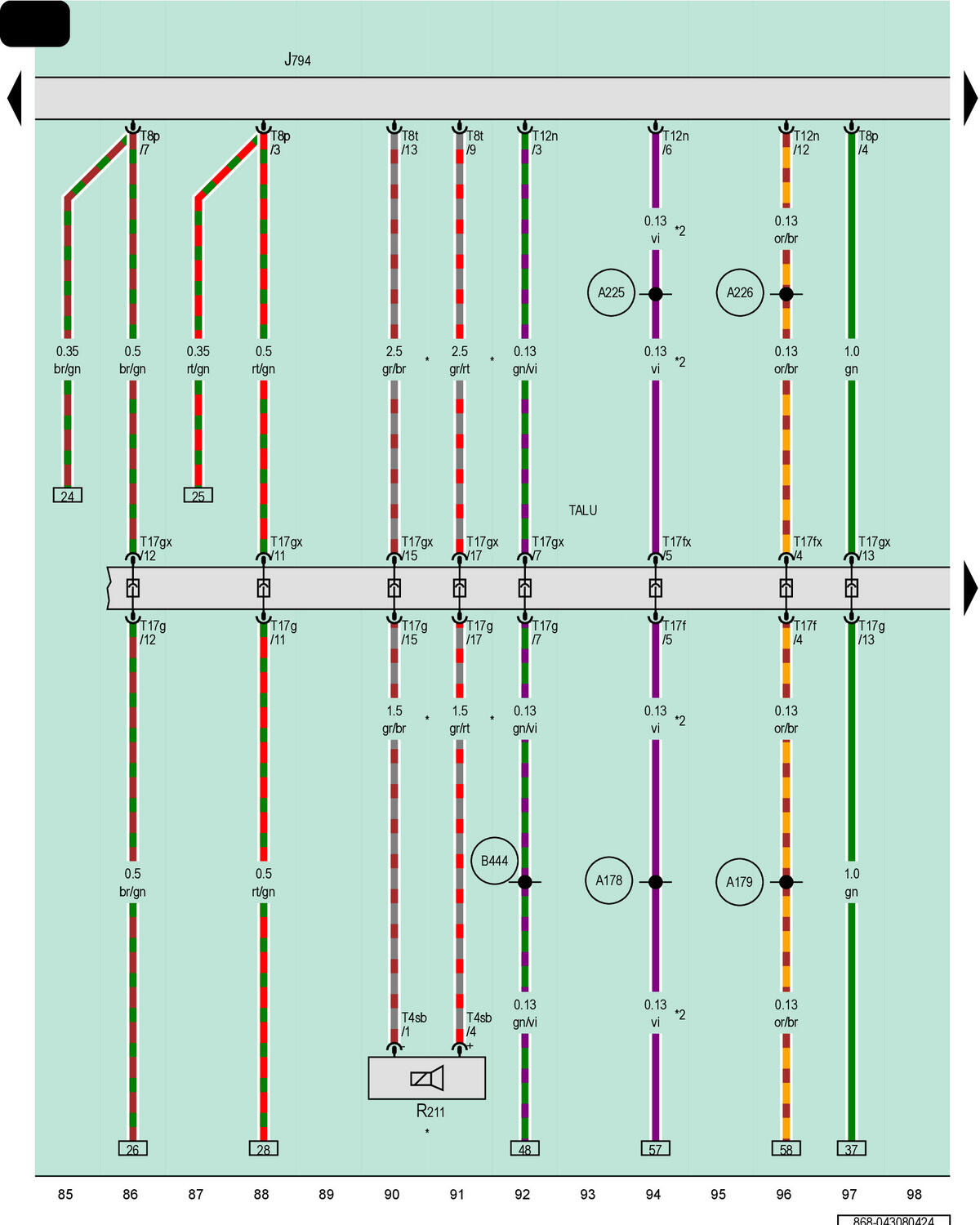

Information Electronics Control Module 1, Subwoofer
J794
Information Electronics Control Module 1
R211
Subwoofer
T4sb
4-Pin Connector, Black
T8p
8-Pin Connector, Brown
T8t
8-Pin Connector, Black
T12n
12-Pin Connector, Gray
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T17g
17-Pin Connector, Blue
T17gx
17-Pin Connector, Blue
TALU
Coupling Point on Left A-Pillar, Bottom
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
A225
Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A226
Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
B444
OBD Connection 1 (in Main Wiring Harness)
*
For Vehicles with Amplified Speakers
*2
Different Wire Color Possible
