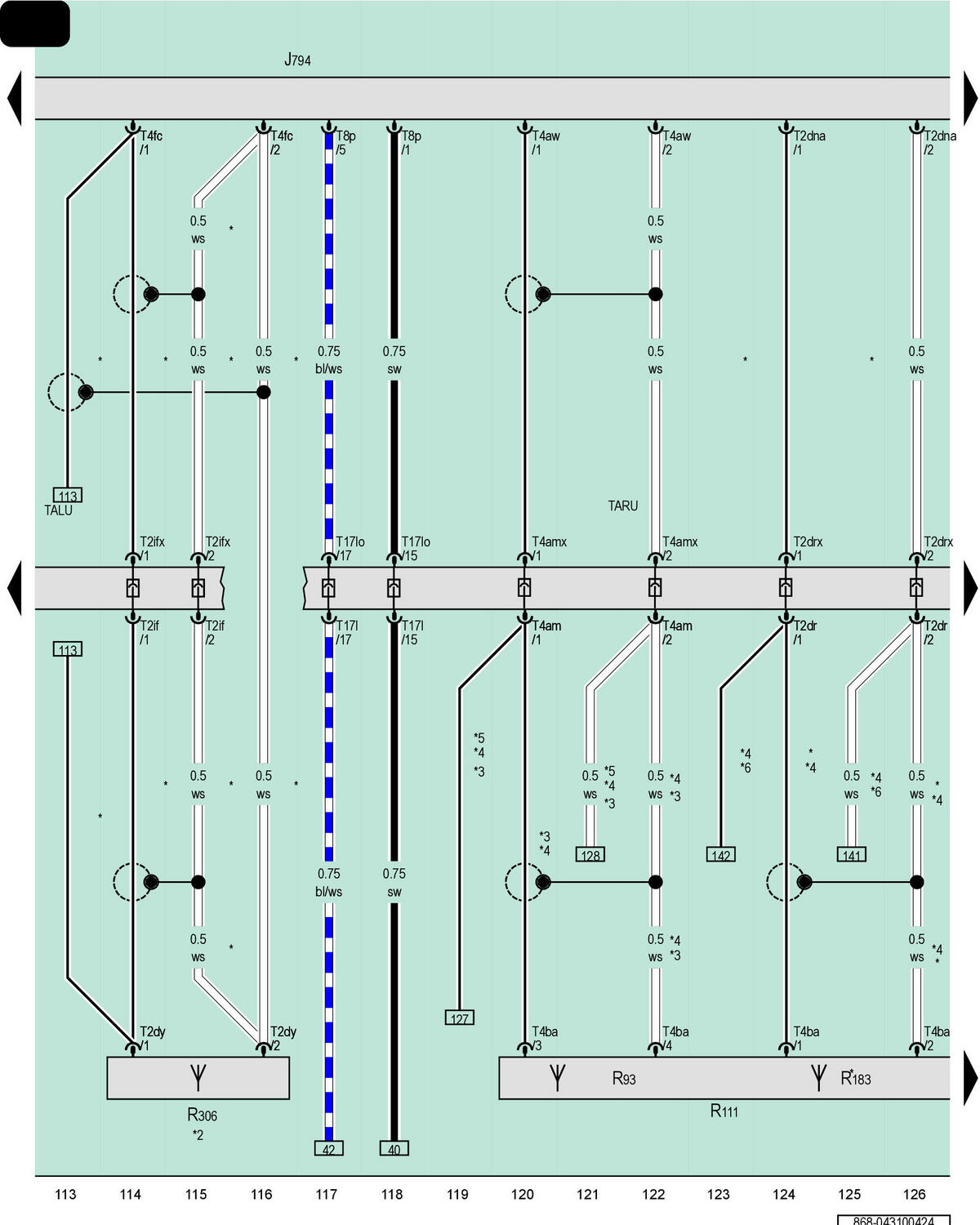

Information Electronics Control Module 1, Radio Antenna 2, Antenna Amplifier 2, Digital Radio Antenna
J794
Information Electronics Control Module 1
R93
Radio Antenna 2
R111
Antenna Amplifier 2
R183
Digital Radio Antenna
R306
LTE Antenna 2, Behind the Left Rear Bumper, Under the Rear Shelf, In the Left Side Window, In the Instrument Panel
T2dna
2-Pin Connector, Black
T2dr
2-Pin Connector, Black
T2drx
2-Pin Connector, Black
T2dy
2-Pin Connector, Purple
T2if
2-Pin Connector, Purple
T2ifx
2-Pin Connector, Purple
T4am
4-Pin Connector, White
T4amx
4-Pin Connector, White
T4aw
4-Pin Connector, White
T4ba
4-Pin Connector, Naturally Cloudy
T4fc
4-Pin Connector, Purple
T8p
8-Pin Connector, Brown
T17l
17-Pin Connector, Green
T17lo
17-Pin Connector, Green
TALU
Coupling Point on Left A-Pillar, Bottom
TARU
Coupling Point on Right A-Pillar, Bottom
*
Depending on Equipment
*2
For Vehicles with Mobile Online Services
*3
For Vehicles Without TV Reception
*4
For Vehicles with Digital Radio
*5
For Vehicles with Japan Equipment
*6
Avant
