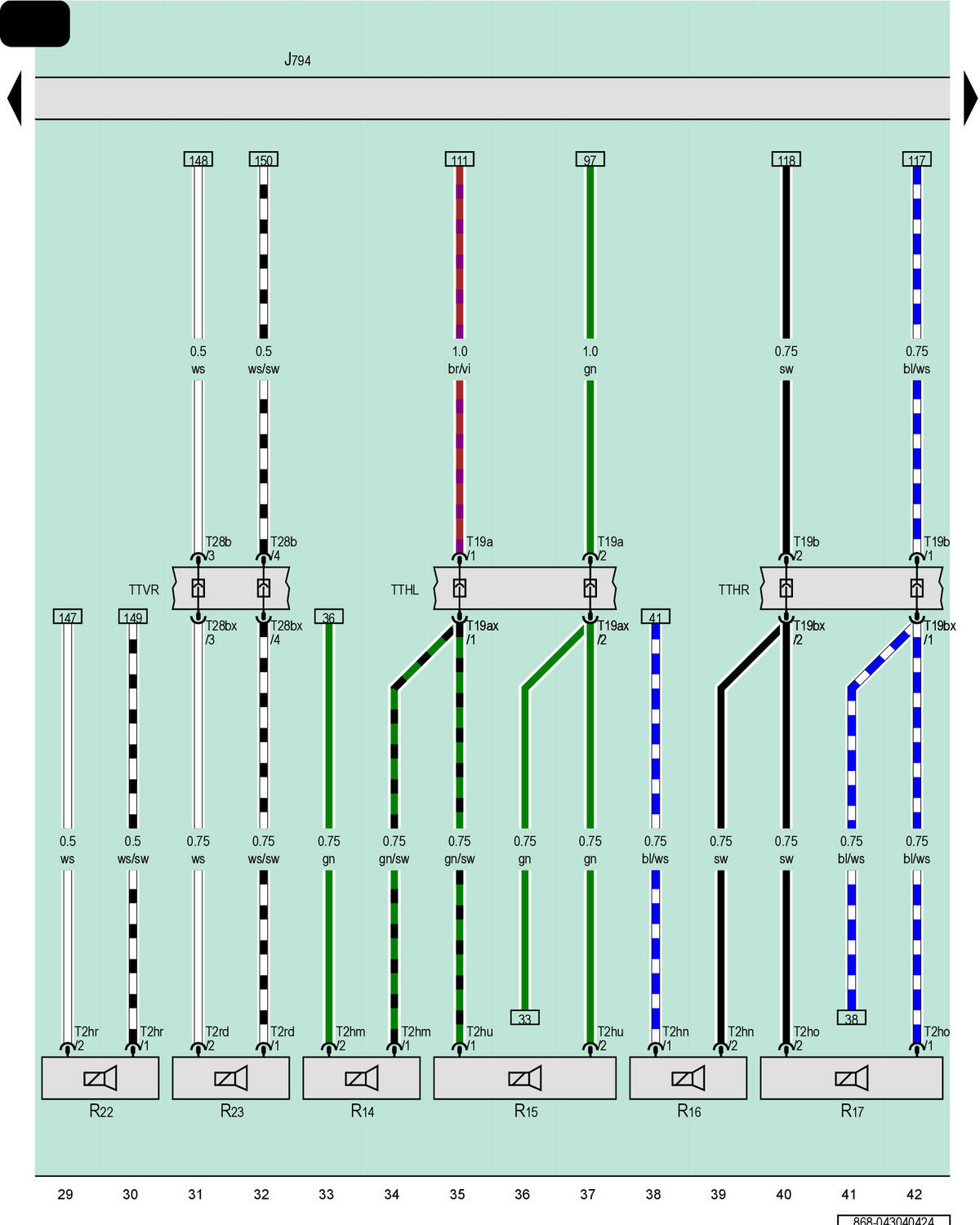

Information Electronics Control Module 1, Left Rear Treble Speaker, Left Rear Bass Speaker, Right Rear Treble Speaker, Right Rear Bass Speaker, Right Front Treble Speaker, Right Front Bass Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R14

Left Rear Treble Speaker

R15

Left Rear Bass Speaker

R16

Right Rear Treble Speaker

R17

Right Rear Bass Speaker

R22

Right Front Treble Speaker

R23

Right Front Bass Speaker

T2hm

2-Pin Connector, Black

T2hn

2-Pin Connector, Black

T2ho

2-Pin Connector, Black

T2hr

2-Pin Connector, Blue

T2hu

2-Pin Connector, Black

T2rd

2-Pin Connector, Black

T19a

19-Pin Connector, Black

T19ax

19-Pin Connector, Black

T19b

19-Pin Connector, Black

T19bx

19-Pin Connector, Black

T28b

28-Pin Connector, Black

T28bx

28-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

TTHR

Right Rear Door Coupling Point

TTVR

Right Front Door Coupling Point
