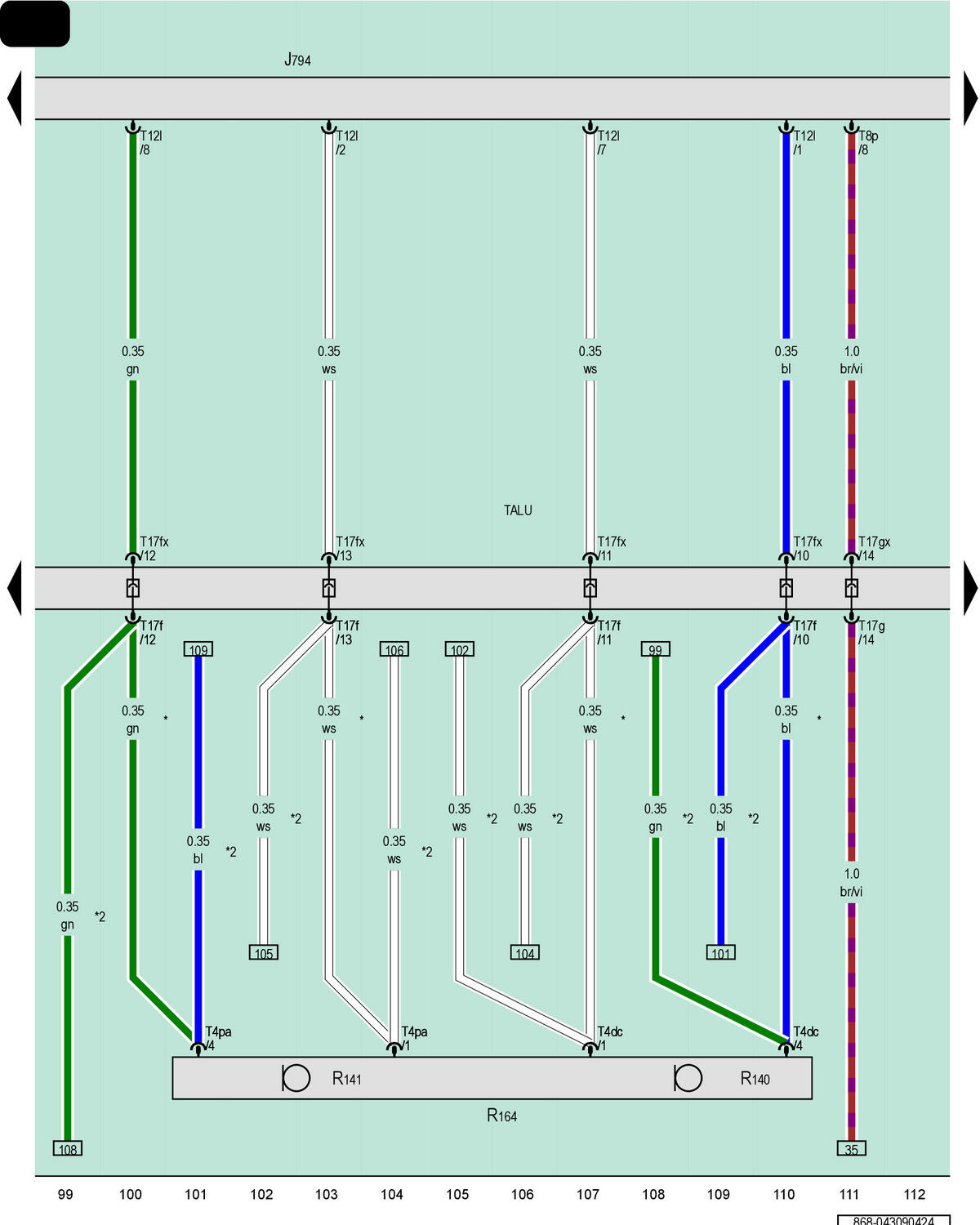

Information Electronics Control Module 1, Left Front Microphone, Right Front Microphone, Microphone Unit In Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R140

Left Front Microphone

R141

Right Front Microphone

R164

Microphone Unit in Front Roof Module

T4dc

4-Pin Connector, Gray

T4pa

4-Pin Connector, Blue

T8p

8-Pin Connector, Brown

T12l

12-Pin Connector, Blue

T17f

17-Pin Connector, Red

T17fx

17-Pin Connector, Red

T17g

17-Pin Connector, Blue

T17gx

17-Pin Connector, Blue

TALU

Coupling Point on Left A-Pillar, Bottom

*

For LHD Vehicles

*2

For RHD Vehicles
