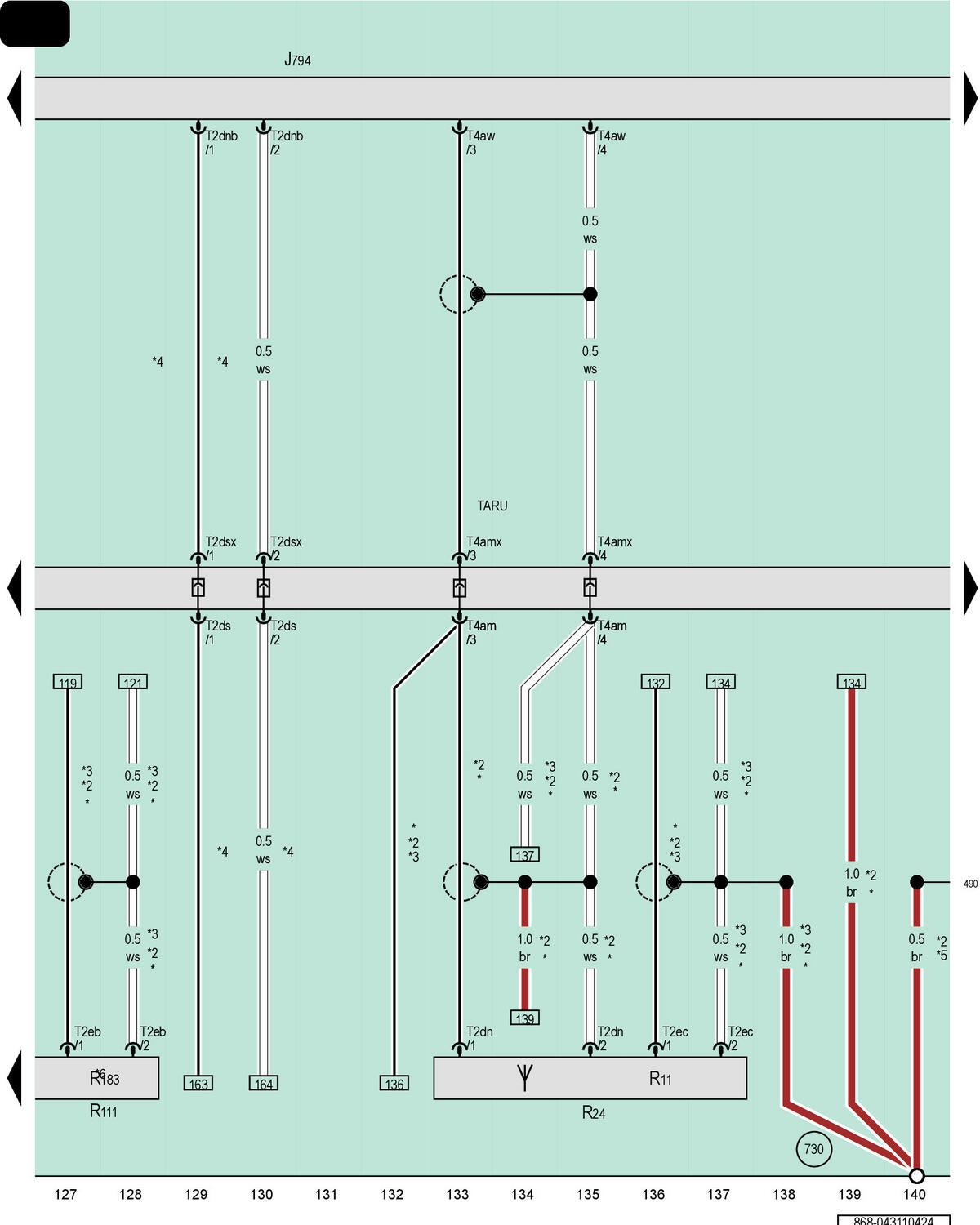

Information Electronics Control Module 1, Antenna, Antenna Amplifier, Antenna Amplifier 2, Digital Radio Antenna

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R11

Antenna

R24

Antenna Amplifier

R111

Antenna Amplifier 2

R183

Digital Radio Antenna

T2dn

2-Pin Connector, White

T2dnb

2-Pin Connector, Brown

T2ds

2-Pin Connector, Brown

T2dsx

2-Pin Connector, Brown

T2eb

2-Pin Connector, Naturally Cloudy

T2ec

2-Pin Connector, Purple

T4am

4-Pin Connector, White

T4amx

4-Pin Connector, White

T4aw

4-Pin Connector, White

TARU

Coupling Point on Right A-Pillar, Bottom

730

Ground Connection 1 on Right Rear Wheel Housing

*

For Vehicles Without TV Reception

*2

For Vehicles with Digital Radio

*3

For Vehicles with Japan Equipment

*4

For Vehicles with Satellite Radio

*5

Avant

*6

Depending on Equipment
