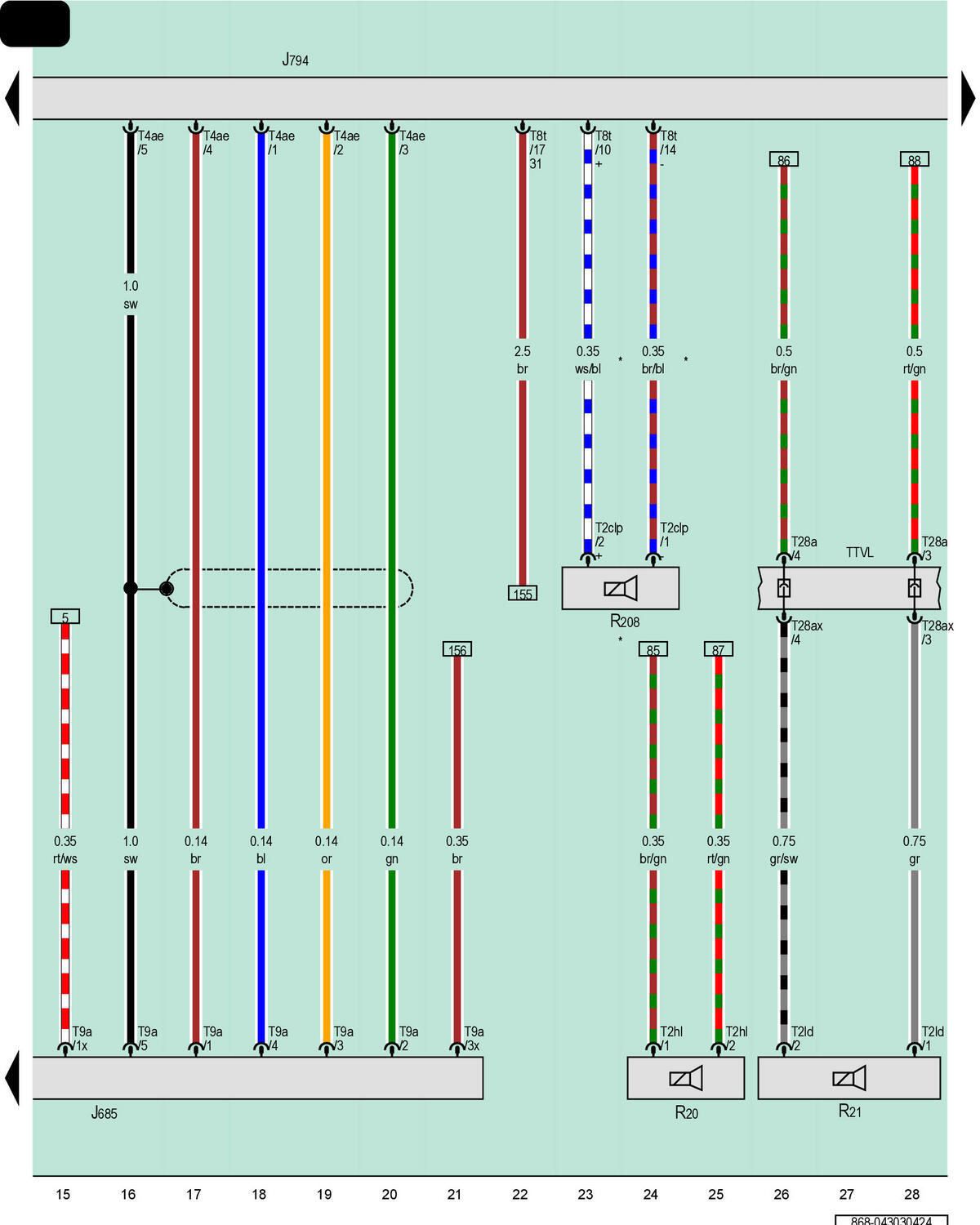

Front Information Display Control Head, Information Electronics Control Module 1, Left Front Treble Speaker, Left Front Bass Speaker, Center Speaker

Courtesy of AUDI OF AMERICA, LLC

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

R20

Left Front Treble Speaker

R21

Left Front Bass Speaker

R208

Center Speaker

T2clp

2-Pin Connector, Black

T2hl

2-Pin Connector, Blue

T2ld

2-Pin Connector, Black

T4ae

4-Pin Connector, Purple

T8t

8-Pin Connector, Black

T9a

9-Pin Connector, Black

T28a

28-Pin Connector, Black

T28ax

28-Pin Connector, Black

TTVL

Left Front Door Coupling Point

*

For Vehicles with Amplified Speakers
