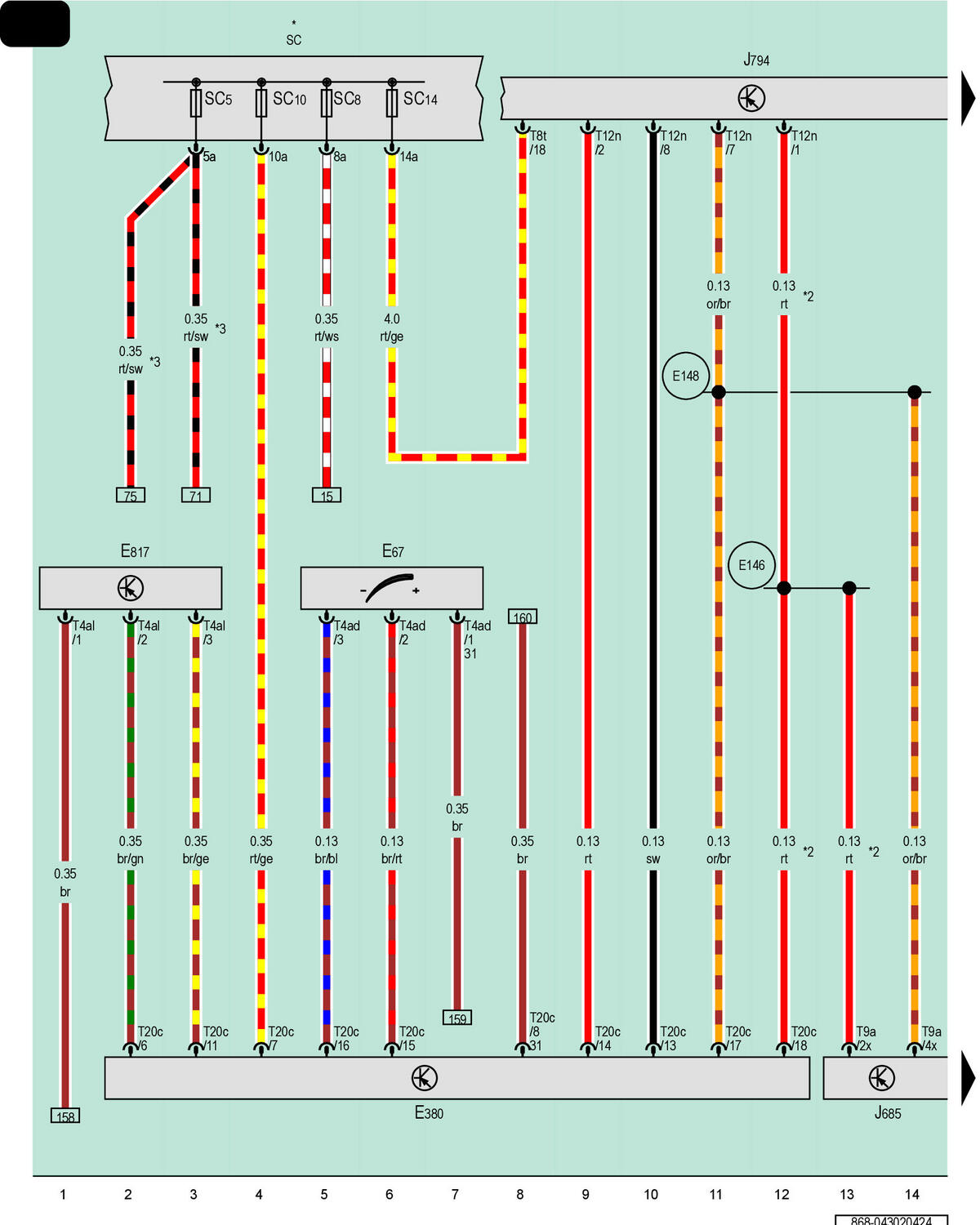

Driver Volume Control, Multimedia System Control Head, Multimedia Button Module, Front Information Display Control Head, Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

E67

Driver Volume Control

E380

Multimedia System Control Head

E817

Multimedia Button Module

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

SC

Fuse Panel C

SC5

Fuse 5 (On Fuse Panel C)

SC8

Fuse 8 (On Fuse Panel C)

SC10

Fuse 10 (On Fuse Panel C)

SC14

Fuse 14 (On Fuse Panel C)

T4ad

4-Pin Connector, Black

T4al

4-Pin Connector, Brown

T8t

8-Pin Connector, Black

T9a

9-Pin Connector, Black

T12n

12-Pin Connector, Gray

T20c

20-Pin Connector, Black

E146

Connection 2 (CAN Bus Information Electronics Control Module 1, High)

E148

Connection 2 (CAN Bus Information Electronics Control Module 1, Low)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Different Wire Color Possible

*3

Depending on Equipment
